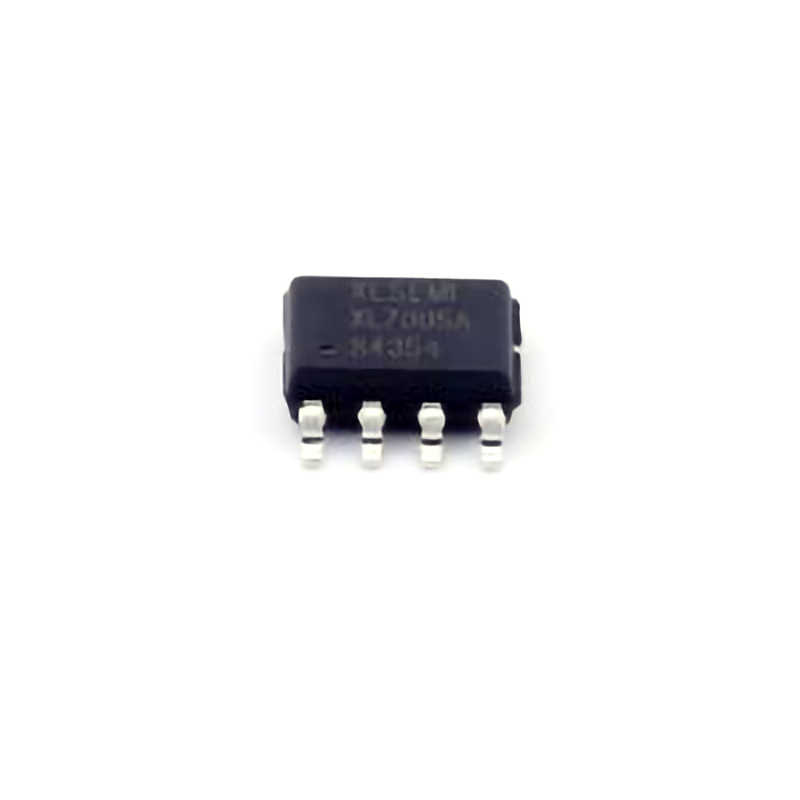

The XLS EMI XL7005A is a widely used precision voltage regulator, known for its reliability and performance. However, like any complex electronic component, it may encounter issues during use. This article delves into common troubleshooting problems and offers effective solutions to help you resolve these issues quickly and efficiently.
Identifying Common Problems with the XL7005A Voltage Regulator
The XL7005A is a versatile and robust voltage regulator commonly used in various applications requiring stable voltage supply. However, as with any electronic component, it may face issues over time or during initial implementation. Recognizing these problems quickly can save time, money, and ensure the longevity of the device. Below are some of the most common troubleshooting issues associated with the XL7005A and how to identify them.
1. No Output Voltage or Incorrect Output Voltage
One of the most common problems with the XL7005A is the absence of an output voltage or the regulation of an incorrect voltage level. There could be several reasons for this issue:
Cause 1: Input Voltage Too Low
The XL7005A requires a minimum input voltage above the specified dropout voltage to regulate properly. If the input voltage is lower than required, it will fail to provide the correct output. Check the input voltage level using a multimeter and ensure it is within the recommended range (usually above 3V). If the input voltage is below the threshold, consider using a higher voltage supply.
Cause 2: Faulty Capacitors
The XL7005A typically requires input and output capacitor s to stabilize its operation. If these capacitors are damaged, missing, or incorrectly placed, the regulator may fail to maintain a steady output voltage. Make sure that both the input and output capacitors are the correct values and properly installed. For instance, a 10µF ceramic capacitor is commonly used for the input, and a 22µF or 47µF electrolytic capacitor is recommended for the output.
Cause 3: Short Circuit or Overload on the Output
A short circuit or excessive load on the output can cause the regulator to shut down or provide a low output voltage. Check the connected load and verify that it is within the specifications of the XL7005A. If the regulator is overloaded, consider reducing the current draw or adding a current-limiting resistor.
2. High Output Noise or Ripple
Excessive noise or ripple on the output voltage is another common issue with the XL7005A. This issue can affect the performance of sensitive electronic devices powered by the regulator.
Cause 1: Insufficient Filtering
If the input and output capacitors are not properly chosen or installed, the regulator’s output may exhibit high ripple. To minimize noise, ensure that you are using high-quality low ESR (Equivalent Series Resistance ) capacitors. Adding a small ceramic capacitor (0.1µF to 1µF) in parallel with the output capacitor can help to filter high-frequency noise.
Cause 2: Incorrect Grounding
Improper grounding can lead to ground loops, which can increase noise in the output. Ensure that the ground of the regulator is securely connected to the common ground of the circuit. A good grounding technique, such as using a single-point ground, can help to reduce noise.
3. Overheating of the XL7005A Regulator
Overheating is a critical issue that can lead to the failure of the XL7005A voltage regulator. The device has built-in thermal shutdown protection, but prolonged overheating may still damage the IC.
Cause 1: Excessive Load Current
If the load connected to the regulator draws more current than the XL7005A can handle, it will overheat. The XL7005A is typically rated for up to 500mA of continuous output current, depending on the input and output conditions. If your application requires more current, consider switching to a more powerful regulator, such as the XL7010 or XL7020, which offer higher current ratings.
Cause 2: Poor Heat Dissipation
Inadequate cooling can also cause the XL7005A to overheat. If the regulator is installed in an enclosed space with poor airflow, it may not be able to dissipate heat effectively. Consider adding a heatsink to the regulator or improving airflow in the vicinity of the regulator. For high-power applications, consider using external cooling methods like fans or heat sinks to help maintain safe operating temperatures.
4. Stability Issues or Oscillation
Stability problems such as oscillation can lead to erratic output behavior, causing fluctuations in the voltage.
Cause 1: Inadequate Decoupling Capacitors
Stability issues are often the result of insufficient or poorly chosen decoupling capacitors. The XL7005A requires both input and output capacitors to ensure stable operation. Check the values of these capacitors and consider adding a bypass capacitor (0.1µF) between the output pin and ground to reduce high-frequency oscillations.
Cause 2: Long PCB Traces
Long traces between the XL7005A regulator and its capacitors can create parasitic inductance, which can affect the stability of the voltage regulation. Try to keep the traces as short and thick as possible, especially between the regulator and the capacitors, to minimize any issues caused by parasitic inductance.
Effective Solutions for XL7005A Troubleshooting
In part one, we discussed common issues encountered with the XL7005A voltage regulator. Now, let’s look at some practical solutions to address these problems and get your regulator back to optimal performance.
1. Ensuring Proper Capacitor Selection and Installation
One of the most important aspects of maintaining a stable output from the XL7005A is using the correct capacitors. Capacitors not only filter noise but also help stabilize the regulator. Here’s how to ensure proper capacitor selection:
Input Capacitor: Typically, a 10µF ceramic capacitor with low ESR is recommended. If the input source is particularly noisy or far away from the regulator, increase the value to 22µF or 47µF for improved filtering.
Output Capacitor: The output capacitor should generally be between 22µF and 47µF (electrolytic or tantalum), and it’s essential to use a capacitor with low ESR to prevent instability.
Bypass Capacitors: Place a small ceramic capacitor (0.1µF to 1µF) between the regulator’s output pin and ground. This helps filter high-frequency noise and improves overall stability.
2. Improving Grounding and PCB Layout
Grounding plays a crucial role in ensuring proper operation of voltage regulators. Follow these tips to improve your grounding technique:
Single-Point Grounding: For best results, use a single-point ground, especially when working with analog and digital circuits simultaneously. This minimizes the potential for ground loops and reduces noise.
Short Traces: Keep traces between the XL7005A and its capacitors as short as possible to reduce parasitic inductance, which can affect stability. Use wider traces to reduce resistance and improve power delivery.
Ground Plane: Implement a ground plane in your PCB design to help minimize noise and ensure stable operation of the regulator.
3. Preventing Overheating
To prevent the XL7005A from overheating, consider the following strategies:
Current Limiting: Ensure that the load connected to the regulator does not exceed its rated current. If necessary, add a current-limiting circuit to prevent excessive current draw.
Improving Cooling: If your design requires higher current than the XL7005A can handle, consider adding external heat dissipation methods, such as a heatsink or forced air cooling. In high-power applications, ensure adequate airflow around the regulator.
Thermal Shutdown Protection: If you notice the XL7005A is shutting down due to overheating, reduce the load or provide additional cooling. Check the thermal specifications in the datasheet to ensure you’re within safe operating conditions.
4. Testing and Monitoring Performance
After addressing the common issues, test the XL7005A thoroughly under various conditions. Use an oscilloscope to check for noise and ripple on the output. Monitor the regulator’s temperature during operation to ensure it is not overheating. Finally, measure the input and output voltages using a reliable multimeter to ensure that the regulator is performing within its specified voltage range.
5. Replacing Faulty Components
If the XL7005A continues to malfunction after performing the troubleshooting steps mentioned above, the IC itself may be faulty. In this case, replace the XL7005A with a new unit and carefully check the circuit design to ensure there are no underlying issues causing the failure.
By following these troubleshooting steps and solutions, you can effectively diagnose and resolve issues with the XL7005A voltage regulator, ensuring stable performance in your electronic circuits. Proper component selection, good grounding practices, and careful thermal management are essential to optimizing the XL7005A’s functionality.
