Understanding the XC7A200T-2FFG1156I and Common Issues

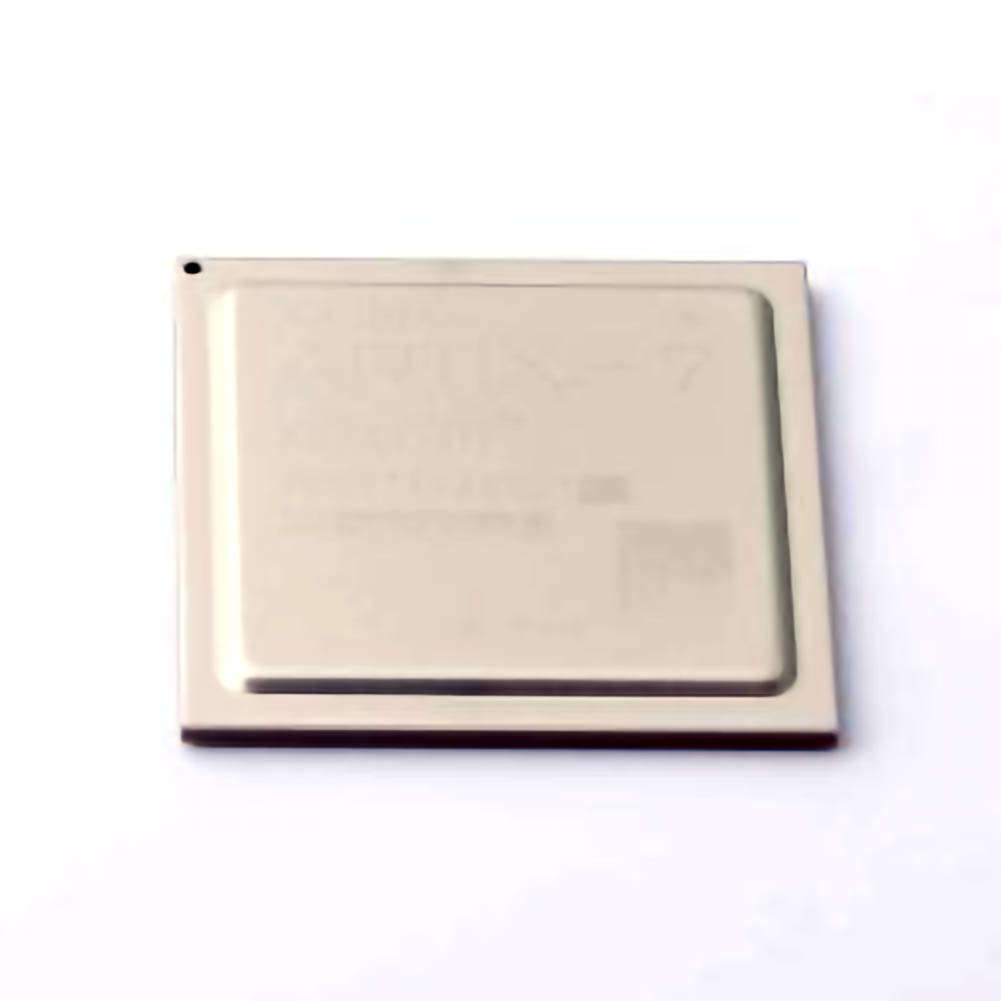

The XC7A200T-2FFG1156I is part of Xilinx’s Artix-7 family, offering a balance of high performance, low Power consumption, and flexibility for a variety of applications, including communications, automotive, industrial, and consumer electronics. The Artix-7 series is widely used for its cost-effectiveness and scalable capabilities, making it a popular choice among engineers. However, like any complex component, developers often encounter challenges during the design and implementation phases.
In this section, we will dive into the common troubleshooting issues that engineers may face when working with the XC7A200T-2FFG1156I and provide practical solutions to overcome them.
1. Power Supply Issues
Problem: A common issue encountered during FPGA design is improper power supply. FPGAs like the XC7A200T-2FFG1156I require precise and stable power levels to function properly. Power supply problems can manifest in various ways, including erratic behavior, malfunctioning peripherals, or failure to configure the FPGA.
Solution:
Ensure the correct voltage levels are applied to the FPGA. The XC7A200T requires 1.0V for the core and 3.3V for I/O. It’s crucial to use a reliable power supply with adequate current ratings for these requirements.
Double-check all power connections and verify that there are no short circuits or floating pins.
Use a multimeter or an oscilloscope to verify the stability and noise levels of the power rails. Excessive noise can lead to Timing errors or unpredictable behavior in the FPGA.
2. Configuration Failures
Problem: Configuration failures can occur when the FPGA doesn’t load the bitstream correctly. This is often due to incorrect configuration settings, problems with the configuration memory, or improper programming of the bitstream.
Solution:
Ensure that the FPGA’s configuration pins are correctly set. The XC7A200T supports multiple configuration methods such as JTAG, SPI, or SelectMAP. Make sure the configuration interface is correctly wired and configured in your design.
Verify that the bitstream file is correctly generated and matches the FPGA’s specifications (e.g., device part number, speed grade).
If using an external memory device for configuration, check the integrity of the memory (e.g., SPI Flash). Corrupted or faulty configuration files may prevent successful FPGA initialization.
3. Signal Integrity Issues
Problem: Signal integrity problems can cause a range of issues, from clock skew to data corruption. Since FPGAs like the XC7A200T-2FFG1156I can handle high-speed signals, maintaining clean, stable signal paths is critical.
Solution:
Proper PCB layout is essential. Ensure that the traces for high-speed signals, such as clocks or high-frequency data lines, are short and direct, with appropriate termination and impedance matching.
Use differential pairs for signals that require high-speed transmission, such as DDR or PCIe interfaces. This will help maintain signal integrity and reduce the chance of noise or reflections.
Avoid long or excessive via stubs in high-speed signal paths, as they can cause signal degradation.
4. Timing Violations
Problem: Timing violations, such as setup or hold violations, can lead to incorrect operation of the FPGA. These issues occur when the data signal doesn’t meet the required timing constraints relative to the clock signal.
Solution:
Review your design’s timing constraints carefully. The XC7A200T has a sophisticated clocking structure, and incorrect timing constraints can lead to violations.
Use the Xilinx Vivado Design Suite to analyze and optimize your design’s timing. Vivado provides tools like the Timing Analyzer to help you identify and fix setup and hold time violations.
Consider adjusting your clock architecture, such as adding additional clock buffers or using a different clock source, to alleviate timing violations.
5. Overheating
Problem: Overheating is a common issue when dealing with high-performance FPGAs. The XC7A200T is a relatively powerful FPGA, and if not adequately cooled, it can overheat, leading to reduced performance, instability, or permanent damage.
Solution:
Ensure that the FPGA is adequately cooled. This can include passive heatsinks, active fans, or other cooling solutions.
Make sure your PCB design incorporates enough vias and copper planes for heat dissipation.
Verify that the operating environment is within the recommended temperature range. Xilinx specifies an operating range for the XC7A200T-2FFG1156I from 0°C to 100°C. If the temperature exceeds this, consider adding additional cooling.
6. Incorrect Pin Assignment
Problem: Incorrect pin assignment is a relatively common issue in FPGA designs. If the pins are not assigned correctly in the Vivado constraints file (.xdc), the FPGA may not work as expected.
Solution:
Always double-check your pin assignments in the Vivado design constraints file. Cross-check these assignments with the hardware schematic to ensure that the correct pins are assigned to the correct functions.
If using external devices, ensure that the pin assignments for I/O, clocks, and power are correct and do not conflict with other components on the board.
Advanced Troubleshooting Techniques and Solutions
In this section, we will explore advanced troubleshooting techniques and solutions for the XC7A200T-2FFG1156I FPGA, particularly when dealing with more complex or difficult-to-diagnose issues.
7. FPGA Not Responding to External Devices
Problem: In some cases, the FPGA may not respond correctly to external devices, such as sensors, actuators, or communication module s. This can be frustrating when debugging.
Solution:
Start by checking the communication protocol between the FPGA and the external device. Ensure that the I/O signals are correctly connected and configured.
Use a logic analyzer to monitor the signals between the FPGA and the external device. This will help you identify any potential communication issues, such as mismatched baud rates, incorrect signal timing, or incorrect voltage levels.
If you’re using a high-speed interface (e.g., HDMI, PCIe), ensure that the signals are correctly synchronized and that the clock domains are appropriately managed.
8. Error Reporting and Debugging Tools
Problem: During the FPGA development process, you may encounter unexpected issues that are difficult to diagnose. Error reporting tools can be invaluable in these situations.
Solution:
Xilinx provides a wide range of debugging tools in the Vivado suite, including Integrated Logic Analyzers (ILA) and Virtual I/O (VIO). These tools allow you to capture internal signals in real-time, helping you identify any problems with your design.
Use the ILA cores to insert probes into your design and monitor internal signals. This can be especially helpful for debugging complex state machines or timing issues.
The VIO tool lets you control and observe internal signals from the Vivado interface, making it easier to debug certain parts of your design without physical hardware intervention.
9. Using Constraints to Optimize FPGA Performance
Problem: Sometimes, performance issues arise due to improperly defined constraints in your FPGA design. The XC7A200T-2FFG1156I is a high-performance device, and if constraints are not optimized, the FPGA may not achieve its full potential.
Solution:
Use the Vivado Design Suite to apply appropriate placement and routing constraints. Optimizing placement can help achieve better timing and performance by reducing the distance between components that communicate frequently.
Utilize clock domain crossing constraints to prevent issues when signals move between different clock domains. This can improve synchronization and reduce errors.
Explore static timing analysis to identify areas of your design that may benefit from constraint optimization.
10. High-Speed I/O Debugging
Problem: Debugging high-speed I/O interfaces, such as PCIe, DDR memory, or high-speed serial interfaces, can be tricky due to the speed and complexity of the signals involved.
Solution:
Use high-frequency oscilloscopes to monitor I/O signal integrity. Look for issues like signal reflections, jitter, or voltage deviations.
Use Xilinx’s built-in tools for high-speed I/O analysis. The Vivado suite provides comprehensive features to simulate and analyze high-speed interfaces before actual hardware testing.
Make sure the signal traces are properly routed with controlled impedance. For high-speed designs, you may need to use techniques like differential signaling and proper termination.
11. Board-Level Debugging
Problem: If the FPGA appears to be working intermittently or exhibits random behavior, the issue might be on the board level. This can include poor solder joints, incorrect component values, or broken traces.
Solution:
Inspect the board visually and check for signs of physical damage or poor soldering. Use a microscope or magnifying glass to identify cold solder joints or bridges.
Verify that all components are correctly placed and that there are no missing or damaged components.
Perform a continuity check on critical signal traces to ensure there are no breaks or shorts.
12. Software Issues
Problem: Sometimes, the issue may not be with the FPGA hardware itself, but with the software or bitstream loaded onto the FPGA. This can happen if the bitstream is incompatible or if the software configuration has errors.
Solution:
Recompile the bitstream and verify that it is correctly targeted for the XC7A200T-2FFG1156I.
Test the software or firmware to ensure there are no errors in the programming logic.
Consider using simulation tools to verify your design’s functionality before loading it onto the FPGA.
Conclusion
The XC7A200T-2FFG1156I is a powerful and flexible FPGA, but like any complex device, it can present challenges during development. From power supply issues and configuration failures to signal integrity problems and timing violations, there are many potential obstacles that engineers may encounter. However, by following the troubleshooting steps outlined in this article and utilizing the right debugging tools and techniques, you can overcome these issues and ensure the success of your FPGA-based design.
By thoroughly understanding your design constraints, using proper debugging tools, and taking care during board design and assembly, you can optimize the performance and reliability of your XC7A200T-2FFG1156I and achieve your development goals.
