The TLV62569DBVR is a Power ful, efficient, and versatile step-down (buck) regulator used widely in various applications. However, like any complex electronic component, users may encounter common issues. In this article, we explore typical troubleshooting steps for the TLV62569DBVR, helping you resolve problems and maximize its pe RF ormance.
TLV62569DBVR, troubleshooting, step-down regulator, voltage regulator, power efficiency, electronics, buck converter, common issues, solutions, power supply problems.
Understanding the TLV62569DBVR and Common Issues

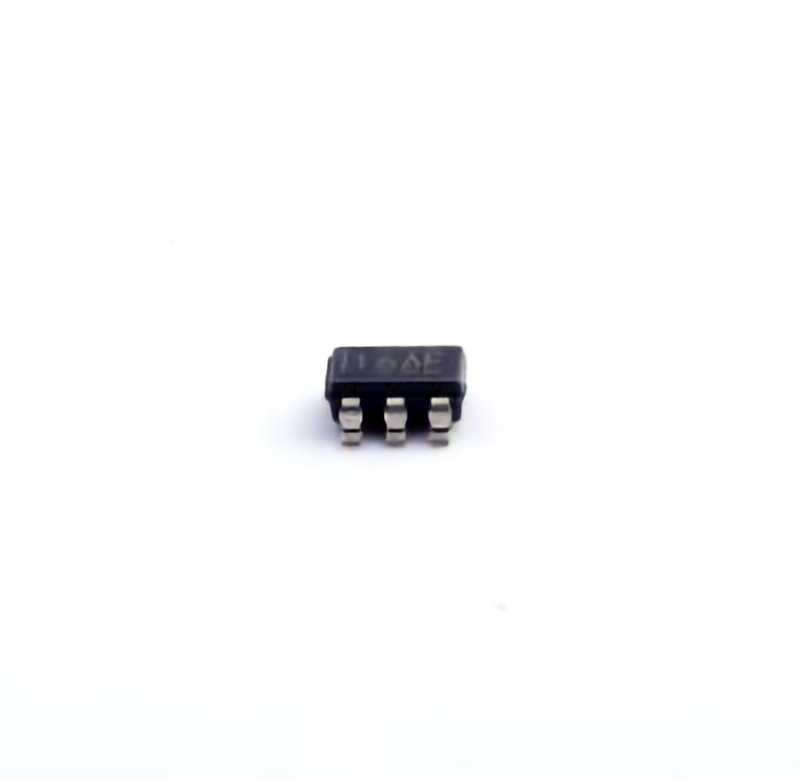

The TLV62569DBVR is a compact and highly efficient step-down (buck) voltage regulator from Texas Instruments. This regulator is designed to convert higher input voltages to lower, more stable output voltages, delivering power to devices like microcontrollers, sensors, and other digital circuits. The device offers a high degree of efficiency, making it ideal for applications that require long battery life or power optimization.
Common Use Cases for the TLV62569DBVR
The TLV62569DBVR is commonly used in:
Battery-powered devices: Its high efficiency ensures longer battery life.
Portable electronics: It delivers power to mobile devices, wearables, and handheld gadgets.
Industrial applications: The regulator is used in embedded systems, power-sensitive industrial equipment, and IoT devices.
Consumer electronics: Powering devices like smart home equipment and other low-power electronics.
Despite its versatility, users sometimes encounter problems when implementing the TLV62569DBVR into their designs. Below are some of the most common issues and potential troubleshooting tips to help resolve them.
1. Output Voltage Fluctuations
A primary issue many users face is unexpected fluctuations in output voltage. These can arise from several factors:
Incorrect capacitor Selection: The TLV62569DBVR requires specific input and output capacitors for stable operation. If the capacitors used in the design have too high or too low a value, or poor equivalent series resistance (ESR), the regulator might not work properly, causing voltage instability.
Problematic Layout: The layout of the PCB can affect the regulator’s performance. If the ground plane isn’t properly designed, or if there are long traces between the regulator and capacitors, voltage noise may increase, resulting in fluctuations.
Troubleshooting Tips:
Check Capacitor Values: Ensure the input and output capacitors match the recommended values (typically 10 µF for input and 22 µF for output). Additionally, use low-ESR capacitors for better stability.
Improve PCB Layout: Ensure a solid ground plane and minimize the distance between the regulator and its associated components. Keep high-current paths separate from sensitive signals to reduce noise.
2. Overheating of the Regulator
Excessive heat generation is another issue users may encounter, particularly when operating the TLV62569DBVR under heavy load conditions.
High Input Voltage: If the input voltage is significantly higher than the output voltage, the regulator has to dissipate more energy, which can lead to overheating.
Insufficient Heat Dissipation: In some designs, the regulator may not have adequate cooling, leading to thermal shutdown or reduced efficiency.
Troubleshooting Tips:
Ensure Proper Power Rating: Verify that the input voltage is within the recommended range and not too high compared to the output voltage. Consider using a heat sink or improve the PCB design to enhance heat dissipation.
Check Load Conditions: If the load draws excessive current, the regulator might overheat. Make sure the load current does not exceed the regulator’s rated limit.
3. Output Voltage Not Reaching the Expected Value
In some cases, users may find that the output voltage does not match the expected value, even though the regulator is powered correctly.
Incorrect Feedback Resistor Network: The TLV62569DBVR uses external resistors to set the output voltage. If these resistors are incorrectly chosen, the output voltage will be wrong.
Incorrect Soldering or Component Placement: Sometimes, soldering defects or incorrect placement of components can cause the regulator to malfunction.
Troubleshooting Tips:
Verify Feedback Network: Double-check the feedback resistors and ensure they are selected according to the desired output voltage. Use the formula provided in the datasheet to calculate the correct resistor values.
Inspect Soldering: Ensure all components are correctly soldered and placed, with no short circuits or poor connections that could affect the regulator’s functionality.
Advanced Troubleshooting and Best Practices
4. Unstable Operation or Power-Up Issues
Some users report that the TLV62569DBVR operates erratically, especially during power-up. This could manifest as the regulator not starting up at all or failing to power up correctly under certain conditions.
Inadequate Soft-Start Configuration: The TLV62569DBVR has a built-in soft-start feature that limits inrush current and helps prevent voltage overshoot. If this feature is not configured correctly, the regulator may experience instability during startup.
Inrush Current Issues: A large inrush current at startup, particularly with large capacitors on the output side, could cause problems for the regulator’s ability to power up correctly.
Troubleshooting Tips:
Adjust Soft-Start Configuration: The TLV62569DBVR’s soft-start functionality may be adjusted through external components. If you are experiencing power-up issues, check if adjusting the soft-start capacitor helps resolve the problem.
Minimize Inrush Current: Ensure the system’s power-up sequence minimizes inrush current. If necessary, add a pre-charge circuit or soft-start resistors to control the inrush current.
5. Output Noise and Ripple
Power-sensitive applications often demand clean, noise-free output. If the TLV62569DBVR is generating noise or ripple on the output, this could be detrimental to sensitive circuits like ADCs or RF components.
Inadequate Filtering: Insufficient filtering on the output side can lead to unwanted noise or ripple. The TLV62569DBVR’s design can allow for some ripple, but excessive noise could cause system instability.
PCB Layout Problems: As with other power regulators, poor PCB layout can exacerbate noise and ripple issues.
Troubleshooting Tips:
Improve Filtering: Add additional filtering capacitors (e.g., 100 nF ceramic capacitors) at the output to help suppress high-frequency noise and reduce ripple.
Optimize Layout: Ensure the PCB layout minimizes noise coupling by maintaining a clean ground plane, keeping sensitive components away from noisy power traces, and optimizing decoupling.
6. Under Voltage Lockout (UVLO) Issues
If the input voltage drops below a certain threshold, the TLV62569DBVR may enter an under-voltage lockout (UVLO) state and stop regulating. This can happen if the input voltage is unstable or drops too low under load conditions.
Low Input Voltage: If the input voltage dips below the regulator’s minimum operating voltage, the device will enter UVLO to protect itself.
Power Supply Instability: If the external power supply fluctuates or experiences dips, the regulator may enter UVLO intermittently.
Troubleshooting Tips:
Ensure Stable Input Voltage: Verify that the input voltage stays within the recommended range and does not fluctuate below the UVLO threshold. Use a stable power supply and avoid scenarios where the input voltage could fall too low.
Monitor Under-Voltage Thresholds: The UVLO threshold for the TLV62569DBVR can be adjusted via external resistors. If necessary, adjust these resistors to set a higher UVLO threshold to ensure stable operation under varying conditions.
Conclusion: Maximizing the Performance of the TLV62569DBVR
The TLV62569DBVR is a highly efficient and reliable step-down voltage regulator that can handle a variety of power needs. However, like any complex component, it requires careful design, proper component selection, and a robust PCB layout to operate optimally. By following the troubleshooting tips and best practices outlined in this article, you can ensure that your regulator performs efficiently and reliably.
If you are encountering specific issues, always refer to the datasheet and application notes from Texas Instruments for further insights and guidance. Whether it’s capacitor selection, feedback resistor tuning, or layout improvements, addressing common problems head-on will help you harness the full potential of the TLV62569DBVR.
