The TJA1051T/3 is a popular CAN transceiver widely used in automotive and industrial applications. However, like any electronic component, it can face operational issues. This article provides an in-depth guide to troubleshooting common problems encountered with the TJA1051T/3 and offers effective solutions to ensure smooth operation and reliability.
TJA1051T/3, CAN transceiver, troubleshooting, solutions, automotive electronics, CAN bus, CAN network, common issues, diagnostics, TJA1051T/3 problems, CAN Communication errors.
Understanding the TJA1051T/3 and Its Common Issues

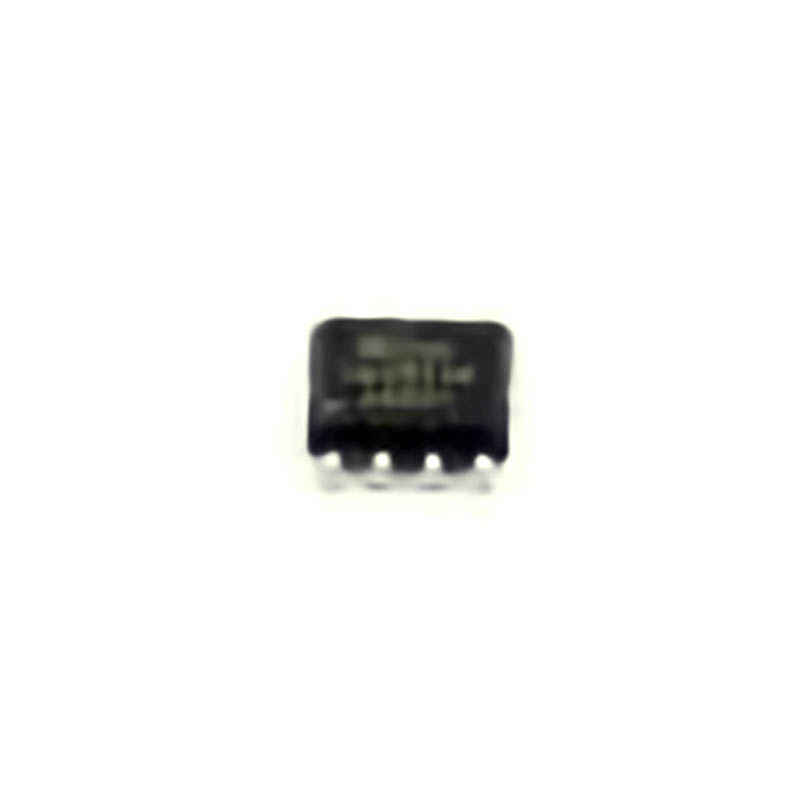

The TJA1051T/3, developed by NXP S EMI conductors, is a robust CAN transceiver designed for automotive and industrial applications. It facilitates the transmission and reception of messages over a Controller Area Network (CAN) bus, making it integral to in-vehicle communication systems and various automation setups. However, like any other semiconductor device, it may experience operational issues due to external and internal factors.
Before diving into the troubleshooting process, it’s essential to understand the core functionality of the TJA1051T/3 and its role within the network. This will help identify and isolate issues more effectively.
TJA1051T/3 Overview:
The TJA1051T/3 is an advanced high-speed CAN transceiver that communicates between the microcontroller and the physical CAN bus. The device can work with both standard (11-bit) and extended (29-bit) CAN IDs, supporting speeds up to 1 Mbps. It integrates various features, such as:
Low- Power standby mode
High immunity to electromagnetic interference (EMI)
Enhanced fail-safe operation
Protection against voltage spikes, reverse polarity, and over-temperature conditions.
Despite these robust features, the TJA1051T/3 is not immune to issues that may arise during its integration or operation in the field.
Common TJA1051T/3 Issues:
Let’s look at some common problems users may encounter with the TJA1051T/3:
CAN Bus Communication Failure:
One of the most frequent issues reported is a complete failure of communication on the CAN bus. When this occurs, the CAN network may not transmit or receive any data from the transceiver, leading to system errors or complete network outages.
High Current Consumption:
TJA1051T/3 is designed to work within specific current consumption limits. When it draws excessive current, it can lead to power issues, affecting the overall operation of the device and potentially damaging other components in the system.
Intermittent Signal Drops:
Sometimes, the CAN bus experiences intermittent disruptions in signal transmission. These drops can lead to data loss, corrupted messages, or slow communication between devices.
Faulty Transceiver Pin Configuration:
The pin configuration of the TJA1051T/3, if incorrectly set, can cause numerous issues, including improper signal output, device malfunctions, and an inability to connect to the network.
CAN Bus Error Frames:
Error frames are a significant concern in CAN networks. When errors occur in the transmission, they may not be detected correctly, causing communication breakdowns.
Troubleshooting TJA1051T/3 Issues:
1. Diagnosing Communication Failure:
Check the Power Supply: Start by verifying that the transceiver is properly powered. Ensure the VCC and ground connections are stable and correctly configured. A lack of proper power can lead to the failure of data transmission.
Verify Network Wiring: Inspect the wiring connecting the TJA1051T/3 to the CAN network. Ensure that the bus is properly terminated with 120-ohm Resistors at both ends of the network, as improper termination can lead to signal reflection and communication failure.
Monitor CAN Bus Signals: Use an oscilloscope or logic analyzer to monitor the CAN bus signals (CANH and CANL). Check for correct voltage levels (typically 2.5V for CANH and CANL) and waveform patterns. Abnormal voltage levels may indicate wiring issues or problems with the transceiver.
2. Resolving High Current Consumption:
Measure Current Draw: Use a multimeter to measure the current being drawn by the TJA1051T/3. If it exceeds the typical consumption (around 50 mA during normal operation), there could be an internal fault or an issue with the power supply.
Check for Overvoltage Conditions: An overvoltage on the VCC pin can result in excessive current consumption. Ensure that the voltage supplied to the TJA1051T/3 does not exceed the specified range (typically 4.75V to 5.25V).
Verify the Standby Mode: Ensure that the device is not in a high-current mode due to incorrect configuration. The TJA1051T/3 has a low-power standby mode that should be used when the device is not actively communicating.
3. Fixing Intermittent Signal Drops:
Inspect Cable Quality and Connections: Poor-quality cables or loose connections can cause intermittent communication failures. Ensure that all connections are solid and the cables are properly shielded to minimize noise interference.
Check for EMI (Electromagnetic Interference): Excessive electromagnetic interference can lead to intermittent signal drops. If the TJA1051T/3 is located near noisy equipment or power lines, consider using additional shielding to protect the transceiver.
4. Ensuring Proper Pin Configuration:
Review Pin Assignments: The TJA1051T/3 features several important pins for controlling its operation, including the “standby” and “TXD/RXD” pins. Verify that all pins are correctly configured according to the datasheet specifications. Misconfigured pins can lead to issues like lack of communication or improper message transmission.
5. Handling Error Frames:
Check for Bus Errors: Error frames can occur due to bus overloads, short circuits, or faulty nodes. Use a diagnostic tool to check for CAN error Counters that may indicate a node causing communication issues.
Reset the CAN Controller: In cases of persistent error frames, a soft or hard reset of the CAN controller connected to the TJA1051T/3 may resolve the issue and bring the network back to normal operation.
Advanced Troubleshooting Techniques and Solutions for TJA1051T/3
In this section, we will delve deeper into advanced troubleshooting techniques for the TJA1051T/3, addressing more specific scenarios and offering comprehensive solutions for complex issues that may arise during implementation and operation.
Advanced Diagnostics Using CAN Bus Tools
Using Oscilloscopes and Logic Analyzers:
When dealing with elusive problems, using an oscilloscope or logic analyzer is crucial for obtaining precise data about the CAN bus signals. By connecting the probes to the CANH and CANL pins, you can verify the integrity of the signal waveforms.
Signal Integrity: Proper CAN communication requires a well-formed signal with clean transitions between high and low states. If you observe noise, flatlining, or erratic signal changes, this could point to issues such as poor grounding, impedance mismatch, or external interference.
Error Detection: Most modern oscilloscopes and logic analyzers can also detect error frames in the CAN protocol. By examining the error flags and counters, you can determine whether the TJA1051T/3 or another node is responsible for the errors.
Utilizing Bus Load Analysis:
The CAN bus has a limited bandwidth, and excessive bus load can lead to delays and communication failures. Using bus load analysis tools, you can evaluate whether the number of nodes on the network is too high or if there is heavy traffic causing congestion.
Optimal Bus Load: The recommended bus load should typically be under 60% for stable communication. If you detect higher loads, consider optimizing the data transmission, adding more nodes, or using higher-speed transceivers.
Handling Specific Faults:
Fault Isolation in Multi-Node Networks:
In complex networks with multiple nodes, isolating a fault in the TJA1051T/3 can be challenging. One technique is to systematically disconnect nodes and monitor the network’s behavior.
Isolate Faulty Nodes: By temporarily removing nodes from the network and observing communication performance, you can determine whether a specific node or the TJA1051T/3 itself is the source of the problem.
Addressing CAN Bus Voltage Fluctuations:
Voltage fluctuations on the CAN bus can cause data corruption and loss. Use a voltage monitoring tool to ensure that the supply voltage for the TJA1051T/3 remains stable. Significant dips or spikes could indicate issues with the power regulator or the quality of the voltage supply.
Error Frame Flooding:
If the TJA1051T/3 is involved in continuous error frame flooding, you should first check the transceiver’s internal error counters (which may require special diagnostic tools or software).
Resetting the Error Counters: Some CAN controllers provide the option to reset error counters. After resetting, monitor the error frames to determine if the problem persists.
Preventive Maintenance and Best Practices
Proper Grounding:
Grounding issues are a common cause of communication problems in CAN systems. Ensure that the TJA1051T/3 and all associated components are properly grounded. A poor or noisy ground connection can lead to unstable communication and malfunctioning transceivers.
Use of Proper Termination Resistors:
Always use proper termination resistors (typically 120Ω) at both ends of the CAN bus. This helps prevent signal reflections, which can interfere with the correct interpretation of data and cause intermittent errors.
Temperature Management :
The TJA1051T/3 operates within a specified temperature range. Overheating can affect its performance and lead to communication breakdowns. Ensure that the transceiver is not subjected to extreme temperatures, and consider using heat sinks or other cooling methods if needed.
Regular Firmware Updates:
Keeping the firmware of the CAN controller and associated devices up to date can resolve bugs or compatibility issues with the TJA1051T/3. Check the manufacturer’s website for the latest updates and apply them as necessary.
Conclusion:
The TJA1051T/3 CAN transceiver is a versatile and reliable component, but like any electronic device, it can experience issues during operation. By following the troubleshooting steps outlined in this article, you can identify and resolve common problems, ensuring smooth and efficient communication on your CAN network. From basic diagnostics like power checks and pin configurations to more advanced techniques involving oscilloscopes and bus load analysis, these methods will equip you to handle a variety of issues that may arise with the TJA1051T/3.
