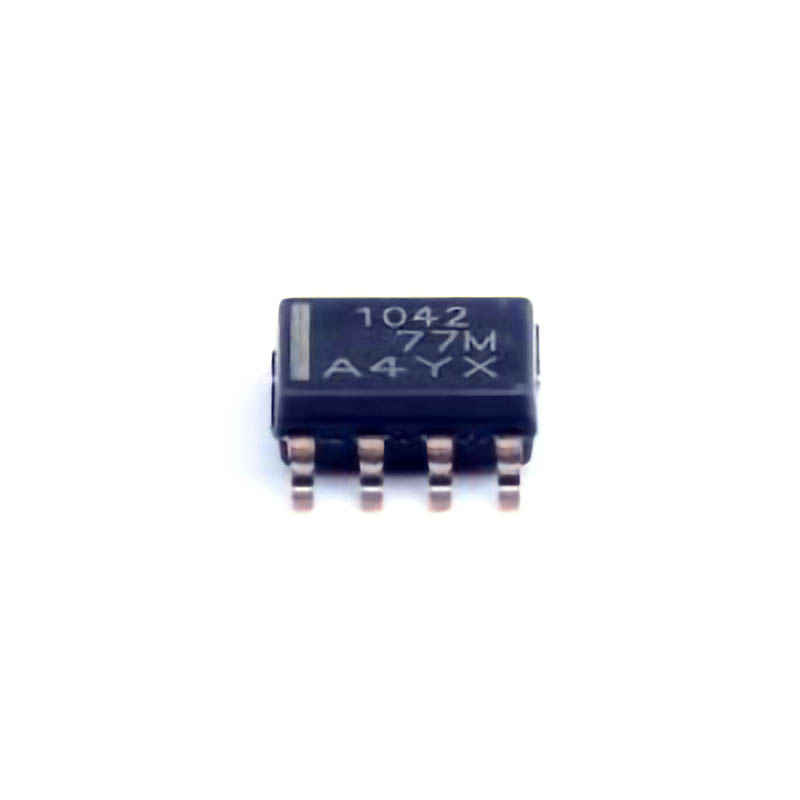

The TCAN1042DRQ1 is a popular CAN transceiver used in automotive applications, ensuring seamless communication in critical systems. However, like any electronic component, it may face issues under certain conditions. This article explores common troubleshooting steps and practical solutions to resolve potential problems, optimizing performance and reliability.
Understanding the TCAN1042DRQ1 and Common Issues
The TCAN1042DRQ1 is a robust CAN transceiver from Texas Instruments, widely used in automotive applications to facilitate high-speed communication between various on-board control units. In vehicles, the Controller Area Network (CAN) bus is essential for real-time data exchange, ensuring efficient operation of critical systems like engine control, infotainment, and advanced driver-assistance systems (ADAS). However, like any complex electronic component, the TCAN1042DRQ1 can experience communication problems due to various environmental factors, improper usage, or component failure.
Understanding these potential issues is the first step to successful troubleshooting. Let’s dive into the most common problems associated with the TCAN1042DRQ1, their causes, and how to address them.
1. Signal Integrity Issues
One of the primary functions of the TCAN1042DRQ1 is to transmit and receive CAN signals between electronic module s. Signal integrity problems, such as signal distortion, noise, or interference, can severely impact communication between nodes on the CAN bus.
Common Causes:
Loose Connections: A poor connection at the transceiver’s pins or the CAN bus cables can cause signal degradation.
Over-voltage or Under-voltage: CAN transceivers, including the TCAN1042DRQ1, can become unstable if the voltage supplied is outside the recommended range. This can lead to incorrect data transmission or even component failure.
Electromagnetic Interference ( EMI ): Automotive environments are prone to high levels of EMI, which can disrupt the CAN signals, especially if the wiring or transceiver lacks adequate shielding.
Solutions:
Check and Secure Connections: Ensure all wiring is firmly connected and free from corrosion or damage. Tighten any loose screws or connectors to prevent intermittent signal loss.
Verify Power Supply Voltage: Measure the supply voltage to ensure it’s within the TCAN1042DRQ1’s operating range, typically between 4.5V and 5.5V. Use regulated power supplies to prevent voltage fluctuations that may affect performance.
Improve Shielding and Grounding: Use shielded cables for CAN bus lines to minimize EMI. Additionally, ensure proper grounding of the transceiver and surrounding components to reduce noise interference.
2. Bus Contention or Error Frames
The TCAN1042DRQ1 can detect and report errors on the CAN bus, but bus contention or excessive error frames are typical issues that may arise when more than one node attempts to transmit at the same time.
Common Causes:
Multiple Nodes Transmitting Simultaneously: In high-traffic networks, simultaneous transmission attempts can lead to bus contention, which results in error frames.
Faulty or Misconfigured Nodes: A node that is not configured correctly or is malfunctioning can introduce errors, causing the entire bus to behave unpredictably.
Solutions:
Ensure Proper Bus Arbitration: CAN uses a priority-based arbitration mechanism to avoid bus contention. However, check that the nodes on the network are not overwhelming the bus with too many messages at once. Limiting the number of high-priority messages or optimizing message frequency can help alleviate contention.
Diagnostics and Isolation: Use a CAN analyzer to monitor the network for error frames and identify which node is causing the issue. Once the faulty node is located, disconnect or replace it, and check the configuration settings of all nodes to ensure they match the network’s requirements.
3. Transceiver Overheating or Overloading
Overheating is a common issue in automotive environments where high temperatures and poor ventilation are factors to consider. The TCAN1042DRQ1 operates efficiently within a specified temperature range, but excessive heat can lead to malfunctions.
Common Causes:
Excessive Current Draw: If the transceiver draws more current than expected, it could lead to heating. This can occur due to short circuits, improper connections, or a faulty power supply.
Environmental Factors: Automotive systems often experience extreme temperature variations, which can contribute to overheating if the device is not properly insulated or ventilated.
Solutions:
Ensure Proper Heat Dissipation: Install the TCAN1042DRQ1 in a location with adequate airflow and ventilation. In confined spaces, consider using heat sinks or active cooling methods to prevent excessive temperature buildup.
Check for Short Circuits or Overcurrent: Use a multimeter to measure current draw and ensure it falls within the specified range. If excessive current is detected, inspect the surrounding circuit for shorts or other issues causing overload.
4. Bus Termination Problems
Correct bus termination is crucial for the proper functioning of the CAN bus. Without proper termination, signal reflections can cause data transmission errors or even complete failure of communication between nodes.
Common Causes:
Missing or Incorrect Termination Resistors : The standard CAN bus requires two termination resistors, typically placed at each end of the bus, to prevent signal reflections and ensure proper communication.
Improper Resistor Values: Using resistors that do not match the required impedance (typically 120 ohms) can lead to signal degradation.
Solutions:
Check for Proper Termination: Verify that 120-ohm resistors are installed at both ends of the CAN bus. In some cases, the TCAN1042DRQ1 may integrate built-in termination resistors, but they need to be activated by the appropriate logic signals.
Inspect Bus Layout: In some cases, the physical layout of the CAN bus may lead to signal issues. Ensure that the bus is as short and direct as possible, avoiding sharp corners and excessive cable lengths.
Advanced Troubleshooting and Solutions for TCAN1042DRQ1
Now that we’ve covered the basic troubleshooting steps, let’s explore more advanced diagnostic techniques and solutions for resolving complex issues related to the TCAN1042DRQ1.
5. Bus Off State and Recovery
When the CAN bus enters a “bus-off” state, it means that a node has detected too many errors or has attempted to transmit in error conditions, effectively causing it to disconnect from the network.
Common Causes:
Excessive Errors or Recessive Bits: If the TCAN1042DRQ1 continuously detects an error (such as a dominant-recessive bit violation), it can cause the device to enter a bus-off state to prevent further communication failures.
Faulty CAN Controller: Sometimes, the issue may lie within the CAN controller rather than the transceiver. A misbehaving or misconfigured controller can trigger excessive errors, leading to bus-off.
Solutions:
Check for Error Counters : Use a CAN analyzer tool to monitor error counters in the network. If a specific node has accumulated too many errors, it may need to be reset or replaced.
Reset Bus-Off State: The TCAN1042DRQ1 includes functionality for recovering from a bus-off state. A system reset, or a reset of the transceiver itself, can re-establish communication and allow the network to recover.
6. CAN Transceiver Mismatch
Sometimes, the issues may stem from using incompatible or mismatched CAN transceivers or controllers within the same network. The TCAN1042DRQ1 supports both high-speed CAN and fault-tolerant communication, so understanding the transceiver’s capabilities is essential for proper integration.
Common Causes:
Incompatible Transceiver Models: Different CAN transceivers may operate at varying voltage levels, baud rates, or data transmission speeds. Mismatched transceivers can lead to unreliable communication.
Solutions:
Match Transceiver Specifications: Ensure that all transceivers and CAN controllers in the network are compatible with the TCAN1042DRQ1 in terms of communication speed, voltage levels, and overall requirements. Using uniform components across the network can reduce the likelihood of communication errors.
7. Firmware or Software Configuration Issues
In some cases, the issues may not be hardware-related but rather the result of software or firmware bugs. Incorrect configurations in the software stack can result in improper communication.
Solutions:
Check Software Settings: Verify that the CAN protocol stack and the firmware are properly configured to work with the TCAN1042DRQ1. Check for updates to the device drivers or firmware and ensure that they are compatible with the latest version of the TCAN1042DRQ1.
In conclusion, the TCAN1042DRQ1 is a powerful and reliable CAN transceiver, but like any electronic component, it requires careful attention to maintain optimal performance. By addressing issues such as signal integrity, bus contention, power supply problems, and incorrect termination, you can significantly reduce the risk of network failure. For more advanced problems like bus-off states or mismatched transceivers, using diagnostic tools and ensuring software compatibility can help quickly resolve complex issues. With proper troubleshooting and solutions, you can ensure that your automotive CAN network operates smoothly and efficiently.
