Understanding the TCA9535PWR and Common Issues
The TCA9535PWR is a widely used I/O expander device from Texas Instruments. It interface s with microcontrollers or processors via the I2C Communication bus, enabling you to control and monitor up to 16 GPIO (General Purpose Input/Output) pins. As a popular choice for expanding I/O capabilities in various applications, such as embedded systems, automation, and sensor networks, it's essential to understand how to troubleshoot and resolve common issues that may arise when using this device.
In this section, we’ll explore the TCA9535PWR’s functions, how it works, and identify the most frequent problems users encounter.
1.1 Overview of the TCA9535PWR

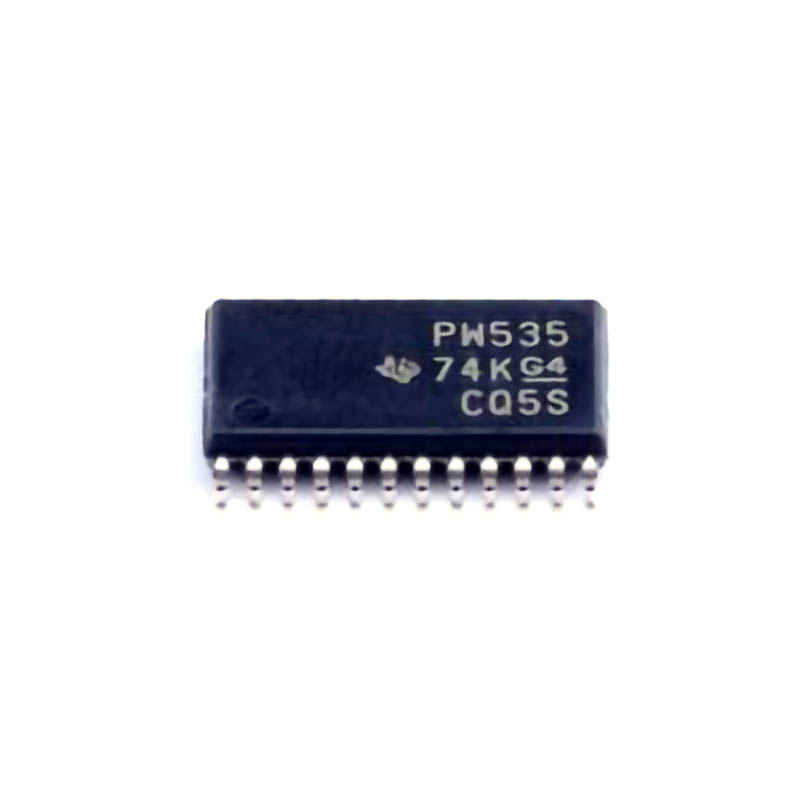

The TCA9535PWR is a 16-bit I/O expander that connects to microcontrollers over the I2C bus. It features 16 GPIO pins that can be individually configured as inputs or outputs. These pins can be used for a wide range of tasks, such as controlling LED s, reading button states, or interfacing with other digital peripherals.
Key Features of TCA9535PWR:
16 GPIO Pins: Each can be configured as input or output.
I2C Interface: Utilizes the two-wire I2C protocol for communication, which reduces the number of pins required for interfacing.
Low Power Consumption: Designed to be energy-efficient, suitable for battery-powered applications.
Interrupts: Supports interrupt-driven communication, which allows the microcontroller to respond to changes in input states quickly.
Despite its powerful features, users often encounter challenges when integrating or using the TCA9535PWR. These problems can range from communication issues to hardware-related errors.
1.2 Common Troubleshooting Scenarios
1.2.1 I2C Communication Failures
One of the most frequent issues with the TCA9535PWR is communication failure on the I2C bus. This can be caused by several factors:
Incorrect Addressing: The TCA9535PWR uses a 7-bit I2C address. If the microcontroller is not sending the correct address, communication will fail. Double-check the datasheet to ensure the right address is being used, and verify any address pins that might affect the default I2C address.
Bus Contention: If multiple devices are connected to the same I2C bus and there’s a conflict, data transmission might be interrupted. Ensure that there are no conflicts by using unique addresses for each I2C device.
Pull-up Resistors : The I2C bus requires pull-up resistors to function correctly. If these resistors are missing or incorrectly sized, the bus may not work as expected. Typical values are between 4.7kΩ and 10kΩ, but you should check the specifics for your microcontroller or development platform.
Noise on the Bus: I2C communication is sensitive to noise, which can cause data corruption. Ensure that your I2C wires are kept as short as possible and avoid routing them near high-power traces or other sources of interference.
1.2.2 GPIO Pin Configuration Issues
The TCA9535PWR provides flexibility in configuring each of its GPIO pins as either input or output. Misconfigurations in the pin setup can result in unexpected behavior:
Incorrect Direction Settings: If a pin is mistakenly set as an output but is being read as an input, or vice versa, the device won’t function as intended. Review the configuration settings for each pin and ensure that you’re setting them correctly as inputs or outputs in your code.
Input Pull-up Resistors: When using the TCA9535PWR’s GPIO pins as inputs, it's often necessary to activate internal pull-up resistors, especially if you're reading signals from switches or other devices. Without the pull-ups, the inputs may float, leading to unpredictable results.
Output Driving Issues: When configured as outputs, the TCA9535PWR can drive low or high logic levels. However, if the output is connected to a load that requires more current than the I/O pin can supply, the pin might not be able to drive the correct logic level, causing voltage drops or erratic behavior. Ensure that your output load is within the specified limits.
1.2.3 Power Supply and Grounding Problems
The TCA9535PWR operates at a voltage range of 1.65V to 5.5V, and improper power supply or grounding issues can often be the source of problems:
Voltage Supply: Ensure that the power supply voltage is within the specified range. Supplying a voltage lower than the minimum can result in the device not functioning correctly, while a voltage higher than the maximum can damage the chip.
Grounding: A poor or missing ground connection can lead to erratic behavior. Always ensure that the TCA9535PWR and any other components in your system share a common ground. Ground loops or differential ground potentials can cause communication failures and unexpected behavior.
1.2.4 Interrupt Handling Failures
The TCA9535PWR supports interrupts for efficient handling of input state changes. However, there are scenarios where interrupts may not trigger as expected:
Interrupt Configuration: The interrupt functionality must be correctly configured both in the device’s registers and within the microcontroller’s software. Review the interrupt mask register to ensure that interrupts are enabled for the appropriate pins.
Interrupt Polarity: The TCA9535PWR can be configured to generate interrupts on either rising or falling edge events. Ensure that the polarity settings match the actual behavior of your external input signals.
Clear Interrupt Flag: After an interrupt is triggered, the corresponding flag must be cleared in the interrupt register. If this step is missed, the interrupt will not be processed again until the flag is cleared.
1.3 Identifying the Root Cause of Issues
When troubleshooting problems with the TCA9535PWR, it's important to systematically narrow down the root cause of the issue. Follow these steps:
Check I2C Bus Communication: Use an I2C bus analyzer or logic analyzer to check the traffic on the bus. Verify that the TCA9535PWR is receiving and sending data correctly.
Verify Power Supply and Connections: Use a multimeter to measure the supply voltage and check that the ground connection is stable.
Test GPIO Configuration: Ensure that each GPIO pin is correctly configured in your code and that external components connected to the pins are functioning properly.
Monitor Interrupt Behavior: If using interrupts, check that the interrupt service routine (ISR) is properly implemented and that interrupts are enabled for the relevant pins.
In the next section, we will continue discussing more advanced troubleshooting strategies and solutions for addressing common hardware issues and resolving persistent problems with the TCA9535PWR.
Advanced Troubleshooting and Solutions for the TCA9535PWR
In this section, we will dive deeper into more advanced troubleshooting techniques, discuss common hardware problems that might occur with the TCA9535PWR, and provide practical solutions to help you resolve persistent issues.
2.1 Diagnosing Hardware Faults
Sometimes, issues with the TCA9535PWR are not due to software or configuration problems but rather physical hardware issues. Identifying and fixing these faults can be more challenging, but with the right approach, you can restore functionality.
2.1.1 Short Circuits and Overvoltage
A common hardware issue is a short circuit or overvoltage condition. The TCA9535PWR is susceptible to damage if a pin is exposed to a voltage higher than its maximum rated value (5.5V). If a pin is accidentally connected to a voltage source greater than 5.5V, the device may be permanently damaged, resulting in erratic behavior or total failure of the device.
Solution: Ensure that the voltage levels are within the device’s specifications. Use a voltage regulator if necessary to keep supply voltages stable. For GPIO pins, check the input voltage levels to make sure they do not exceed the limits specified in the datasheet.
2.1.2 PCB Layout and Signal Integrity
Poor PCB layout can cause a variety of issues, such as signal reflection, noise interference, and voltage drops. The I2C communication lines, in particular, are sensitive to trace length and impedance, which can result in data corruption.
Solution: Keep the traces for the I2C signals as short as possible and route them away from high-speed or noisy traces. Use proper grounding techniques, such as ground planes, to reduce electromagnetic interference ( EMI ).
2.2 Software Debugging Techniques
When hardware seems to be functioning correctly but the TCA9535PWR still fails to operate as expected, the issue may lie in the software. The following debugging techniques can help you identify and fix software-related problems.
2.2.1 Reviewing I2C Timing
I2C communication relies on specific timing characteristics. If the timing between the clock (SCL) and data (SDA) signals is too fast or too slow, communication errors may occur. The TCA9535PWR requires certain minimum clock speed and timing constraints to function reliably.
Solution: Check the timing requirements in the datasheet and adjust the I2C clock speed in your microcontroller's configuration. Slowing down the clock may help to ensure more reliable communication.
2.2.2 Debugging Interrupt Handling
If interrupts are not triggering as expected, you may need to check the interrupt configuration in both hardware and software. In particular, make sure that the microcontroller is correctly handling the interrupt and responding to state changes.
Solution: Review the interrupt configuration settings in your microcontroller’s code. Use a debugger or logic analyzer to confirm that interrupts are being triggered and that the ISR is being executed.
2.2.3 Using Test Software
Another useful approach is to develop a test program that exercises all of the TCA9535PWR’s features. This program should set various pins to different states and verify that the expected results occur. Running this test in isolation, with minimal interference from other parts of your system, can help pinpoint configuration issues.
Solution: Write simple test scripts that toggle GPIO pins or read inputs and display the results. This can help isolate the issue to either hardware or software.
2.3 Leveraging Community and Technical Support
If you’ve tried all of the above troubleshooting techniques and are still experiencing issues, don’t hesitate to reach out for external support.
Solution: Consult the Texas Instruments support forums, where engineers and other users often share their solutions to common problems. Additionally, you can contact TI’s technical support for personalized assistance.
Conclusion
The TCA9535PWR is a powerful and versatile I/O expander that can greatly enhance the functionality of your projects. However, like any complex electronic component, it can present challenges during integration and operation. By understanding common troubleshooting scenarios, following the right diagnostic steps, and leveraging both hardware and software debugging techniques, you can resolve most issues effectively. With this knowledge, you’ll be better equipped to ensure that your projects involving the TCA9535PWR are successful.
