Understanding the Role of the SPW47N60C3 in High-Voltage Power Supply Design
In today's rapidly evolving electronics landscape, the design of high-voltage switching power supplies (HVPS) is more complex than ever before. A critical component of these power supplies is the metal-oxide-s EMI conductor field-effect transistor (MOSFET), which acts as the switch that controls the flow of electrical energy in the system. Among the various MOSFETs available, the SPW47N60C3 has gained recognition for its ability to operate efficiently in high-voltage applications, offering a range of benefits for designers seeking reliable performance, enhanced efficiency, and robust Thermal Management .
The Significance of MOSFETs in Switching Power Supply Design
A switching power supply operates by rapidly switching the input voltage on and off to convert it to a stable output voltage. This process generates energy losses, heat, and noise, all of which can impair the efficiency and longevity of the power supply. In high-voltage applications, the need for precise control and high energy efficiency becomes even more critical, as components must handle higher voltage levels and larger currents.
MOSFETs are a fundamental part of this switching process due to their ability to quickly transition between on and off states with minimal energy loss. The efficiency of a MOSFET is largely determined by its on- Resistance (R_DS(on)), gate charge characteristics, and overall thermal performance. The SPW47N60C3 MOSFET stands out due to its optimized characteristics for high-voltage switching power supplies.
SPW47N60C3: Key Features and Specifications

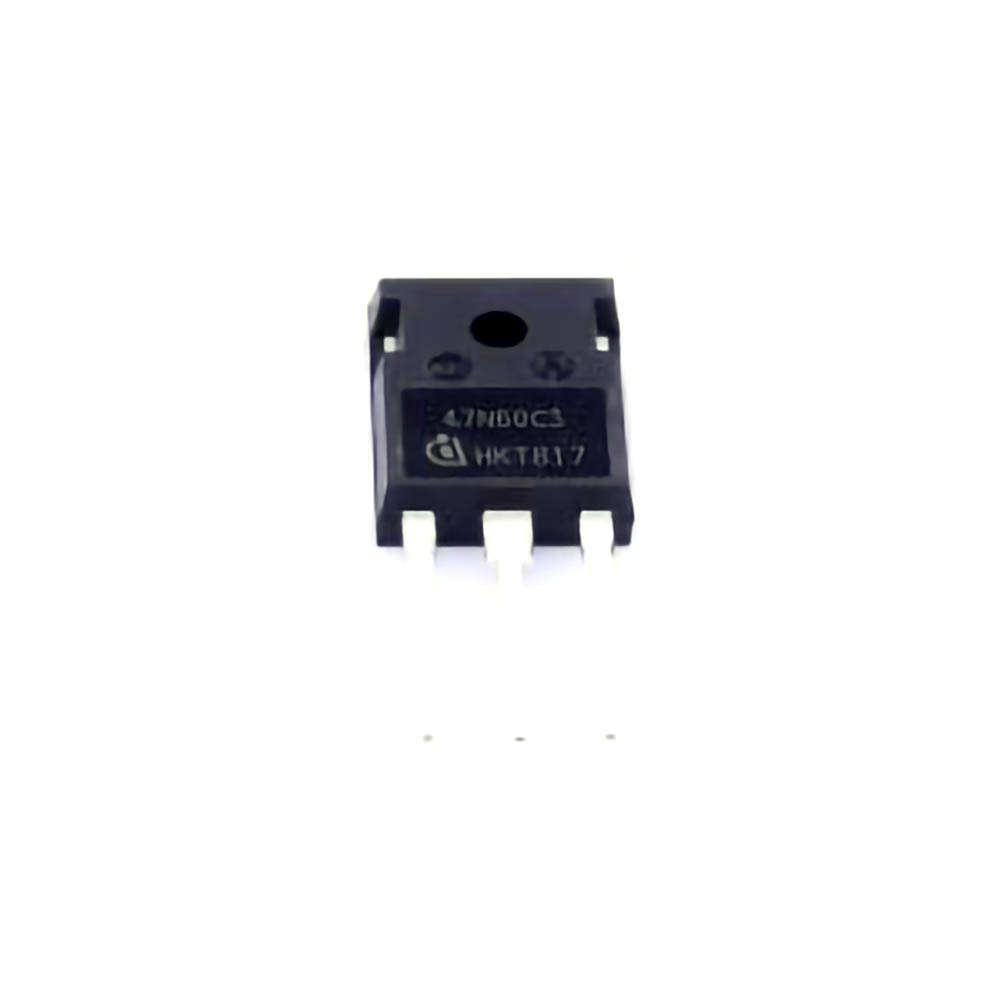

The SPW47N60C3 is a high-voltage N-channel MOSFET designed for applications where reliability, efficiency, and thermal performance are paramount. Below are some of the key specifications that make the SPW47N60C3 a popular choice for high-voltage designs:
High Voltage Rating: With a drain-to-source voltage (V_DS) rating of 600V, the SPW47N60C3 is suitable for use in high-voltage applications, providing designers with the flexibility to handle demanding voltage levels without compromising on performance or safety.
Low On-Resistance: The SPW47N60C3 boasts a low RDS(on), which minimizes conduction losses and improves overall efficiency. A lower RDS(on) translates into less heat generation and greater reliability, which is crucial in high-power applications.
Fast Switching Characteristics: The MOSFET features fast switching speeds, which are essential in high-frequency switching applications. These characteristics reduce the switching losses and improve the overall power conversion efficiency.
Improved Thermal Performance: The SPW47N60C3 features a well-designed package that enhances thermal dissipation, ensuring the device remains within safe operating temperatures even under high power conditions. Effective thermal Management helps extend the lifespan of the MOSFET and the power supply system.
Robust Avalanche Energy Rating: The SPW47N60C3 includes a robust avalanche energy rating, making it capable of withstanding voltage spikes and transients. This feature is essential for applications where voltage fluctuations are common, such as in industrial equipment or automotive power supplies.
Applications of the SPW47N60C3 in High-Voltage Power Supply Design
The SPW47N60C3's excellent voltage, thermal, and switching performance makes it an ideal choice for various high-voltage switching power supply applications, including:
AC-DC Converters : In AC-DC power converters, the SPW47N60C3 can be used to efficiently convert AC voltage to a stable DC output, ensuring high efficiency and minimal heat generation in the process.
Power Factor Correction (PFC): Power factor correction circuits aim to improve the efficiency of power delivery systems by reducing reactive power. The SPW47N60C3 can be used in these circuits to handle high-voltage switching with minimal losses.
Industrial Power Supplies: In industrial automation systems, robotics, and control equipment, the SPW47N60C3 MOSFET provides the reliability and efficiency needed for stable operation, even under varying load conditions.
Telecommunications Equipment: High-voltage power supplies in telecommunications systems require components that can maintain stable operation under fluctuating input voltages. The SPW47N60C3's low on-resistance and fast switching characteristics make it a perfect fit for these applications.
LED Drivers and Lighting Systems: For high-efficiency LED drivers, particularly those used in industrial lighting, the SPW47N60C3 offers the voltage handling capabilities and thermal management necessary to ensure reliable performance.
Why Choose SPW47N60C3 for High-Voltage Power Supplies?
The SPW47N60C3 stands out in the crowded market of MOSFETs for high-voltage power supply designs due to several factors:
Reliability: The SPW47N60C3 is designed to withstand harsh operating conditions, ensuring stable performance in high-voltage environments. Its robust construction helps protect against transient voltage spikes, extending the life of the power supply.
Efficiency: The low R_DS(on) and fast switching speeds ensure that the SPW47N60C3 minimizes conduction and switching losses, which directly translates into higher efficiency and less heat generation.
Thermal Management: Effective thermal dissipation is critical in high-voltage designs. The SPW47N60C3 is designed with a package that facilitates heat management, helping to prevent thermal runaway and maintain consistent performance.
Cost-Effectiveness: While it offers high performance, the SPW47N60C3 remains cost-effective, providing a competitive edge for manufacturers looking to build reliable and efficient power supplies without compromising on cost.
Best Practices for Integrating SPW47N60C3 into High-Voltage Switching Power Supply Designs
While selecting the SPW47N60C3 MOSFET for high-voltage switching power supply designs offers many advantages, proper integration is key to unlocking its full potential. Below, we explore some best practices for ensuring that the SPW47N60C3 operates optimally in your design.
1. Proper Gate Drive Circuit Design
The gate drive circuit is crucial to achieving the desired switching performance of the SPW47N60C3. A well-designed gate driver ensures that the MOSFET operates efficiently, switching quickly between the on and off states while minimizing switching losses.
Gate Drive Voltage: Ensure that the gate drive voltage is adequate to fully turn on the MOSFET. The SPW47N60C3 typically requires a gate voltage of 10V to achieve optimal performance. A lower gate drive voltage can result in higher R_DS(on), increasing conduction losses and reducing overall efficiency.
Gate Resistor: Use a gate resistor to control the switching speed and limit the inrush current during transitions. A balance between fast switching (for efficiency) and manageable gate charge (for reduced EMI and noise) is important.
Gate Drive Current: Pay attention to the current sourcing and sinking capability of the gate driver. The SPW47N60C3 has a relatively low total gate charge, but the gate driver must be capable of charging and discharging the gate capacitance quickly to ensure fast switching times.
2. Optimize Heat Dissipation
Thermal management is one of the most critical aspects of high-voltage power supply design. Even though the SPW47N60C3 is designed for excellent thermal performance, it is essential to ensure that heat is effectively dissipated during operation.
Heatsinks: Consider adding heatsinks to the MOSFET package to improve heat dissipation. A well-sized heatsink can significantly improve the thermal performance, especially in high-power applications.
Thermal Pads and PCB Layout: Use high-quality thermal pads and optimize the PCB layout to enhance heat transfer. Ensure that the MOSFET is placed near the edge of the PCB to take advantage of natural airflow, if possible.
Low-Inductance Layout: Design the PCB with low inductance to minimize the effects of parasitic inductance during switching events. A low-inductance layout helps reduce ringing and enhances overall switching performance.
3. Use Proper Snubber Circuits
Voltage spikes due to parasitic inductances in the circuit can damage MOSFETs if not properly controlled. A snubber circuit, which consists of a resistor- capacitor (RC) network, can help suppress voltage spikes during switching events.
RC Snubber: When using the SPW47N60C3, incorporate an RC snubber across the drain and source to absorb any voltage transients and protect the MOSFET from damage. The snubber should be carefully chosen based on the frequency and energy of the transients in your specific application.
4. Ensure Proper Protection Against Overcurrent and Overvoltage
High-voltage power supply circuits are susceptible to faults such as overvoltage or overcurrent conditions. The SPW47N60C3 features robust avalanche energy capabilities, but additional protection circuits are essential for ensuring long-term reliability.
Current Sensing: Use current sensing resistors or Hall effect sensors to monitor the output current and trigger overcurrent protection if necessary. This can help protect both the MOSFET and other components from excessive stress.
Crowbar Circuit: In applications where overvoltage conditions may occur, consider adding a crowbar circuit to clamp the voltage to a safe level in the event of a surge.
5. Simulation and Testing
Before finalizing the design, simulate the power supply circuit to verify the performance of the SPW47N60C3 under different load conditions and transient events. Use tools like SPICE simulations to model the behavior of the MOSFET and the power supply circuit, adjusting parameters to optimize efficiency and reliability.
Conclusion
The SPW47N60C3 MOSFET is an excellent choice for high-voltage switching power supply designs due to its reliable performance, low on-resistance, fast switching capabilities, and robust thermal characteristics. By carefully considering design aspects like gate drive, thermal management, and protection circuits, engineers can maximize the efficiency, reliability, and longevity of their power supplies. As high-voltage applications continue to expand in industries like telecommunications, industrial automation, and renewable energy, the SPW47N60C3 remains a go-to solution for engineers looking to build high-performance, reliable power supply systems.
