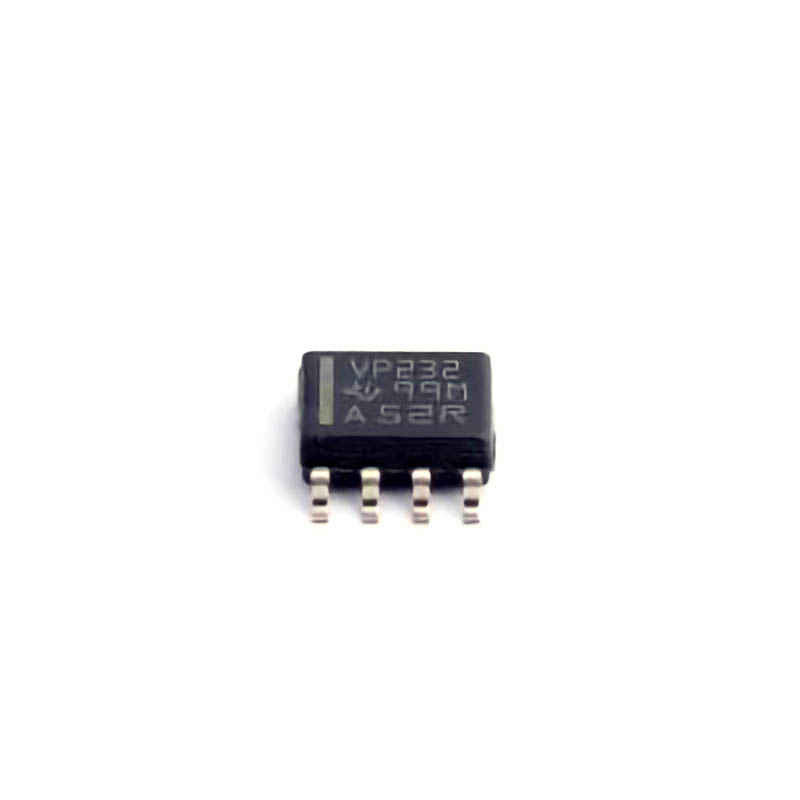

The SN65HVD232DR is a popular RS-485 transceiver used in industrial automation, Communication systems, and embedded applications. While this device is highly reliable, users may encounter challenges during its implementation. This article explores common issues and offers practical solutions to help engineers troubleshoot and optimize their use of the SN65HVD232DR.
Common Issues with the SN65HVD232DR and Troubleshooting Techniques
The SN65HVD232DR is a widely used RS-485 transceiver known for its robustness in various applications like industrial automation, building controls, and remote data acquisition. It provides a reliable communication interface for differential data transmission over long distances, making it a popular choice for many systems. However, even the best components can experience problems during setup or use. In this section, we will explore some of the most common issues users encounter with the SN65HVD232DR and how to troubleshoot them.
1. No Communication or Signal Loss
One of the most frequent problems engineers face with the SN65HVD232DR is a complete lack of communication between devices or total signal loss. This can be caused by several factors, including wiring issues, incorrect configuration, or faulty connections.
Troubleshooting Steps:
Check Connections: Start by confirming that the transceiver’s wiring is correct. Ensure that the A and B lines of the RS-485 bus are correctly wired and that all devices on the network are properly connected.
Terminating Resistors : Ensure that terminating resistors (typically 120 ohms) are placed at both ends of the RS-485 bus to prevent signal reflections. These resistors are essential for maintaining signal integrity over long cable runs.
Bias Resistors: Sometimes, biasing is required to ensure the bus is in a defined state when no driver is actively driving the bus. If bias resistors are not present or incorrectly configured, communication failure may occur.
2. Noise and Interference
Noise is a significant concern in any differential signal transmission system, especially when working with long cables or in environments with high electromagnetic interference ( EMI ). The SN65HVD232DR is designed to reject noise to some extent, but persistent external noise can still disrupt communication.
Troubleshooting Steps:
Twisted Pair Cables: Ensure you are using twisted pair cables for RS-485 communication. Twisted pair cables help cancel out electromagnetic interference by having the two conductors twisted together, which improves noise rejection.
Shielded Cables: If the RS-485 bus is running in a noisy environment, use shielded twisted pair (STP) cables. The shield can further protect the signal from external noise.
Proper Grounding: Grounding of the RS-485 system is critical for minimizing noise. Ensure that the shield of the cable (if used) is grounded properly, typically at one end of the cable.
3. Incorrect Voltage Levels
The SN65HVD232DR operates with a supply voltage of 3V to 5.5V, and the logic levels for the RS-485 lines are typically 0V to 5V. Incorrect voltage levels on the Vcc pin or the data lines can cause communication errors or prevent the device from working altogether.
Troubleshooting Steps:
Measure Voltage Levels: Use a multimeter or oscilloscope to check that the supply voltage is within the recommended range of 3V to 5.5V. If the voltage is too low or too high, this could cause erratic behavior or complete failure.
Check Data Line Voltages: Ensure that the differential voltage on the A and B lines falls within the expected range. The SN65HVD232DR expects a minimum differential voltage of 200mV to properly interpret the signals.
4. Bus Contention and Driver Conflicts
RS-485 systems typically have multiple devices connected to the same bus, and only one device should be transmitting at any given time. If multiple Drivers are active at the same time, bus contention occurs, leading to data corruption and communication failures.
Troubleshooting Steps:
Check for Multiple Active Drivers : Ensure that only one driver is enabled at any given moment. If you are using multiple transceivers or microcontrollers with RS-485 capability, make sure the drivers are properly enabled or disabled as needed.
Control Line Management : Use the RE (Receiver Enable) and DE (Driver Enable) pins correctly to manage the direction of the transceiver. The RE pin should be low to enable the receiver, and the DE pin should be high to enable the driver.
5. Data Corruption or Framing Errors
Even if communication seems to be working, corrupted data or framing errors can still occur. These issues are often related to signal integrity problems or incorrect setup of the communication protocol.
Troubleshooting Steps:
Signal Integrity Check: Use an oscilloscope to check the shape of the signal on the A and B lines. If the signal appears noisy, distorted, or lacks a clear differential voltage swing, the wiring or termination might need to be adjusted.
Check Baud Rate and Protocol Settings: Verify that all devices on the bus are operating at the same baud rate and communication parameters (e.g., parity, stop bits). Mismatched settings between the transceiver and the master device can lead to data corruption or framing errors.
Update Firmware: If you are using a microcontroller with the SN65HVD232DR, ensure that the firmware correctly handles error checking, retries, and other protocol-specific features.
Advanced Troubleshooting Solutions and Performance Optimization
While the basic troubleshooting steps outlined in Part 1 can resolve many common issues, there are some more advanced troubleshooting techniques and performance optimization strategies to ensure that your SN65HVD232DR works optimally in demanding applications.
1. Differential Voltage Problems
The SN65HVD232DR is a differential transceiver, meaning it works by interpreting the difference in voltage between the A and B lines. If the differential voltage falls below the minimum threshold (200mV), the device will fail to recognize the signal.
Troubleshooting Steps:
Increase Differential Voltage: If you are experiencing issues with low signal strength, you may need to increase the differential voltage by adjusting the driver strength or using a stronger RS-485 driver. Some applications benefit from using higher impedance drivers or adjusting the line length to reduce signal degradation.
Use Differential Line Drivers: If signal attenuation is severe over long distances, consider using additional differential line drivers or repeaters to boost the signal.
2. Overvoltage or ESD Protection
Overvoltage conditions or electrostatic discharge (ESD) events can damage the SN65HVD232DR or cause it to malfunction. These issues can arise due to improper handling, poor grounding, or harsh environmental conditions.
Troubleshooting Steps:
Use ESD Protection Devices: To protect against ESD, install TVS (Transient Voltage Suppression) diodes across the RS-485 lines and Vcc/GND. These diodes will clamp any voltage spikes that could otherwise damage the transceiver.
Ensure Proper Grounding and Shielding: Improper grounding or lack of shielding can make your circuit more vulnerable to ESD. Ensure that the system has a low-impedance path to ground and consider adding extra protective measures around vulnerable components.
3. Power Supply Noise and Decoupling
A noisy power supply can cause unexpected behavior in the SN65HVD232DR. Power supply fluctuations or poor decoupling can affect the transceiver’s operation, leading to signal errors or instability.
Troubleshooting Steps:
Use Decoupling capacitor s: Place decoupling capacitors close to the Vcc and GND pins of the SN65HVD232DR. A 0.1µF ceramic capacitor and a 10µF electrolytic capacitor are often used together to filter high- and low-frequency noise.
Check Power Supply Quality: If possible, measure the quality of the power supply with an oscilloscope. Look for any ripple or noise that could be affecting the SN65HVD232DR's performance.
4. High-Speed Operation and Signal Integrity
At higher data rates, the integrity of the RS-485 signals becomes even more critical. High-speed transmission can result in signal reflections, crosstalk, and other issues that degrade communication quality.
Troubleshooting Steps:
Minimize Cable Length: As a general rule, the shorter the RS-485 bus, the better the performance. If the cable is too long, signal degradation can lead to errors. Keeping the cable length under 10 meters is ideal at higher data rates.
Use Proper Termination: Ensure that your termination resistors are rated correctly for the data rate and that they are placed at both ends of the RS-485 bus.
5. Consider Using a CAN Bus for Robust Communication
If your application involves long distances or harsh industrial environments, you might want to consider transitioning to a CAN bus (Controller Area Network) for even more robust communication. CAN is better suited for high-noise environments and provides better error handling.
By following these troubleshooting steps and optimization techniques, you can ensure that your SN65HVD232DR RS-485 transceiver operates smoothly and reliably, ensuring robust communication in demanding applications. Whether you're working in industrial automation, remote sensing, or embedded systems, addressing these common issues will help you maximize the performance of your RS-485 networks.
