Understanding SKY13453-385LF and Common Troubleshooting Scenarios

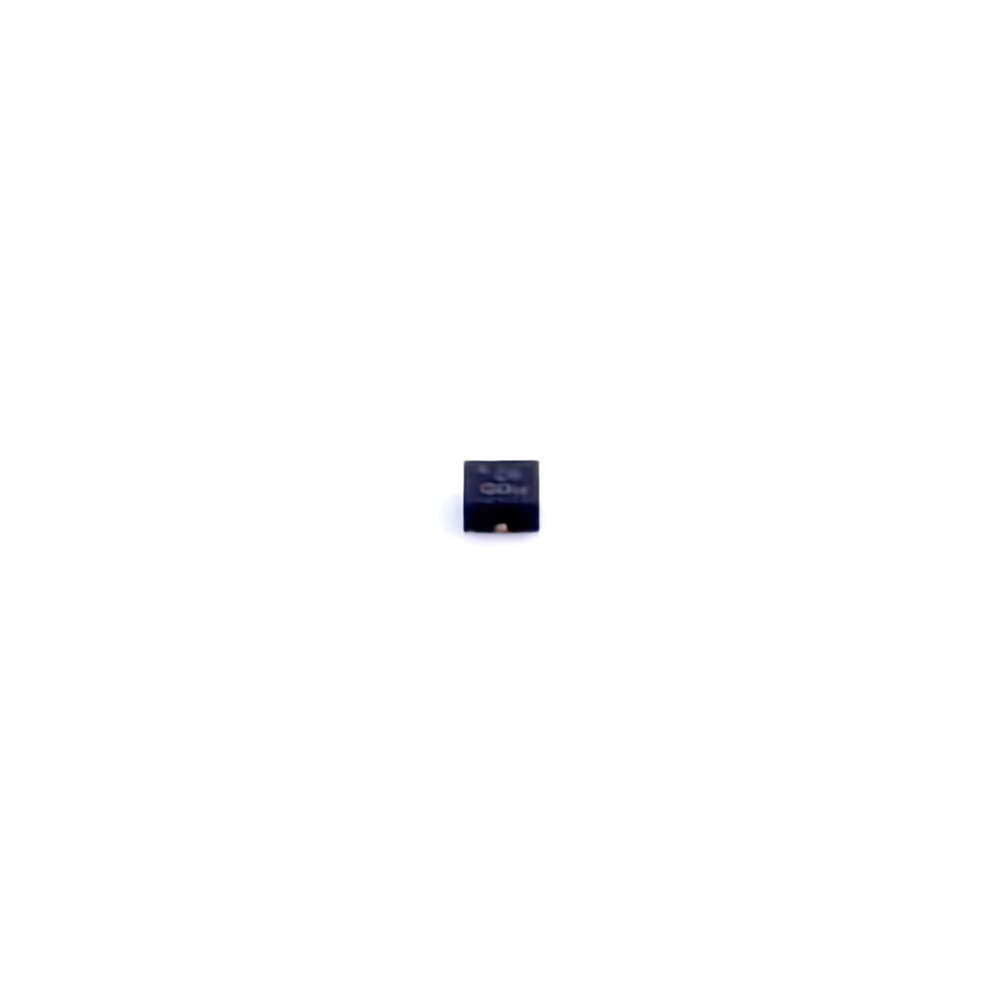

The SKYWORKS SKY13453-385LF is a high-pe RF ormance, low-loss, and compact RF switch designed for a variety of applications in wireless communication systems. Whether you are working with mobile communication devices, satellite systems, or other RF applications, this component plays a critical role in switching between different signal paths without introducing significant loss or distortion. However, like all electronic components, it is not immune to issues that can compromise its performance.
Key Features of the SKY13453-385LF
Before we delve into the troubleshooting aspects, it’s essential to understand the features that make the SKY13453-385LF a go-to solution for engineers working with RF systems. The device operates in the frequency range of 0.1 GHz to 6 GHz, making it versatile enough for various communication technologies, including cellular, Wi-Fi, and GPS. With its ultra-low insertion loss and high isolation, the SKY13453-385LF ensures reliable performance in signal switching applications.
Common Issues and Their Causes
While the SKY13453-385LF is designed for optimal performance, it is not exempt from performance issues that could arise due to improper handling, system integration problems, or manufacturing defects. Below are the common troubleshooting scenarios that engineers and technicians may face when working with this component.
Signal Loss or Degradation
One of the most common issues encountered with RF switches like the SKY13453-385LF is signal degradation or loss. In many cases, this issue arises from improper impedance matching between the device and the surrounding circuit. A mismatch in impedance can lead to reflections, causing signal loss and distortion. Additionally, if the component is not Power ed properly or the control signals are not appropriately managed, the switch may not operate efficiently, resulting in a poor signal path.
Switching Performance Failure
Another frequent issue is the failure of the switch to operate as expected during the switching process. This can manifest as a failure to transition between different signal paths or failure to engage the correct path under control signals. Potential causes include issues with the biasing circuitry, incorrect control voltages, or mechanical faults that prevent the switch from making the necessary connections.
Power Handling Issues
The SKY13453-385LF has a defined power rating, and exceeding this limit can lead to thermal damage or permanent degradation of the internal components. Issues related to power handling, such as overheating or thermal runaway, can result in the device malfunctioning, leading to poor performance or total failure of the switch.
Cross-Talk and Isolation Problems
The SKY13453-385LF provides high isolation between ports to ensure that signals from one path do not interfere with another. However, inadequate isolation could result in cross-talk, where signals from one channel leak into another, causing interference. Cross-talk is typically a result of improper grounding, incorrect component placement, or degraded isolation performance due to environmental factors like moisture or excessive vibration.
Initial Steps for Troubleshooting
When encountering any of these issues, it’s crucial to follow a systematic approach to diagnosing and fixing the problem. The first step is always to perform a thorough visual inspection of the device and the surrounding circuit. Check for physical damage, signs of overheating, or poor solder joints that could affect the electrical connections.
Next, confirm that all the biasing and control voltages are within the recommended ranges specified in the datasheet. A multimeter or oscilloscope can help verify whether the input control signals are functioning correctly.
In the next section, we will explore more specific troubleshooting techniques and solutions to address these common issues effectively.
Advanced Troubleshooting and Solutions for SKY13453-385LF
After performing initial checks and identifying the nature of the issue, engineers can implement targeted troubleshooting techniques to fix the problems with the SKY13453-385LF. In this section, we will outline solutions to the common problems mentioned in Part 1 and provide expert advice on how to ensure the device operates at peak performance.
1. Signal Loss or Degradation: Solutions
If you encounter signal loss or degradation in your RF system, the first thing to check is impedance matching. Use an impedance analyzer to confirm that the device is matched to the characteristic impedance of the system (usually 50 ohms). If you find that the impedance is mismatched, consider adjusting the impedance of the surrounding circuitry or adding passive components like matching networks (inductors and capacitor s) to align the impedance properly.
Also, check the quality of the solder joints and the integrity of the PCB traces. A broken or poorly soldered joint could lead to increased resistance or a signal path break, resulting in loss of signal. In some cases, excessive signal loss can be corrected by using a different routing strategy for the traces to minimize their length and avoid unnecessary vias, which can increase loss.
2. Switch Performance Failure: Solutions
For switching performance failure, the most likely causes are incorrect control voltages or a failure in the biasing circuitry. Double-check the control signals against the datasheet specifications. If the control voltages are not within the specified range, adjust them accordingly to ensure the device operates in the correct mode (either on or off).
Also, examine the driving circuitry connected to the control pins. If the control signals are noisy or not sufficiently powered, consider using a driver IC to ensure stable and accurate switching. If the issue persists, there could be an internal fault within the device, such as a damaged relay or switching mechanism, requiring replacement of the part.
3. Power Handling and Thermal Solutions
When working with the SKY13453-385LF, power handling is a critical aspect. To avoid thermal issues, ensure that the device is not exceeding its maximum rated power. Overpowering the device can lead to thermal damage, so use thermal simulation tools to predict and manage heat dissipation in your design. Adequate PCB layout, such as placing the switch near heat sinks or improving ventilation, can help maintain proper temperature levels.
For more accurate thermal management, use an infrared (IR) camera to monitor the temperature of the device during operation. If overheating is detected, try adding thermal vias or a heat spreader to help dissipate heat more effectively.
4. Cross-Talk and Isolation Improvement
To resolve issues related to cross-talk and poor isolation, carefully inspect the grounding system of your circuit. Ensure that the ground planes are properly connected and there is minimal loop area in the return paths, which could inadvertently induce noise into the signal paths. Additionally, consider using shielding techniques to block unwanted signals from leaking between the ports. Adding ferrite beads or low-pass filters to power and signal lines can help suppress high-frequency noise and improve isolation.
Sometimes, environmental conditions can cause the isolation performance of RF components to degrade. Moisture, dust, or vibration could negatively impact the integrity of the switch. If you are working in an environment with such factors, consider using a protective coating or enclosure to shield the device from external contaminants.
Conclusion: Best Practices for Long-Term Performance
To ensure long-term performance and reliability of the SKY13453-385LF, it is essential to follow best practices throughout the design, integration, and maintenance phases. First, always select the correct operating conditions and voltages as specified in the datasheet. A well-designed PCB with proper impedance matching, grounding, and signal routing will minimize the risk of common issues like signal loss and cross-talk.
Regularly perform testing and diagnostics to identify potential issues early and address them before they escalate. Proper thermal management and power handling are crucial for the longevity of the device, and ensuring the device is shielded from harsh environmental conditions can prevent degradation of performance over time.
By following these guidelines, engineers and technicians can troubleshoot and resolve issues with the SKY13453-385LF efficiently, ensuring reliable and optimal performance for their wireless communication systems.
