The IRFB4110PBF is a high-pe RF ormance N-channel MOSFET designed for high- Power switching applications. This article delves into its practical applications in power electronics, focusing on its use in high-power switching circuits. Additionally, it provides troubleshooting tips for effectively debugging circuits utilizing this component, ensuring optimized performance and efficiency.
IRFB4110PBF, MOSFET, high-power switching circuits, power electronics, debugging, practical applications, performance, efficiency, N-channel MOSFET, power management.
Practical Applications of IRFB4110PBF in High-Power Switching Circuits
In the world of power electronics, the efficient switching of high currents and voltages is vital for the performance and longevity of systems. One of the key components that facilitates this is the metal-oxide-semiconductor field-effect transistor (MOSFET), particularly the IRFB4110PBF. Manufactured by Infineon Technologies, this N-channel MOSFET is a highly efficient and reliable choice for use in a variety of high-power switching circuits. In this section, we will explore its practical applications in detail and discuss why it has become a popular choice in the industry.

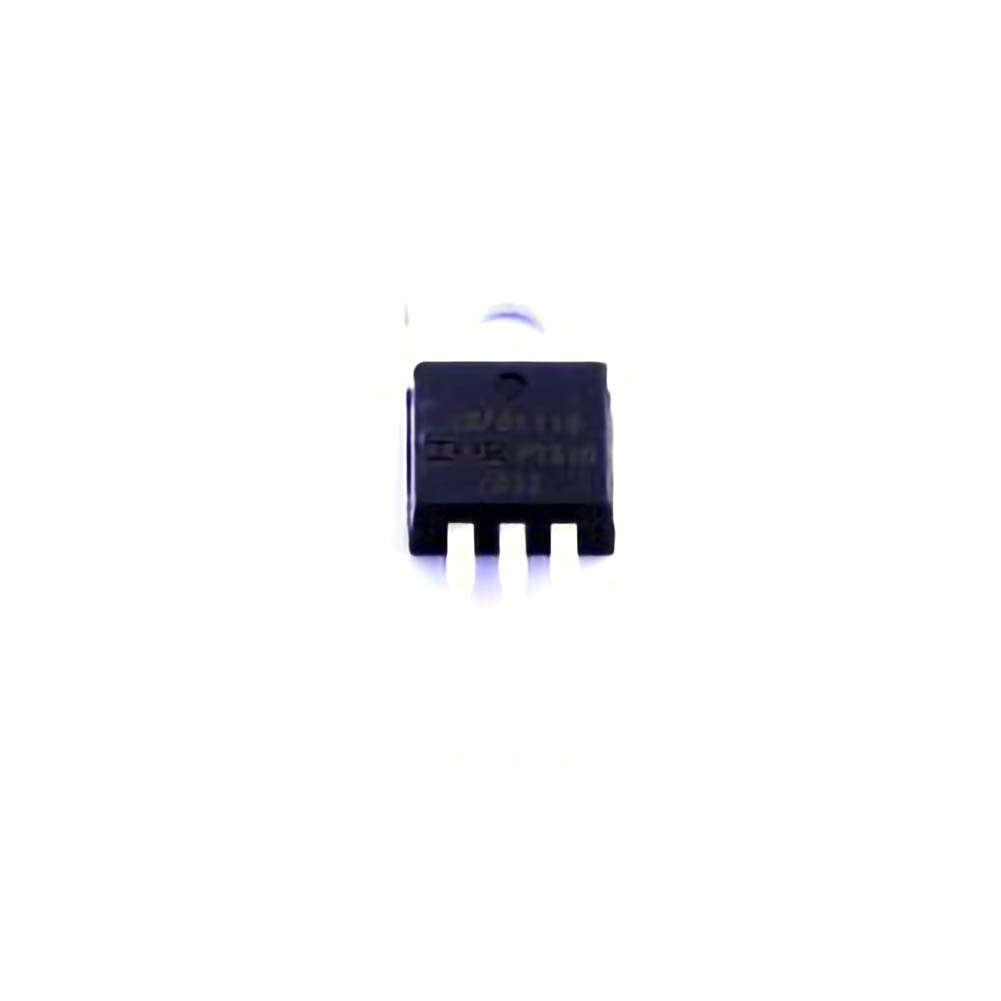

Overview of IRFB4110PBF MOSFET
The IRFB4110PBF is a MOSFET designed specifically for high-power switching applications. It boasts a maximum drain-source voltage (Vds) of 100V, a continuous drain current (Id) of 120A, and a low Rds(on) value of just 0.0026 ohms. These characteristics make it an ideal choice for high-efficiency applications where low conduction losses and fast switching times are critical. The MOSFET is capable of handling high-power loads while maintaining thermal stability and efficiency, even under demanding conditions.
Its suitability for high-speed switching is also enhanced by its low gate charge, which results in reduced switching losses and higher efficiency in power conversion systems. This makes the IRFB4110PBF a crucial component in various applications such as power supplies, motor control circuits, and DC-DC Converters .
Key Applications in High-Power Switching Circuits
1. Power Supplies
The IRFB4110PBF MOSFET is widely used in both AC-DC and DC-DC power supplies. In power supply designs, efficiency is a critical factor, and MOSFETs like the IRFB4110PBF offer low on-resistance (Rds(on)), allowing for minimal power dissipation during operation. This results in lower heat generation and greater system reliability.
For instance, in a high-frequency switch-mode power supply (SMPS), the IRFB4110PBF can be used as the primary switch. During operation, the MOSFET rapidly switches between the conducting and non-conducting states, allowing for the regulation of voltage and current. The low gate charge and high switching speed make the IRFB4110PBF particularly effective in high-frequency applications, such as in server power supplies or telecommunications equipment.
2. Motor Control Circuits
Another key application of the IRFB4110PBF is in motor control circuits, particularly for high-power electric motors such as those used in industrial machinery or electric vehicles (EVs). In these systems, MOSFETs are used to switch the current on and off rapidly to control the direction and speed of the motor.
The IRFB4110PBF's high current handling capability and low on-resistance make it an ideal choice for these demanding applications. By using MOSFETs in a pulse-width modulation (PWM) scheme, motor control circuits can efficiently regulate the power supplied to the motor, reducing energy losses and improving system performance. The low switching losses of the IRFB4110PBF also help prevent excessive heating and maintain optimal operation over long periods.
3. DC-DC Converters
DC-DC converters, which are widely used in renewable energy systems, battery chargers, and portable electronic devices, require MOSFETs that can handle high currents and maintain low conduction losses. The IRFB4110PBF is often used in the switching stages of these converters, where its ability to quickly switch between on and off states allows for efficient conversion of voltage levels.
In buck converters, for example, the MOSFET acts as the primary switch that controls the flow of energy to the load. The low on-resistance of the IRFB4110PBF minimizes energy losses, while its high-speed switching performance ensures that the conversion process occurs with minimal delay. Additionally, in boost converters, the MOSFET is responsible for increasing the output voltage, and its ability to efficiently handle high currents is crucial in ensuring that the converter operates within its optimal parameters.
4. Inverters for Solar Power Systems
The integration of renewable energy sources such as solar power into the grid requires highly efficient power conversion systems. Inverters, which convert the DC power from solar panels into AC power suitable for grid use, require high-performance switching devices to ensure maximum efficiency.
The IRFB4110PBF is frequently used in the inverter circuits of solar power systems due to its ability to handle high currents with minimal heat generation. When used in the switching stage of an inverter, the MOSFET helps regulate the conversion process and ensures that the energy from the solar panels is transferred efficiently to the grid.
Why Choose IRFB4110PBF for High-Power Switching Circuits?
Several key features make the IRFB4110PBF an attractive choice for high-power switching circuits. These include:
High Efficiency: Its low Rds(on) reduces power loss during conduction, and its low gate charge minimizes switching losses, leading to higher overall efficiency in power conversion applications.
High Current Handling: With a continuous drain current rating of up to 120A, it can handle substantial power loads without degradation of performance, making it suitable for demanding applications such as motor control and power supplies.
Thermal Stability: The MOSFET is designed to operate efficiently at higher temperatures, with an impressive thermal performance that ensures reliable operation in power-intensive environments.
Fast Switching: The IRFB4110PBF offers rapid switching speeds, essential for high-frequency applications where performance and efficiency are paramount.
Low Gate Charge: The low gate charge results in reduced switching losses and better thermal management, increasing the overall efficiency of the system.
Debugging and Troubleshooting IRFB4110PBF in High-Power Switching Circuits
While the IRFB4110PBF offers exceptional performance in high-power switching applications, like all power electronics components, it may encounter issues during implementation. Debugging these issues is critical to ensuring that the system performs optimally. In this section, we will discuss common issues that engineers may face when using the IRFB4110PBF in high-power switching circuits, along with troubleshooting tips.
Common Issues in IRFB4110PBF Circuits
1. Overheating of the MOSFET
One of the most common problems in high-power switching circuits is overheating. Overheating can be caused by excessive current flow through the MOSFET or inadequate heat dissipation in the circuit. While the IRFB4110PBF has impressive thermal performance, poor PCB design, insufficient heatsinking, or high ambient temperatures can still result in thermal runaway.
Troubleshooting Tip: To prevent overheating, ensure that the MOSFET is adequately cooled. Use a high-quality heatsink and consider optimizing the PCB layout to improve thermal management. Additionally, check the current ratings and ensure that the MOSFET is not being overstressed.
2. Gate Drive Issues
The IRFB4110PBF requires proper gate drive to function optimally. If the gate voltage is too low or if the gate driver is not able to supply sufficient current, the MOSFET may fail to turn on or off fully, leading to inefficient switching and potentially damaging the device.
Troubleshooting Tip: Verify that the gate drive voltage is within the recommended range for the IRFB4110PBF (typically 10-20V). Ensure that the gate driver is capable of supplying enough current to switch the MOSFET on and off quickly. Adding a gate resistor to limit the gate charging current can also help reduce oscillations and improve switching performance.
3. Overvoltage or Undervoltage Protection
The IRFB4110PBF has a maximum Vds rating of 100V, and exceeding this can result in MOSFET failure. In high-power circuits, voltage spikes or transients may cause the voltage to exceed this threshold, leading to permanent damage to the MOSFET.
Troubleshooting Tip: Use appropriate overvoltage protection circuitry, such as clamping diodes or transient voltage suppressors ( TVS ), to protect the MOSFET from voltage spikes. Additionally, ensure that the power supply is stable and does not exceed the MOSFET's voltage ratings.
4. Inadequate Switching Speed
In some circuits, especially those operating at high frequencies, inadequate switching speed can lead to increased switching losses and reduced efficiency. The IRFB4110PBF is designed for fast switching, but if the gate drive is slow or if parasitic inductances are present, this can degrade performance.
Troubleshooting Tip: Optimize the gate drive circuitry to ensure fast switching transitions. Minimize the parasitic inductances by carefully designing the PCB layout and using short, thick traces for the gate drive and switching paths. You may also want to add a snubber circuit to suppress switching noise and reduce ringing.
5. Increased Power Losses
Excessive power losses in the MOSFET can result from high Rds(on), slow switching, or poor thermal management. While the IRFB4110PBF is designed to minimize power losses, improper system design or component mismatches can lead to excessive heating and reduced performance.
Troubleshooting Tip: Monitor the voltage drop across the MOSFET during operation. If the voltage drop is higher than expected, the MOSFET may not be fully turned on, indicating a potential issue with the gate drive or insufficient cooling. Also, verify that the MOSFET is operating within its specified limits.
Conclusion
The IRFB4110PBF is a powerful and efficient MOSFET for high-power switching circuits. Its low Rds(on), high current handling, and fast switching capabilities make it a go-to choice for applications ranging from power supplies to motor control and DC-DC converters. However, like all components, careful attention must be paid to proper design and debugging to ensure optimal performance. By following the troubleshooting tips provided, engineers can overcome common issues such as overheating, gate drive problems, and excessive power losses, ensuring the reliability and longevity of their high-power switching circuits.
