Understanding the PN5321A3HN/C106 and Common Issues
The NXP PN5321A3HN/C106 is a versatile and widely-used module for Near Field Communication (NFC) and Radio Frequency Identification ( RF ID) applications. It is equipped to handle a wide range of tasks, from reading RFID Tags to enabling NFC communication between devices. However, like any electronic module, users may face issues during integration and operation. Understanding the common problems associated with the PN5321A3HN/C106 and knowing how to troubleshoot them is crucial for ensuring smooth operation in projects.
In this first part of the article, we’ll examine the key features of the PN5321A3HN/C106 and discuss common problems users encounter during installation and operation.

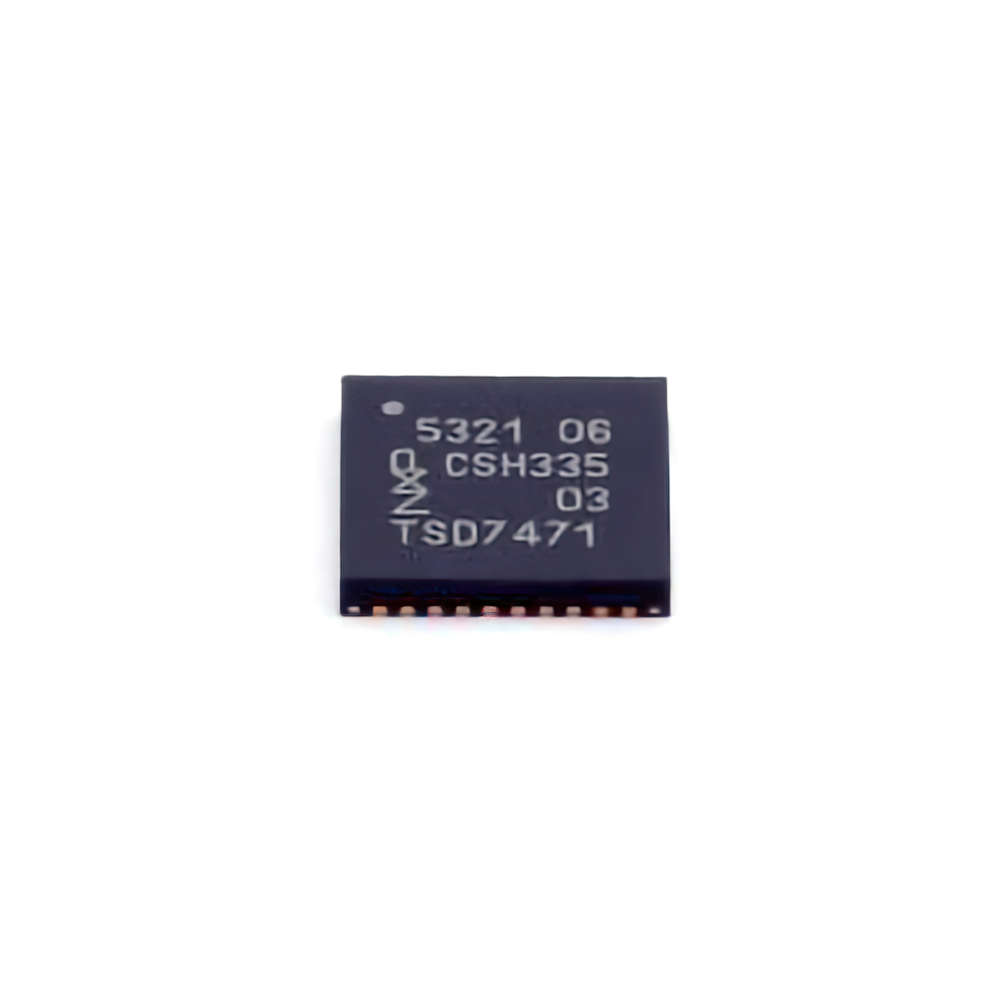

What is the PN5321A3HN/C106?
Before diving into troubleshooting, it’s important to understand what the PN5321A3HN/C106 offers. This module integrates the PN532 NFC/RFID chip, which is known for its efficiency in handling communication protocols such as ISO14443, ISO18000-3, and FeliCa. It can be used for applications ranging from simple access control to complex payment systems. The PN5321A3HN/C106 typically communicates with a microcontroller over I2C, SPI, or UART interface s, making it highly adaptable for different hardware setups.
Common Issues with the PN5321A3HN/C106
While the PN5321A3HN/C106 is a reliable module, users may experience several issues during setup or operation. Here are some common challenges:
Power Supply Problems
One of the most common issues users encounter is insufficient or unstable power supply. The PN5321A3HN/C106 operates at a voltage range of 3.3V to 5V, and fluctuating power can result in unstable communication or failure to detect NFC tags.
Solution: Ensure that your power supply provides a stable voltage within the recommended range. If you are powering the module from a microcontroller, ensure that the regulator can provide enough current. Using a separate power supply for the module, or adding decoupling capacitor s close to the module, can also help mitigate power issues.
Connection Issues
The module’s interface (I2C, SPI, or UART) needs to be correctly connected to your microcontroller. Wiring errors are a common cause of non-functioning modules.
Solution: Double-check your wiring to ensure proper connections between the module and the microcontroller. Verify the correct pins for SDA/SCL (I2C), MOSI/MISO (SPI), or RX/TX (UART) are connected properly. Also, make sure that the ground (GND) pins are connected between the two devices.
Software or Library Issues
The PN5321A3HN/C106 often requires specific libraries to function correctly. If the software isn’t set up properly, the module might not communicate effectively with the microcontroller, leading to errors.
Solution: Make sure you’re using the appropriate library for your setup. For Arduino-based projects, the Adafruit PN532 library is a popular choice. For other platforms, verify that the library you’re using supports the correct communication protocol and that it’s up to date.
Tag Detection Failures
Users often report that the PN5321A3HN/C106 fails to read RFID tags, or it only reads certain tags intermittently. This issue may be caused by multiple factors such as environmental interference, incorrect antenna alignment, or software configuration.
Solution: Check if the antenna is properly positioned and free from interference. The PN5321A3HN/C106 has an embedded antenna, but external factors can still affect its performance. Also, ensure that the tags you are using are supported by the module’s frequency range (typically 13.56 MHz).
Incompatibility with Tags
The module might fail to read certain tags, especially if they are of a different type or frequency. Some users report that they can’t read MIFARE or other popular tags.
Solution: Confirm that the tags you are using are compatible with the module. The PN5321A3HN/C106 supports ISO 14443A/B, FeliCa, and other common standards, but not all tags are supported. Check the datasheet to verify the supported standards and frequencies.
Low Communication Speed
In some cases, communication between the PN5321A3HN/C106 and the microcontroller may be slower than expected. This could be due to a mismatch in communication speed settings.
Solution: Check the communication baud rate (for UART) or clock speed (for SPI or I2C). Ensure that both the module and the microcontroller are configured for the same rate. If necessary, reduce the baud rate or clock speed to improve reliability.
Diagnosing and Solving Connectivity Issues
Connectivity problems can stem from various sources, such as incorrect wiring, driver issues, or software conflicts. Here’s a deeper look at how to address these problems:
Verify Physical Connections
First, check all physical connections to ensure they are secure. Loose wires or poorly connected headers can easily cause communication failures.
Check Voltage Levels
Incorrect voltage levels can cause intermittent behavior or failure to detect NFC tags. Use a multimeter to check the power supply and confirm that it is within the recommended operating range.
Test with Known Working Components
If you’re unsure whether the module is the cause of the issue, try testing with a different microcontroller or swapping out cables. This can help isolate the problem.
Use Serial Monitor for Debugging
Many development environments, like the Arduino IDE, provide a serial monitor that can be used for debugging. Print status messages or error codes from your code to the serial monitor to gain insights into what might be wrong.
Testing the Module with Basic Examples
When troubleshooting, it’s helpful to run basic example code provided by the module’s library. For the PN5321A3HN/C106, Adafruit offers simple sketches to test the module’s functionality. These examples can help determine if the issue lies with the hardware setup, the library, or your code.
Advanced Troubleshooting and Long-Term Solutions for the PN5321A3HN/C106
In this second part of the article, we delve into more advanced troubleshooting techniques and long-term solutions to ensure the PN5321A3HN/C106 operates efficiently over time. While part one covered common issues and their basic solutions, this section will address deeper, more intricate problems and offer more permanent solutions for optimal performance.
Handling Interference and Signal Integrity
RFID and NFC technologies are sensitive to interference, which can disrupt communication between the PN5321A3HN/C106 and NFC tags or devices. Interference can come from various sources, including power lines, electronic devices, or even other nearby RFID/NFC systems.
Solution: To reduce interference, make sure the module is placed in a suitable environment, away from high-power devices or metal surfaces. You may also consider using ferrite beads on the power lines to reduce noise and adding capacitors for smoother voltage regulation. Shielding the module with materials that don’t block the NFC signal but reduce external noise (such as conductive enclosures) can also help.
Overcoming Environmental Factors
Environmental conditions such as temperature fluctuations or humidity can affect the module’s performance. The PN5321A3HN/C106 is designed to operate in a wide range of conditions, but extreme environments may cause issues.
Solution: If the module will be used in harsh environments, consider enclosing it in a protective casing that prevents exposure to excessive heat, moisture, or dust. Additionally, monitor the temperature around the module and ensure that it stays within the recommended operating range, typically 0°C to 70°C.
Firmware and Library Updates
Firmware updates for the PN5321A3HN/C106 may resolve bugs, improve compatibility with newer tags, and provide better performance. Similarly, the software library used to interface with the module should also be updated regularly to avoid compatibility issues with the latest hardware revisions.
Solution: Regularly check the manufacturer’s website or the community support forums for firmware and library updates. Updating the library or firmware may resolve issues that are related to software bugs or changes in the NFC tag technology.
Ensuring Long-Term Stability
To maintain the long-term stability and reliability of the PN5321A3HN/C106, make sure to:
Perform Regular Maintenance: Clean the antenna and check the wiring and power supply at regular intervals.
Test System Performance: Periodically test the module with different tags to ensure consistent performance.
Monitor Power Supply: Ensure that the power supply remains stable over time, especially if the system is deployed in an industrial or outdoor setting.
Upgrading to External Antennas
Although the PN5321A3HN/C106 comes with an integrated antenna, in some cases, you may want to extend the range or improve the tag detection capabilities. An external antenna can enhance the performance, especially for applications requiring a broader detection range.
Solution: The module supports external antennas, and you can connect one using the appropriate pins on the PCB. Make sure the antenna is compatible with the PN532’s frequency range, and consult the datasheet for antenna specifications.
Conclusion
The PN5321A3HN/C106 is a powerful and flexible NFC/RFID module that can serve a wide range of applications, from access control systems to contactless payments. While the module is generally reliable, users may encounter common issues related to power supply, connectivity, and tag detection. Understanding the root causes of these problems and applying the appropriate troubleshooting solutions can save time and effort in the development process.
By following the tips provided in this guide, you can quickly diagnose and resolve common issues, as well as implement long-term solutions for reliable performance. Whether you’re working on a personal project or developing a professional NFC/RFID application, the PN5321A3HN/C106 remains a valuable tool in your electronics toolkit.
