Introduction to MCP2515 T-I/ST

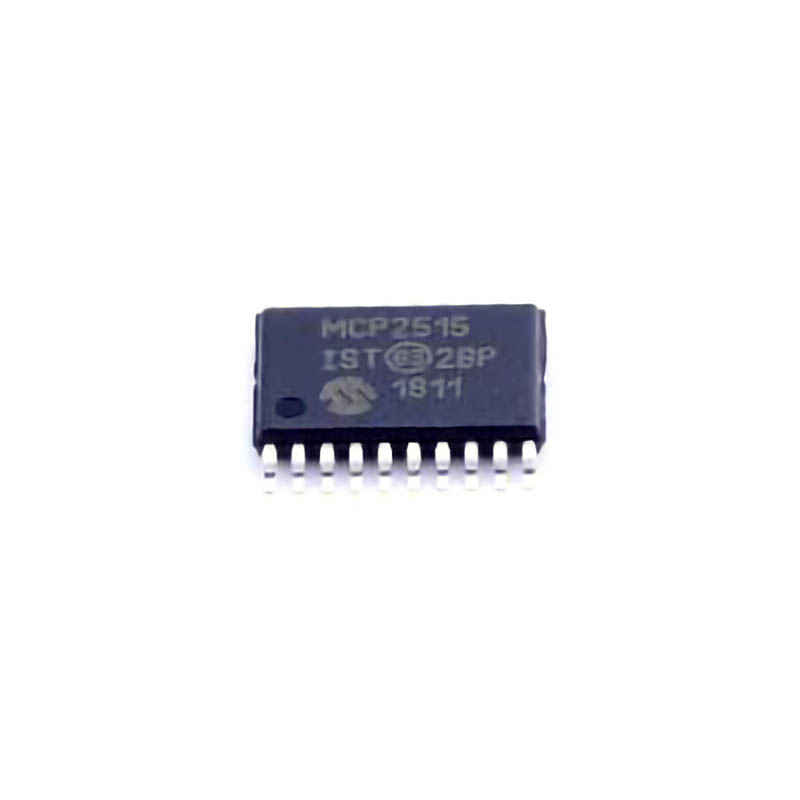

The MCP2515T-I/ST is a high-performance, stand-alone Controller Area Network (CAN) controller manufactured by Microchip Technology. It allows microcontrollers to communicate over a CAN network without requiring complex peripheral integration, which is highly valuable for a wide range of embedded systems applications, from automotive electronics to industrial automation. The device provides a bridge between microcontrollers and CAN networks, handling the low-level CAN protocol, including message filtering, transmission, and reception.
While the MCP2515T-I/ST is widely regarded as reliable and efficient, it’s not uncommon for users to face issues when integrating it into their systems. This article explores some of the most frequent problems users encounter and provides troubleshooting strategies to address these challenges effectively.
Common Problems and How to Troubleshoot the MCP2515T-I/ST
1. No Communication on the CAN Bus
One of the most common issues when working with the MCP2515T-I/ST is a lack of communication on the CAN bus. This can be a result of various factors, including incorrect wiring, configuration issues, or Power supply problems. To troubleshoot this issue, consider the following steps:
Check Wiring Connections: Ensure that all physical connections are secure. This includes the CANH (CAN high) and CANL (CAN low) lines, as well as the Vdd and GND pins. A loose or broken wire can prevent the controller from communicating with the network.
Verify Power Supply: Confirm that the MCP2515T-I/ST is receiving the proper power supply voltage. The device typically operates at 5V, but variations can cause instability or communication failure. Use a multimeter to measure the voltage at the Vdd pin and ensure it matches the expected value.
Inspect the CAN Bus Termination: The CAN bus must be properly terminated at both ends of the network. A 120-ohm resistor should be placed between the CANH and CANL lines at each end of the bus. Missing or incorrectly placed termination resistors can lead to signal reflections and communication failure.
Check for Bus Errors: Using a diagnostic tool such as a CAN bus analyzer can help identify any errors on the network. Common bus errors include frame errors, bit errors, or acknowledgment errors, which can prevent successful communication.
2. MCP2515T-I/ST Not Initializing
Sometimes, the MCP2515T-I/ST may fail to initialize properly after power-up, and communication will not be established with the connected microcontroller. In this case, follow these steps:
Review Configuration Registers: The MCP2515T-I/ST has several configuration registers that must be correctly set during initialization. Check that the CNF1, CNF2, and CNF3 registers are configured according to the desired bit rate and other settings. Incorrect configurations can cause initialization failures.
Check the Reset Pin: The MCP2515T-I/ST has an external reset pin (RESET). If the reset pin is not held low during power-up for long enough, the device might not initialize properly. Make sure the reset sequence is implemented correctly in your code or hardware.
Verify SPI Communication: The MCP2515T-I/ST communicates with the microcontroller via SPI (Serial Peripheral interface ). Ensure that the SPI interface is configured correctly on the microcontroller side. Double-check the Clock polarity, phase, and SPI mode settings. Incorrect SPI settings can lead to failed communication and initialization problems.
3. Intermittent Communication Loss
Another common problem with the MCP2515T-I/ST is intermittent communication loss, where the CAN controller works for some time but then stops sending or receiving messages. The following troubleshooting steps can help resolve this issue:
Check for Bus Overload: If the bus is too crowded with messages, or if there are too many nodes trying to communicate at once, it could lead to congestion and message loss. Check the number of devices on the CAN bus and ensure that the message frequency is within the acceptable limits.
Verify Message Buffer Overflow: The MCP2515T-I/ST has several message buffers. If these buffers become full and new messages arrive before the current ones are processed, it can result in loss of messages. Ensure that your microcontroller is reading and processing messages from the MCP2515T-I/ST as they arrive to avoid buffer overflows.
Examine Power Supply Fluctuations: Unstable or noisy power supplies can cause the MCP2515T-I/ST to behave unpredictably. Power supply issues can lead to intermittent communication problems. Make sure the power supply to the MCP2515T-I/ST is stable and free of noise.
4. CAN Bus Interference or Noise
CAN networks, especially those used in automotive or industrial environments, can sometimes experience electromagnetic interference ( EMI ), which can disrupt communication. Interference can cause bit errors or message corruption, leading to unreliable data transmission. Here's how to mitigate noise and interference issues:
Use Proper Shielding: If the MCP2515T-I/ST is operating in an environment with high levels of EMI, consider using shielded cables for the CANH and CANL lines. Shielding helps reduce external noise that could interfere with signal transmission.
Add Decoupling capacitor s: Adding decoupling capacitors close to the power supply pins of the MCP2515T-I/ST can help filter out noise and stabilize the power supply. This can improve the overall reliability of the communication.
Use Differential Signal Transmission: The CAN protocol is designed to use differential signaling, which is less prone to noise than single-ended signals. Ensure that both the CANH and CANL lines are properly routed to minimize susceptibility to external interference.
5. Error Handling and Diagnostic Strategies
The MCP2515T-I/ST provides diagnostic flags and error handling mechanisms that can help you identify and resolve issues on the CAN bus. Some useful strategies include:
Monitor Error Flags: The MCP2515T-I/ST has a set of error flags that indicate various types of errors such as stuff errors, CRC errors, and form errors. By regularly checking these flags, you can pinpoint the cause of communication failures.
Enable the Error Interrupt: The MCP2515T-I/ST allows you to configure interrupts for different error conditions. By enabling these interrupts, you can be notified when an error occurs and take appropriate action, such as resetting the device or reinitializing communication.
Use CAN Bus Analyzers: If you're still encountering issues, a CAN bus analyzer can provide valuable insight into the state of the network. These tools capture CAN frames, show any errors on the bus, and help identify specific issues that might not be immediately visible through software diagnostics.
Advanced Troubleshooting Tips for MCP2515T-I/ST
While the basic troubleshooting methods outlined above can resolve many common issues with the MCP2515T-I/ST, more advanced techniques may be required for complex or elusive problems. Here are some additional tips and techniques to address more challenging situations.
1. Testing the MCP2515T-I/ST in Isolation
If you suspect that the problem lies with the MCP2515T-I/ST itself and not the surrounding system, testing the device in isolation can help confirm this. Disconnect the MCP2515T-I/ST from other components, such as the microcontroller, and use a known working CAN transceiver and other CAN devices.
Stand-Alone CAN Network: Set up a small, isolated CAN network with just the MCP2515T-I/ST and another device, such as a CAN-to-USB adapter or a second microcontroller. This will help determine whether the problem is related to the MCP2515T-I/ST or some other part of the system.
Test with Known Good Configuration: Use a known, working configuration for the MCP2515T-I/ST. This includes verified SPI settings, message filters , and baud rates. This can help isolate the problem and rule out software configuration errors.
2. Using External Oscillators for More Stable Timing
While the MCP2515T-I/ST includes an internal clock, some applications may benefit from using an external crystal oscillator for more accurate and stable timing. The external oscillator provides better clock stability and can help prevent timing-related errors in communication.
Selecting a Suitable Oscillator: The MCP2515T-I/ST supports external oscillators up to 40 MHz. If your application requires high timing accuracy or operates in a noisy environment, consider using a high-quality external crystal oscillator.
Clock Configuration: Make sure that the clock settings in the MCP2515T-I/ST are correctly configured to match the external oscillator. Any mismatch between the oscillator frequency and the configured clock source can lead to communication errors.
3. Firmware Updates and Bug Fixes
Firmware issues can sometimes cause unexpected behavior in the MCP2515T-I/ST. Checking for the latest firmware updates from Microchip is always a good practice. Manufacturers regularly release updates to fix bugs, improve performance, and enhance compatibility with other components.
Check Microchip’s Website: Visit the official Microchip website and check for any firmware updates, errata sheets, or application notes related to the MCP2515T-I/ST.
Update Firmware: If a firmware update is available, ensure that you are following the correct procedure to update the device. This may involve using an SPI programmer or a bootloader for the update process.
4. Advanced Debugging with Logic Analyzers
For more complex issues, a logic analyzer can be invaluable in diagnosing problems with the MCP2515T-I/ST. A logic analyzer allows you to capture and decode the SPI communication, CAN messages, and any error flags, providing a detailed view of what's happening on the bus.
SPI Debugging: Use a logic analyzer to monitor the SPI lines (MOSI, MISO, SCK, and CS) and check if the correct data is being sent and received between the microcontroller and the MCP2515T-I/ST.
CAN Bus Monitoring: Capture CAN bus traffic and look for anomalies, such as missing ACK bits, message errors, or incorrect data. Analyzing the CAN frames in detail can reveal the root cause of communication failures.
5. Environmental Considerations
Environmental factors such as temperature extremes, electromagnetic interference, and voltage fluctuations can have a significant impact on the performance of the MCP2515T-I/ST. Ensure that your hardware is housed in a well-designed enclosure that provides adequate protection against these factors.
Thermal Management : If your system operates in a high-temperature environment, consider adding heat sinks or ensuring proper ventilation around the MCP2515T-I/ST to prevent overheating.
Electromagnetic Compatibility: In environments with significant electromagnetic interference, such as automotive or industrial applications, ensure that your system is compliant with electromagnetic compatibility (EMC) standards. Shielding and grounding techniques can help reduce the impact of EMI on communication.
Conclusion
The MCP2515T-I/ST is a highly capable CAN controller, but like any electronic device, it may encounter issues during operation. Understanding common problems and knowing how to troubleshoot them is essential for ensuring that your CAN network runs smoothly. By following the techniques outlined in this article, you can quickly identify and resolve issues related to wiring, configuration, power supply, communication, and more.
With the right diagnostic tools, attention to detail, and adherence to best practices, you can keep your MCP2515T-I/ST-based systems performing at their best, ensuring reliable and efficient communication in your embedded applications.
