Common Issues with LM51551QDSSRQ1 and Troubleshooting Steps

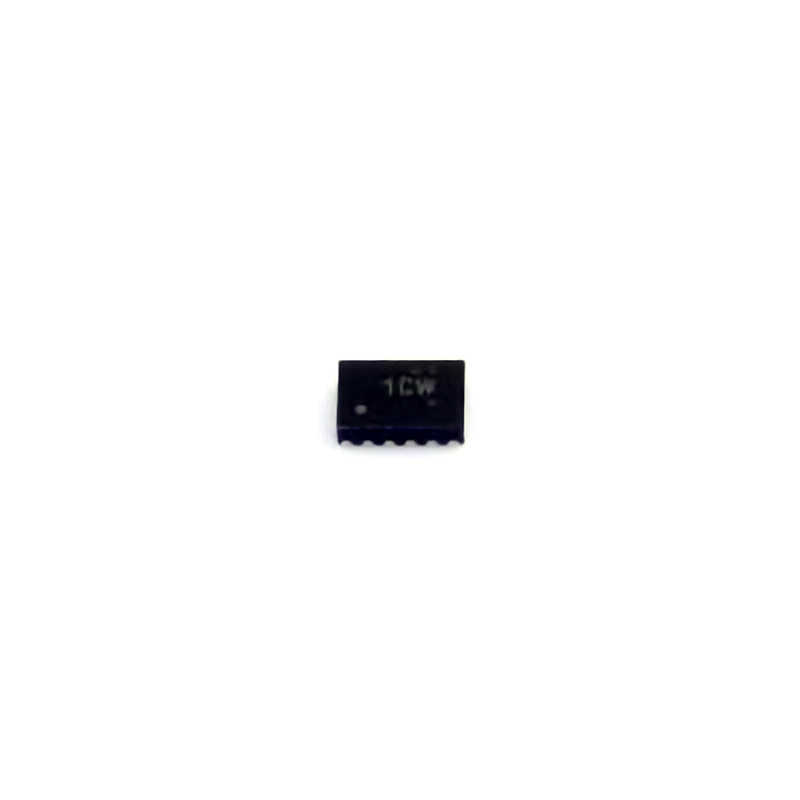

The LM51551QDSSRQ1 from Texas Instruments is a high-efficiency buck converter designed for various Power supply applications. Its compact form factor, high efficiency, and robust performance make it an attractive choice for both industrial and consumer electronics. However, as with any power supply solution, users may encounter certain operational issues or malfunctions. In this section, we will discuss the most common problems faced with this component and provide troubleshooting steps to help resolve them.
1. Output Voltage Instability
One of the most common issues reported with the LM51551QDSSRQ1 is output voltage instability, which can manifest as fluctuations or irregularities in the output voltage. This can occur due to several reasons:
Incorrect Feedback Loop Compensation: The feedback loop is responsible for maintaining a stable output voltage by comparing the output voltage to a reference and adjusting the duty cycle of the switching transistor accordingly. If the compensation components, such as resistors and capacitor s, are incorrectly chosen or improperly placed, the loop may fail to stabilize the output voltage.
Poor PCB Layout: The layout of the power supply’s PCB plays a critical role in minimizing noise and ensuring stable operation. If the feedback path is interfered with by high-current traces or other noise sources, it can lead to voltage instability.
Excessive Ripple: High ripple on the output voltage can also cause instability, especially in sensitive circuits. Ripple can arise from inadequate filtering or problems in the switching process itself.
Solution:
Verify Compensation Network: Check the feedback components, especially the compensation network. Ensure they are correctly selected and placed according to the datasheet recommendations for the LM51551QDSSRQ1.
Review PCB Layout: Follow the best practices for high-frequency switching regulators. Keep the feedback loop short and avoid routing high-current traces near the feedback path.
Improve Output Filtering: Adding more capacitance at the output (e.g., low ESR ceramic capacitors) or adjusting the value of the inductors can help reduce ripple and improve voltage stability.
2. Overheating and Thermal Shutdown
The LM51551QDSSRQ1 is designed to operate efficiently, but overheating can still be an issue under certain conditions. When the converter operates beyond its thermal limits, it may shut down to prevent damage to the internal components.
High Load Current: If the converter is subjected to loads beyond its rated current, it can lead to excessive power dissipation, causing the device to overheat. Inadequate heat sinking or poor airflow around the component can also exacerbate this problem.
Inadequate Input Voltage: The LM51551QDSSRQ1 requires a specific input voltage range to operate efficiently. If the input voltage is too low or too high, the converter may operate inefficiently, leading to heat buildup.
Solution:
Reduce Load Current: Ensure the load connected to the buck converter is within the specified range for the LM51551QDSSRQ1. Overloading the converter can lead to thermal issues.
Improve Cooling: Add heat sinks or improve airflow around the converter to help dissipate heat. Using a low-resistance PCB and ensuring the thermal vias are well designed can also help manage thermal performance.
Ensure Proper Input Voltage: Check that the input voltage is within the recommended operating range. If the input voltage fluctuates or is unstable, consider using additional filtering or a higher-quality power source.
3. Input and Output Voltage Underperformance
Another common issue is that the LM51551QDSSRQ1 may not deliver the expected input or output voltage levels. This issue can arise from a variety of causes, such as incorrect component values or external interference.
Incorrect External Components: The LM51551QDSSRQ1 requires specific external components for proper operation, including inductors, capacitors, and resistors. If the wrong values are chosen, or if the components are of poor quality, the converter’s performance can degrade.
Input Voltage Drop: If the input voltage is insufficient or unstable, the converter will struggle to provide the desired output. This can happen if the input power supply is not capable of delivering the required current or if there is excessive voltage drop due to long or undersized wiring.
Solution:
Double-Check Component Values: Verify that all external components meet the specifications recommended in the datasheet. This includes checking inductance values, capacitance values, and resistors in the feedback network.
Ensure Adequate Input Voltage and Current: Check the input voltage and ensure it remains stable and within the required range. Using high-quality power sources and minimizing wiring losses can help maintain the input voltage.
4. Noise and EMI Issues
Power supply noise and electromagnetic interference (EMI) are common concerns with switching regulators. The LM51551QDSSRQ1 operates at high frequencies, which can generate noise that interferes with sensitive electronics.
Improper Grounding: Insufficient grounding or poor grounding practices in the PCB layout can increase the noise levels and cause instability in the system.
Inadequate Filtering: If the input or output filtering is insufficient, it can result in increased noise and ripple on both the input and output voltages.
Solution:
Improve Grounding: Ensure the power ground and signal ground are properly separated and only connect at a single point (star grounding). Minimize ground bounce by keeping the ground path short and wide.
Enhance Filtering: Add additional filtering capacitors at the input and output. Use a combination of bulk capacitors (e.g., electrolytics) and high-frequency ceramic capacitors to improve noise suppression.
Advanced Troubleshooting and Solutions for LM51551QDSSRQ1
While the basic troubleshooting steps covered earlier address the most common issues, there are more advanced techniques and considerations that can help resolve complex problems or optimize the performance of the LM51551QDSSRQ1. In this section, we will explore some of the more advanced aspects of troubleshooting and provide solutions for dealing with difficult or unusual issues.
5. Buck Converter Synchronization Problems
The LM51551QDSSRQ1 features synchronization capabilities that allow it to operate in sync with an external clock. This feature can be useful in applications where multiple converters need to operate at the same frequency to minimize noise and improve efficiency. However, synchronization issues can arise if the external clock is unstable or improperly configured.
Improper Sync Signal: If the external sync signal is not within the correct voltage range or is noisy, the converter may fail to synchronize properly, leading to instability or erratic behavior.
Incorrect Frequency: If the external sync frequency is too high or too low, it may be outside the operational range of the converter, causing issues with switching performance.
Solution:
Check Sync Signal Quality: Ensure the external synchronization signal is clean, within the specified voltage levels, and free from noise. Use a high-quality clock source with proper filtering to minimize noise.
Adjust Sync Frequency: Verify that the sync signal frequency is within the supported range of the LM51551QDSSRQ1. Refer to the datasheet for the exact frequency limits and adjust the clock generator accordingly.
6. Faulty or Unresponsive Switching Behavior
In some cases, the LM51551QDSSRQ1 may exhibit faulty or unresponsive switching behavior. This can manifest as the converter failing to start, excessive switching losses, or erratic output waveforms.
Faulty MOSFETs or Diodes : The switching performance of the buck converter depends heavily on the MOSFETs and diodes used. Faulty or mismatched components can lead to issues with switching, causing high losses or failure to regulate.
Inadequate Inductor or Capacitor Ratings: Using inductors or capacitors with improper ratings (e.g., insufficient current rating, improper inductance) can cause the converter to operate inefficiently or fail to regulate correctly.
Solution:
Check Switching Components: Inspect the MOSFETs and diodes for proper operation and ensure they are rated for the expected voltage and current levels. Consider replacing them with higher-rated components if necessary.
Verify Inductor and Capacitor Ratings: Ensure that the inductors and capacitors meet the requirements specified in the datasheet for the LM51551QDSSRQ1. Check the current rating of the inductor and ensure the capacitors have low ESR for optimal performance.
7. Using Advanced Diagnostics Tools
When basic troubleshooting techniques are insufficient, advanced diagnostics tools can provide deeper insights into the LM51551QDSSRQ1’s performance. Using tools like oscilloscopes, power analyzers, and thermal cameras can help pinpoint issues that are not immediately visible.
Oscilloscope: Using an oscilloscope to observe the waveform of the output voltage, switching node, or feedback signals can help identify problems like excessive ripple, switching noise, or instability.
Thermal Camera: A thermal camera can help identify hot spots on the PCB or components, which may indicate areas of excessive power dissipation or poor thermal management.
Solution:
Use Oscilloscope for Waveform Analysis: Observe the output voltage waveform, switching node, and feedback loop for any irregularities. Anomalies in the waveform can provide valuable clues as to what might be causing issues.
Monitor Thermal Performance: Use a thermal camera to check for overheating components. If hot spots are identified, adjust the PCB layout, improve cooling, or use components with higher power handling capabilities.
Conclusion
The LM51551QDSSRQ1 is a powerful and efficient buck converter that can handle a wide range of applications, but like any complex component, it is susceptible to a variety of operational issues. By following the troubleshooting steps and solutions outlined in this article, users can diagnose and resolve common issues such as output voltage instability, overheating, and performance underperformance. Advanced diagnostic tools and techniques can also be employed to further fine-tune the system and ensure optimal performance.
By taking a methodical approach to troubleshooting and paying close attention to the LM51551QDSSRQ1’s component selection, layout, and thermal management, users can overcome common challenges and achieve reliable, high-performance power supply solutions.
