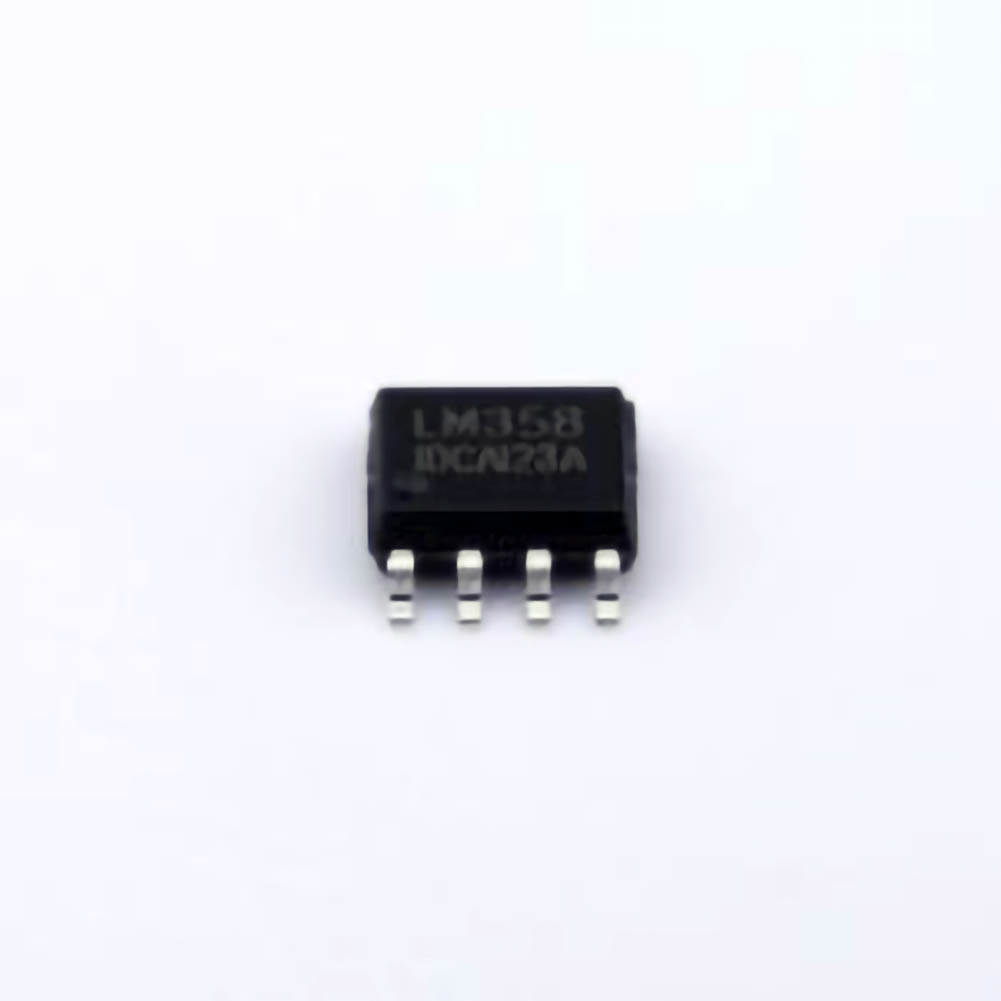

The IDCHIP LM358 is a widely used operational amplifier (op-amp) in many electronics applications. However, like any complex component, it can encounter issues that disrupt its performance. This article explores common troubleshooting tips and solutions for the LM358 , ensuring that engineers and hobbyists can resolve problems effectively.
LM358 , operational amplifier, troubleshooting, electronics, op-amp issues, circuit design, amplifier problems, op-amp performance, electronics repair
Understanding the LM358 and Common Issues
The LM358 is one of the most popular dual operational amplifiers used in analog circuits. Manufactured by Texas Instruments, it features two independent op-amps in a single package, making it a cost-effective and versatile solution for a variety of applications, from signal amplification to filtering, and even comparator circuits. However, as with all electronic components, the LM358 can face issues that affect circuit performance, especially when dealing with more intricate designs or harsh environments. Understanding the common troubleshooting steps for the LM358 can save time, prevent damage to components, and improve overall circuit performance.
1.1. Basics of the LM358 Op-Amp
Before diving into troubleshooting, it’s essential to understand the basic functionality and features of the LM358:
Dual Op-Amp: It contains two independent, high-gain, internally frequency-compensated op-amps.
Voltage Supply: The LM358 can operate on a wide supply voltage range, from 3V to 32V (single supply), or ±3V to ±16V (dual supply).
Low Power Consumption: It has a low input bias current and is designed for low-power applications.
Applications: Commonly used in audio amplifiers, active filters , voltage followers, integrators, and even simple comparators.
Having a clear understanding of the LM358’s characteristics is crucial when troubleshooting. Problems often stem from incorrect wiring, unsuitable power supply configurations, or misuse of the op-amp in a circuit design.
1.2. Common Problems with the LM358
Here are some of the most common issues users encounter when working with the LM358:
No Output Signal: One of the most frequent problems is a complete lack of output signal. This can occur due to incorrect wiring, faulty components, or improper connections between the input and output stages of the op-amp.
Distorted Output: A distorted or clipped output often occurs when the op-amp is pushed beyond its voltage supply limits or when there is excessive feedback resistance.
Increased Power Consumption: If the LM358 starts consuming too much current, it could indicate that the op-amp is in a saturated state or is being overloaded.
Incorrect Gain or Amplification: When the op-amp’s gain doesn’t match expectations, it could be due to incorrect feedback components or improper biasing.
Oscillations or Unstable Behavior: Sometimes, the LM358 can experience oscillations or erratic behavior, which may be caused by improper grounding, incorrect decoupling capacitor s, or parasitic capacitance in the circuit layout.
1.3. Basic Troubleshooting Steps
Whenever the LM358 exhibits problems, it’s essential to approach the troubleshooting process methodically. Below are some basic steps to follow:
Check the Power Supply: The first step is always to verify the power supply to the LM358. Ensure that the correct voltage is being supplied, both for single and dual power configurations. Any fluctuation or absence of voltage could cause the op-amp to fail.
Inspect the Circuit Connections: Verify that all connections are correct, particularly the feedback loops and input/output pins. Inaccurate wiring is a frequent cause of issues.
Measure the Input and Output Voltages: Use a multimeter or oscilloscope to measure the voltages at the input and output pins. The input should correspond to the expected signal, while the output should reflect an amplified version of the input (for amplification circuits).
Review the Feedback Components: Incorrect values of resistors or capacitors in the feedback loop can lead to instability or incorrect amplification. Check all component values and replace any that might be faulty.
Test for Short Circuits: Short circuits can prevent the op-amp from functioning properly and cause damage. Check for shorts across the power supply rails, especially if the op-amp is overheating.
1.4. Problem: No Output Signal
One of the most frustrating issues when working with the LM358 is a complete lack of output signal. This problem is usually indicative of one of the following causes:
Incorrect Power Supply: The LM358 requires a correct voltage supply to operate. If the supply is not within the specified range, the op-amp will not function properly. Check the supply voltages with a multimeter to ensure they fall within the acceptable range.
Faulty Connections: Often, the lack of output occurs because of broken or misconnected wires. Ensure that the inverting and non-inverting inputs are connected correctly, and that there is no loose or disconnected wire.
Open Circuit Feedback Loop: If the feedback network is not properly connected, the op-amp will not amplify the signal. Check that all resistors, capacitors, and other components in the feedback loop are intact and correctly placed.
1.5. Problem: Distorted Output Signal
Another common issue is when the output signal appears distorted or clipped. This can result from:
Exceeding Voltage Swing Limits: The LM358 cannot output voltages that exceed the power supply rails. If the output signal is pushed beyond these limits, it will be clipped. Ensure that the signal amplitude is within the supply limits.
Incorrect Feedback Loop: If the feedback resistance is too high, it can cause the op-amp to saturate or distort the output. Adjusting the feedback resistor to match the desired gain can resolve this problem.
1.6. Problem: Unstable Oscillations
Oscillations or instability can occur in the LM358 circuit, particularly when dealing with high frequencies. This can happen due to:
Lack of Proper Decoupling: Decoupling capacitors help stabilize the op-amp’s power supply. Without adequate decoupling, the op-amp may oscillate. Adding small ceramic capacitors (typically 0.1 µF) close to the power pins can help stabilize the circuit.
Parasitic Capacitance: Layout issues, such as long leads or improper grounding, can lead to parasitic capacitance, which may cause the op-amp to oscillate. Minimizing the length of the traces and ensuring proper grounding can mitigate this issue.
Advanced Troubleshooting and Solutions for the LM358
While basic troubleshooting steps can often resolve the majority of issues with the LM358, there are instances when more advanced techniques are required. Here, we will dive deeper into solutions for more complex issues, including those related to specific applications such as filtering, amplifying, and voltage followers.
2.1. Identifying and Resolving Noise Issues
Noise can be a significant problem, especially when using the LM358 in precision applications such as active filters or low-level signal amplification. Noise can manifest as unwanted fluctuations in the output signal, leading to inaccurate results.
Power Supply Noise: One common source of noise in op-amp circuits is power supply fluctuations. Using low-noise regulators or adding additional decoupling capacitors (larger values like 10 µF) across the power supply rails can reduce this.
Layout Considerations: Ensuring a well-designed PCB layout is crucial for minimizing noise. Keep analog and digital traces separate, and use ground planes to prevent noise coupling into sensitive parts of the circuit.
2.2. Overcoming Gain Issues
In certain applications, you may find that the gain is either too high or too low, leading to poor performance. Here are some strategies for resolving gain-related issues:
Incorrect Feedback Resistor Values: The gain of the LM358 is primarily determined by the resistors in the feedback loop. Check that these resistors are of the correct values and are within tolerance.
Gain Bandwidth Limitations: The LM358 has a limited gain-bandwidth product (typically around 1 MHz). If you’re working at high frequencies, ensure that the circuit design accommodates this limitation. You may need to adjust the values of capacitors in the feedback network or use a different op-amp with higher bandwidth.
2.3. Improving Output Stability
If the LM358 output is unstable or drifts unexpectedly, the issue may lie in one of several areas:
Input Offset Voltage: The LM358 is not perfect and has an inherent input offset voltage that can cause output drift, especially when the op-amp is used in a high-precision application. To reduce this effect, you can use external offset nulling resistors, or choose an op-amp with a lower offset voltage for sensitive applications.
Load Impedance: The LM358 is designed to drive light loads. If you’re attempting to drive a heavy load or a capacitive load, it may cause the op-amp to become unstable. Use a buffer stage, such as a follower circuit, to isolate the op-amp from the load.
2.4. Power Supply Considerations
The LM358 operates within a wide voltage range, but issues can arise if the supply is noisy, unstable, or improperly configured:
Voltage Rails: Ensure that the supply voltage is stable and well-regulated. If you’re using a single supply configuration, ensure the ground is correctly referenced, and the op-amp is within its specified voltage range.
Battery-Powered Circuits: For battery-powered circuits, ensure that the battery is fresh and that the op-amp is not being overloaded, as this can lead to voltage sag, affecting performance.
2.5. Using the LM358 in Special Applications
The LM358 is commonly used in filtering and amplifying signals, and while it is generally easy to use, certain applications may present unique challenges. Consider these tips for success in specialized applications:
Active Filter Circuits: When using the LM358 in active filters, ensure that the component values (resistors and capacitors) are precisely chosen for the desired cutoff frequency. The op-amp’s internal capacitance may also affect the high-frequency performance of the filter.
Comparator Applications: While the LM358 can function as a comparator, it is not the ideal choice for high-speed applications. For faster switching times, consider using a dedicated comparator IC.
2.6. Final Thoughts on Troubleshooting the LM358
The LM358 is a reliable and versatile op-amp, but like any electronic component, it can experience issues that may hinder its performance. By following the troubleshooting steps outlined in this guide, you can quickly identify and resolve most common problems. However, for more advanced applications, such as noise-sensitive circuits, high-frequency amplifications, or complex filter designs, always consider the limitations of the LM358 and ensure the circuit is optimized for its characteristics. With the right approach, you’ll ensure that your LM358 circuits perform reliably and efficiently.
Conclusion:
By thoroughly understanding the LM358’s functionality and following a structured troubleshooting approach, engineers can overcome most operational challenges efficiently. Proper attention to power supply stability, feedback components, and circuit layout design are essential for maximizing the performance of this versatile op-amp.
