The LCMXO2-1200HC-4TG100I is a popular FPGA (Field-Programmable Gate Array) device known for its versatility and reliability. However, like any sophisticated electronic component, users may encounter issues during implementation. This guide offers common troubleshooting tips and solutions to address potential challenges with the LCMXO2-1200HC-4TG100I, ensuring seamless performance and efficient project completion.
Troubleshooting the LCMXO2-1200HC-4TG100I FPGA

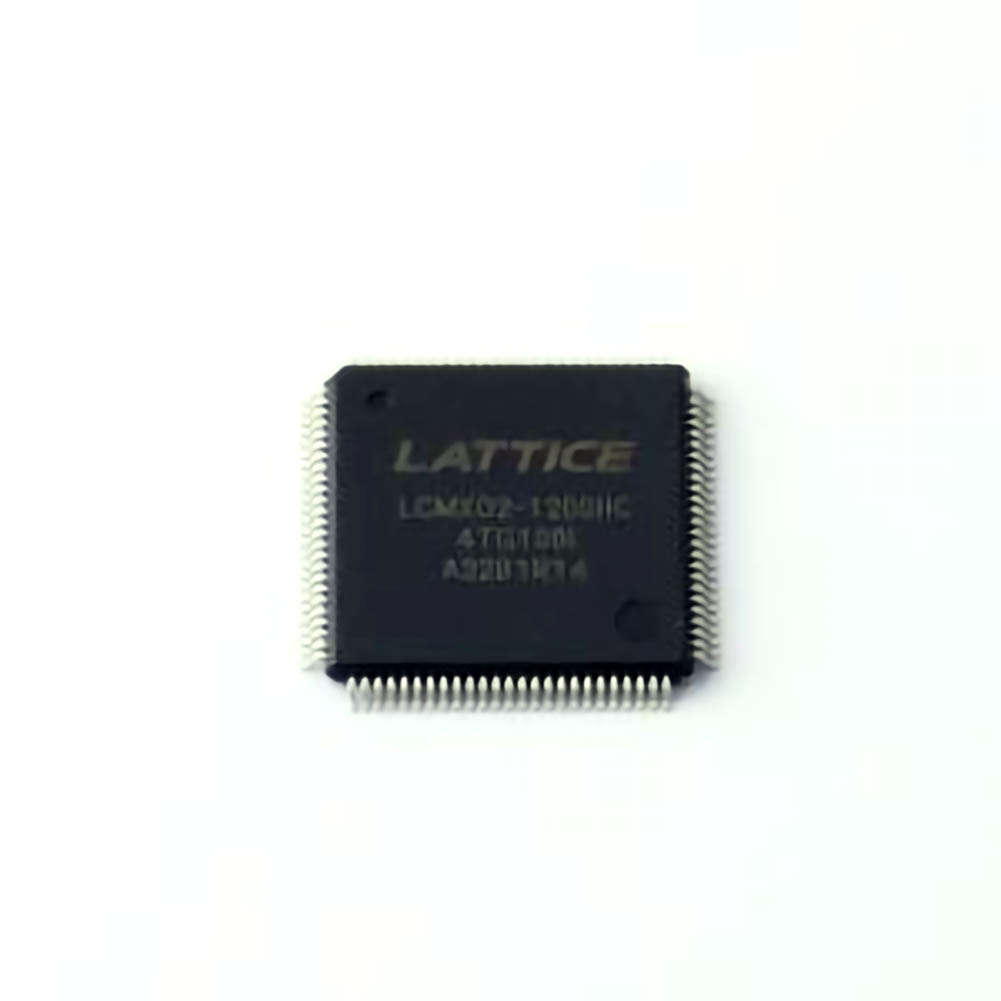

The LCMXO2-1200HC-4TG100I, part of the Lattice Semiconductor’s MachXO2 family, is a versatile FPGA that delivers both high performance and low Power consumption, making it a go-to choice for many developers. Despite its advantages, users may sometimes face challenges when using this component, whether they are dealing with incorrect functionality, connection issues, or other anomalies. Identifying and solving these issues early can significantly improve development time and project efficiency.
1. Power Supply Issues
One of the most common problems with the LCMXO2-1200HC-4TG100I is power supply-related errors. If the FPGA is not receiving adequate or stable power, it may malfunction or fail to boot entirely.
Solution:
To address power supply issues:
Check Voltage Levels: Ensure that the LCMXO2-1200HC-4TG100I is receiving the required 3.3V or 1.8V (depending on your configuration). Power fluctuations can result in unpredictable behavior.
Verify Power Connections: Examine the PCB for any loose or damaged power traces. Ensure that power and ground pins are properly connected and free from shorts.
Use Decoupling capacitor s: Place decoupling capacitors near the power pins of the FPGA to stabilize voltage levels and prevent noise from interfering with the FPGA’s operation.
2. Configuration Problems
Another common issue arises when configuring the FPGA. If the LCMXO2-1200HC-4TG100I is not properly configured, it can fail to function as intended.
Solution:
Check Configuration Files: Ensure the configuration bitstream has been correctly compiled and loaded into the device. If the file is corrupt or incompatible, recompile it and reload it.
Verify Programming Mode: Ensure that the FPGA is set to the correct mode (e.g., JTAG or SPI) and that the programming tool is functioning correctly. Recheck the connections between the programming hardware and the FPGA.
Debugging: Use the FPGA’s built-in debugging features, such as signal probing or using a logic analyzer, to identify where the configuration fails.
3. Clock ing Issues
Clocking is critical to FPGA operation, and improper clock setups can lead to various failures, such as Timing violations or failure to achieve desired performance.
Solution:
Check Clock Sources: Ensure that the FPGA is connected to a stable clock source. The LCMXO2-1200HC-4TG100I supports both internal and external clock sources, so verify that the chosen clock input is functioning correctly.
Adjust Clock Constraints: Review the timing constraints in the design to ensure that the FPGA is receiving a clock with the correct frequency and that it meets the necessary timing requirements.
Check Clock Routing: Verify the clock distribution network to ensure there are no issues such as signal degradation or clock skew that may impact performance.
4. Signal Integrity and Noise
Signal integrity issues are not uncommon, particularly in high-speed applications. If signals are not transmitted correctly, the FPGA may produce erratic behavior or fail to communicate with other components.
Solution:
Use Proper Routing Techniques: When designing the PCB, follow best practices for signal routing. Minimize the length of high-speed signal traces and ensure that ground planes are used to shield sensitive signals.
Terminate Signals Properly: Signal reflections due to improper termination can cause data corruption. Ensure proper termination techniques are used, especially for high-speed signals.
Minimize Crosstalk: Isolate high-speed signals to avoid interference. Additionally, place components that are sensitive to noise far from high-speed signals or noisy components.
5. I/O Pin Issues
Incorrect I/O pin configuration or damaged pins can prevent the FPGA from interfacing correctly with other components.
Solution:
Check Pin Assignments: Ensure that the I/O pins are correctly mapped to the desired functions in the FPGA’s configuration files. Verify that these assignments correspond to the physical pins on the device.
Test Pin Functionality: Use a multimeter or oscilloscope to check the functionality of the I/O pins. If any pins are not behaving as expected, recheck the design or consider replacing the component if a hardware fault is detected.
Verify Voltage Levels: Confirm that I/O pins are operating within their specified voltage levels. Incorrect voltage on I/O pins can cause malfunction or even damage the FPGA.
Advanced Troubleshooting Solutions for LCMXO2-1200HC-4TG100I
In addition to common troubleshooting tips, more advanced techniques can be employed to address issues with the LCMXO2-1200HC-4TG100I FPGA. These solutions are geared toward users with a deeper understanding of FPGA design and operation.
6. Timing Constraints and Violations
Timing violations are a frequent problem, especially in designs that push the FPGA to its limits. The LCMXO2-1200HC-4TG100I supports high-speed operation, but exceeding its timing constraints can result in incorrect functionality or degraded performance.
Solution:
Analyze Timing Reports: Use the FPGA development software to analyze timing reports. This will help identify any setup or hold violations, and ensure that the design meets timing requirements.
Adjust Constraints: Review and adjust the timing constraints to relax timing requirements where possible. Ensure that setup and hold times are correctly accounted for in the design.
Optimize Design: Reduce the complexity of logic in critical paths. This may involve optimizing the design by using pipelines or improving resource utilization to reduce timing pressures.
7. Overheating and Thermal Management
Excessive heat can cause the LCMXO2-1200HC-4TG100I to become unstable or fail altogether. Managing thermal conditions is crucial for maintaining reliable operation.
Solution:
Ensure Proper Ventilation: If the FPGA is housed in a confined space, ensure adequate airflow to dissipate heat. Use fans or heatsinks as necessary to improve heat dissipation.
Monitor Temperature: Measure the temperature of the FPGA during operation. If it consistently exceeds safe operating temperatures, consider implementing more robust cooling solutions, such as active cooling or thermal pads.
8. Reset and Initialization Issues
If the FPGA fails to initialize or reset correctly, it can lead to inconsistent behavior or complete failure to operate.
Solution:
Verify Reset Circuit: Check the external reset circuitry to ensure that it is correctly applied to the FPGA at startup. A weak or improper reset can result in the FPGA failing to initialize correctly.
Use Internal Initialization: Consider using internal initialization sequences if external reset circuits are problematic. This can be done through programming the FPGA’s configuration memory.
9. Upgrade FPGA Firmware or Software
Occasionally, problems may arise due to outdated firmware or programming tools. Using the latest tools and updates can solve known issues and improve performance.
Solution:
Update Tools and Libraries: Regularly check for updates to the FPGA development tools, libraries, and firmware. The LCMXO2-1200HC-4TG100I may have received firmware patches that resolve known issues or improve performance.
Consult Documentation: Always refer to the latest datasheets, application notes, and user manuals from Lattice Semiconductor for updated troubleshooting information and advanced design tips.
10. Contact Support and Community
If the above troubleshooting techniques do not resolve your issue, seeking help from the wider community or professional support may be necessary.
Solution:
Lattice Support: Contact Lattice Semiconductor’s technical support team for assistance with complex issues. Their engineers can provide tailored guidance to help resolve difficult problems.
Community Forums: Join FPGA development communities, such as online forums or social media groups, where other engineers share their experiences and solutions related to the LCMXO2-1200HC-4TG100I.
By following these troubleshooting steps and solutions, users can resolve common and advanced issues with the LCMXO2-1200HC-4TG100I FPGA, ensuring that their designs operate efficiently and reliably.
