Identifying and Diagnosing Issues with the L5970D013TR

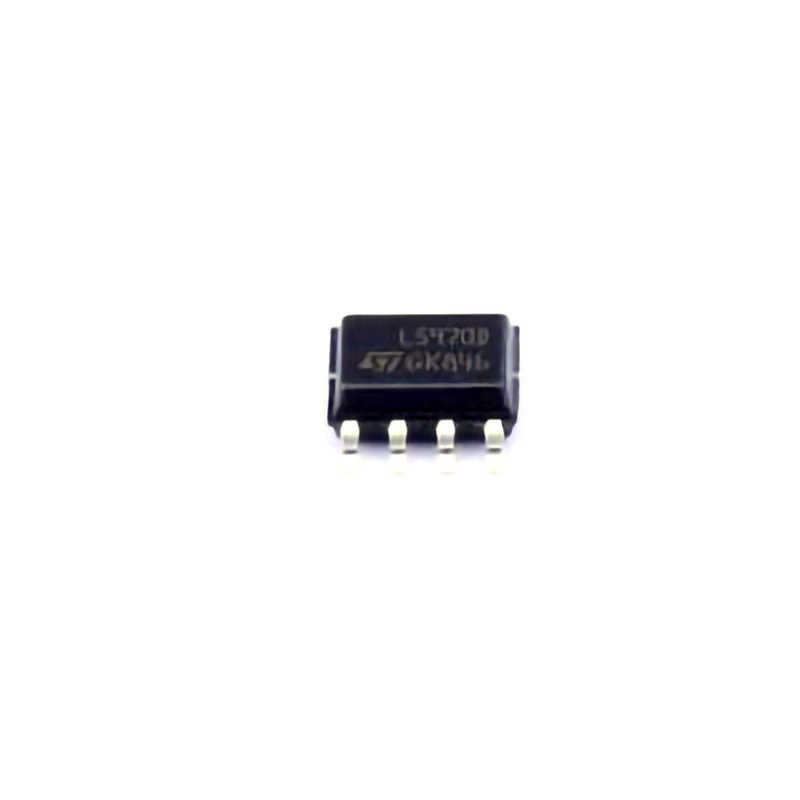

The STMicroelectronics L5970D013TR is a versatile and reliable step-down voltage regulator that provides stable, regulated output for many power-sensitive electronic systems. However, like any electronic component, it may encounter issues during operation. Recognizing early signs of malfunction can save time and effort when troubleshooting, ensuring your circuit performs optimally. In this article, we’ll explore common problems associated with the L5970D013TR, how to diagnose them, and provide helpful solutions for resolving these issues.
1. Understanding the L5970D013TR Step-Down Regulator
Before diving into troubleshooting, it’s essential to understand how the L5970D013TR operates. It is designed to convert higher input voltages (up to 40V) down to a stable output voltage, typically 5V, 3.3V, or other customer-defined voltages. It uses pulse-width modulation (PWM) to regulate the output, ensuring that connected devices receive the required voltage regardless of input fluctuations.
The regulator is designed to deliver high efficiency and features multiple protection mechanisms, such as overcurrent protection, overvoltage protection, and thermal shutdown. Despite its robustness, issues can still arise, especially when the component is used in complex or suboptimal circuit designs.
2. No Output Voltage / Low Output Voltage
Symptoms:
One of the most common problems you might encounter is either no output voltage or a significantly lower-than-expected output. This could be caused by a variety of issues, ranging from component failure to circuit design problems.
Potential Causes:
Faulty input voltage: Ensure that the input voltage to the regulator is within the specified range (up to 40V). If the input voltage is too low, the regulator cannot step it down properly.
Incorrect feedback loop configuration: The feedback loop, which regulates the output voltage, could be incorrectly configured, causing incorrect output levels.
Damaged components: capacitor s, inductors, or resistors in the circuit may be damaged, preventing proper voltage regulation.
Improper load conditions: An excessive or improper load on the regulator can cause the output to drop significantly, or the regulator might enter a protection mode.
Diagnostic Steps:
Check input voltage: Use a multimeter to verify the input voltage at the regulator’s input pin. Ensure it is within the specified range.
Measure the output voltage: Check the voltage at the regulator’s output pin. If it is significantly different from the expected value, the feedback circuit may be compromised.
Inspect component health: Examine surrounding components, especially the feedback resistors, capacitors, and inductor. Check for signs of damage such as heat marks or discoloration.
Monitor load conditions: Disconnect the load and check if the output voltage stabilizes. This can help determine if the issue lies with the load rather than the regulator.
Solutions:
Verify the feedback resistor network: Ensure that the feedback resistors are correctly rated and connected. The feedback pin needs a properly configured resistor divider to maintain accurate output voltage.
Replace damaged components: If capacitors, resistors, or inductors appear damaged or degraded, replace them with components of the correct value and rating.
Adjust the load: If the load is drawing too much current, try reducing it or use a different regulator with higher current capabilities.
3. Overheating and Thermal Shutdown
Symptoms:
The L5970D013TR has a built-in thermal shutdown feature to prevent damage when the internal temperature exceeds safe operating limits. If the regulator is overheating, it may shut down intermittently or fail to function altogether.
Potential Causes:
Excessive input voltage: High input voltages can cause the regulator to dissipate more power as heat. Ensure that the input voltage is within the recommended range.
Insufficient heat dissipation: The regulator may not have adequate heat sinking or airflow, causing it to overheat.
High output current: Drawing too much current from the regulator can also generate excess heat, leading to thermal shutdown.
Diagnostic Steps:
Measure the regulator temperature: If possible, measure the temperature of the regulator using a thermal camera or temperature probe.
Inspect the surrounding components: Check if nearby components are generating heat and contributing to the thermal buildup.
Check the output current: Use a current meter to ensure that the current draw from the regulator is within safe limits.
Solutions:
Improve heat dissipation: Add a heatsink to the regulator, or improve the airflow in the area surrounding the device. This can significantly reduce the likelihood of overheating.
Reduce the input voltage: If the input voltage is too high, consider reducing it within the recommended range to lower the power dissipation.
Limit output current: Ensure the load is within the regulator’s current output specifications. If necessary, add additional regulators or use a regulator with a higher current rating.
4. Output Ripple and Noise
Symptoms:
Excessive ripple or noise at the output can cause instability in circuits that rely on stable voltage, such as microcontrollers, sensors, and analog devices.
Potential Causes:
Inadequate input/output capacitors: Poor quality or incorrectly rated capacitors can lead to increased ripple and noise.
PCB layout issues: A poor PCB layout can introduce unwanted noise, especially if the feedback loop is not adequately shielded or if there is insufficient decoupling.
Inductor quality or value: A poor-quality or incorrectly sized inductor can affect the stability of the regulator, contributing to ripple and noise.
Diagnostic Steps:
Measure ripple and noise: Use an oscilloscope to check the ripple on the output voltage. High-frequency noise can be particularly harmful, so measure at different frequencies.
Check capacitor ratings: Verify that the input and output capacitors are of the correct type (typically low ESR capacitors) and the right value for your application.
Examine PCB layout: Ensure that the layout follows the recommended guidelines, particularly with regard to ground planes and decoupling capacitors.
Solutions:
Use higher-quality capacitors: If the capacitors are found to be of poor quality or improperly rated, replace them with higher-quality, low-ESR capacitors.
Improve PCB layout: Ensure that the feedback path is kept as short as possible, and provide adequate ground planes and decoupling for sensitive components.
Optimize the inductor: If the inductor is found to be of poor quality or inappropriate value, replace it with a better-suited part to reduce ripple and noise.
Advanced Troubleshooting and Preventive Solutions
In the second part of this article, we will cover more advanced troubleshooting techniques for the L5970D013TR and explore preventive solutions to ensure long-term reliability.
5. Output Voltage Regulation Issues
Symptoms:
If the output voltage is unstable or fluctuating under load conditions, it may indicate an issue with the regulation of the voltage. This is particularly problematic in precision applications where consistent voltage is critical.
Potential Causes:
Incorrect feedback loop: A misconfigured feedback loop can result in incorrect voltage regulation.
Load transients: Sudden changes in load can cause voltage fluctuations, especially if the regulator does not have sufficient transient response capabilities.
Inadequate decoupling: Poor or inadequate decoupling capacitors can affect the regulator’s ability to maintain a stable output voltage under load conditions.
Diagnostic Steps:
Check feedback network: Inspect the feedback resistor network and ensure it is correctly configured for the desired output voltage.
Measure load response: Apply a load step to the regulator and observe how the output voltage responds. A stable regulator should quickly recover from any voltage dip or spike caused by the transient.
Verify decoupling capacitors: Ensure that the input and output capacitors have adequate value and are positioned as close as possible to the regulator.
Solutions:
Optimize feedback network: Fine-tune the feedback resistors to ensure accurate voltage regulation.
Add extra decoupling capacitors: In some cases, adding extra decoupling capacitors, particularly on the output side, can help stabilize the voltage under varying load conditions.
Improve load transient response: Consider adding a larger output capacitor or using a regulator with faster transient response for applications that involve rapid load changes.
6. Overcurrent and Protection Circuit Behavior
Symptoms:
The L5970D013TR has built-in overcurrent protection that can limit the output current to prevent damage. If the regulator is entering overcurrent protection mode too frequently or at lower-than-expected current draws, there may be an underlying issue with the circuit design or components.
Potential Causes:
Excessive output load: The load connected to the regulator may be drawing too much current, triggering the overcurrent protection.
Incorrect current sense resistor: The current sense resistor may be improperly sized, causing incorrect current detection and false triggering of protection features.
Faulty components: A short circuit or faulty components on the load side could be causing excessive current draw.
Diagnostic Steps:
Measure output current: Use a current meter to measure the current being drawn by the load. Compare it with the regulator’s rated output current limit.
Check the current sense resistor: Ensure that the current sense resistor is of the correct value and properly placed in the circuit to ensure accurate current measurement.
Test for shorts: Perform a continuity test to check for any shorts in the circuit that could be causing an overcurrent condition.
Solutions:
Reduce load current: If the load is drawing too much current, consider using a different regulator or reducing the load to prevent triggering overcurrent protection.
Verify current sense resistor value: Ensure that the current sense resistor has the correct rating and tolerance to avoid false triggering.
Check for faults in the load circuit: Investigate the load side for shorts or faulty components that might be drawing excessive current.
7. Long-Term Preventive Solutions
To ensure the long-term reliability of the L5970D013TR, consider implementing the following preventive measures:
Regularly check component health: Periodically inspect capacitors, resistors, and inductors for signs of wear or degradation, especially in high-stress environments.
Follow design guidelines: Always adhere to the manufacturer’s recommended design guidelines for input/output capacitance, feedback configuration, and layout.
Use thermal management techniques: Ensure that the regulator has adequate cooling, especially when operating under high load or high input voltage conditions.
By addressing common issues early and following best practices for circuit design and component selection, you can maximize the performance and longevity of the L5970D013TR step-down regulator.
This concludes the second part of the article on troubleshooting and solutions for the L5970D013TR. By applying these techniques, you’ll be well-equipped to keep your power systems running smoothly and reliably.
