In this article, we delve deep into the common troubleshooting steps and solutions for the IRFP4227PBF Power MOSFET, a crucial component in various electronic devices. Whether you’re a technician, engineer, or hobbyist, this guide provides practical insights to help you diagnose issues and optimize the pe RF ormance of the IRFP4227PBF.
Understanding the IRFP4227PBF and Common Issues

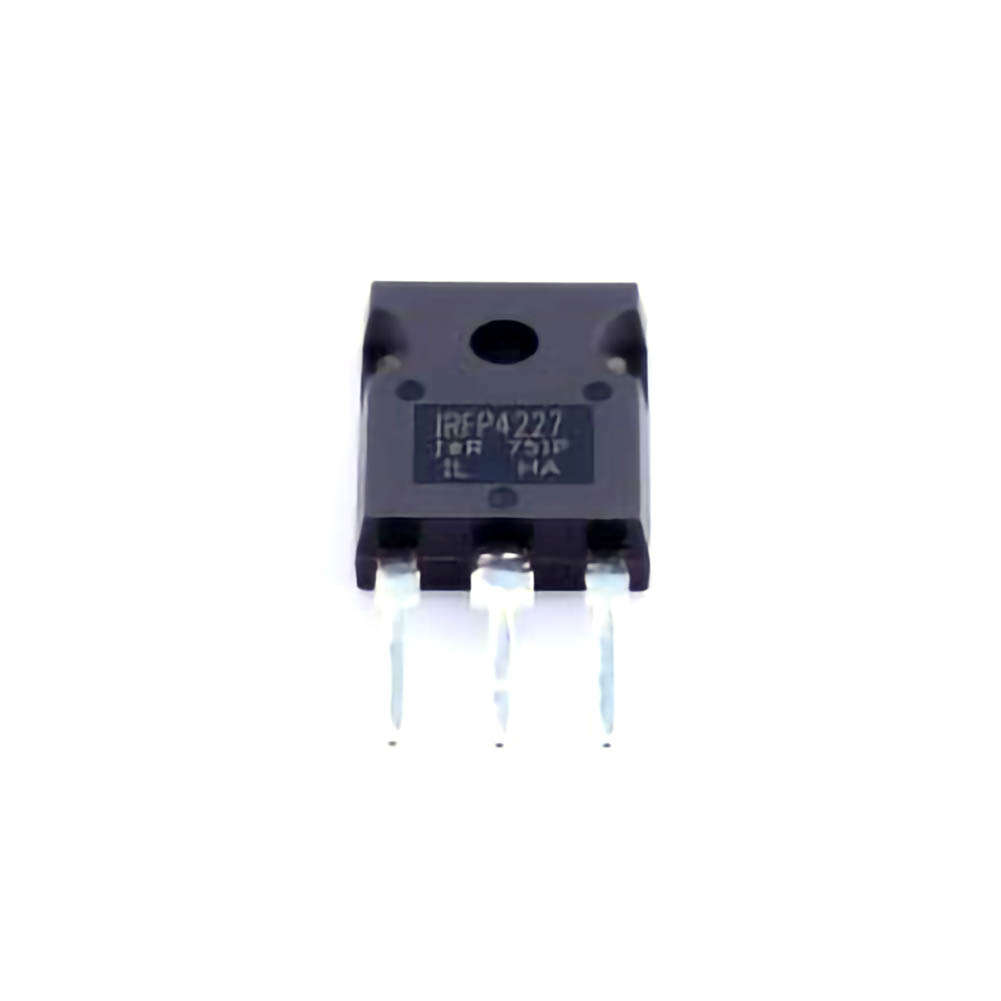

The Infineon IRFP4227PBF is a high-performance N-channel power MOSFET (Metal-Oxide-S EMI conductor Field-Effect Transistor) widely used in various applications such as motor drives, power supplies, and audio amplifiers. Known for its excellent switching characteristics and high-current handling capability, the IRFP4227PBF is a critical component in many electronic devices.
However, like all electronic components, the IRFP4227PBF is susceptible to failures that can disrupt the functionality of your device or circuit. In this first part, we will explore the common issues that can arise with the IRFP4227PBF, how to recognize them, and the potential causes behind these failures.
1. Overheating and Thermal Runaway
One of the most frequent issues with the IRFP4227PBF is overheating, which can eventually lead to thermal runaway. Thermal runaway occurs when the temperature of the device increases uncontrollably, causing a positive feedback loop where higher temperatures lead to increased current, which further raises the temperature.
Causes:
Inadequate heat dissipation: The IRFP4227PBF has a maximum junction temperature of 150°C, but if not properly cooled or heat-sinked, it may overheat.
Excessive load or current: When the MOSFET is used in high-current applications, it can generate heat if the current exceeds the specified rating.
Improper gate drive: Insufficient or overdrive on the gate of the MOSFET may cause it to dissipate more power than it can handle, leading to overheating.
Signs of overheating:
Significant temperature rise on the component during operation.
Burnt smell or discoloration around the MOSFET.
Failure to function or random malfunctioning of the circuit.
Solution:
Improved cooling: Ensure that the MOSFET is mounted on an adequate heatsink and that airflow around the component is sufficient.
Current limiting: Use a current-limiting feature in the circuit design to prevent the IRFP4227PBF from being exposed to excessive current.
Gate drive optimization: Ensure the gate voltage is within the recommended range to avoid excessive heat generation.
2. Gate-Source Leakage
Gate-source leakage is another common issue that may arise in MOSFETs , including the IRFP4227PBF. This refers to unwanted current flowing between the gate and source terminals, even when the MOSFET should be in an “off” state.
Causes:
Damaged oxide layer: The insulating layer between the gate and source can degrade due to excessive voltage or static discharge, leading to leakage.
Electromagnetic interference (EMI): EMI can induce a voltage on the gate terminal, causing small leakage currents even when the MOSFET is meant to be turned off.
Signs of gate-source leakage:
Unintended operation of the MOSFET (e.g., the MOSFET remains on or partially on even when the gate signal should be off).
Increased quiescent current in the circuit.
Potential instability in the circuit’s behavior.
Solution:
Ensure proper gate drive: Make sure the gate drive is clean and within the MOSFET’s specified voltage range. A gate driver with proper noise suppression may help.
Use of resistors: Adding a pull-down resistor on the gate terminal can help prevent unintended gate voltage buildup and reduce leakage currents.
Avoid static discharge: Be cautious about static discharge when handling the MOSFET to prevent damage to the gate oxide layer.
3. Short Circuit or Failure Due to Excessive Voltage
MOSFETs are designed to operate within a specific voltage range. If exposed to voltages higher than the MOSFET’s rated maximum, the component may experience breakdown, leading to a short circuit between the drain and source.
Causes:
Overvoltage conditions: Using the IRFP4227PBF in circuits where the drain-source voltage exceeds the MOSFET’s maximum rating (55V) can cause permanent damage.
Inductive spikes: In switching applications, such as motor control, inductive loads can generate high-voltage spikes that exceed the voltage rating of the MOSFET.
Signs of failure:
Short circuit between the drain and source.
Sudden loss of functionality or erratic operation in the circuit.
Visible damage or destruction of the MOSFET (e.g., burnt marks, broken leads).
Solution:
Voltage clamping: Use clamping diodes or snubber circuits to protect the MOSFET from voltage spikes.
Overvoltage protection: Ensure that the IRFP4227PBF operates within its specified voltage limits, typically below 55V.
Circuit design review: If using the MOSFET in a switching application, verify that all protections (e.g., flyback diodes) are in place to absorb any inductive voltage spikes.
Effective Troubleshooting and Repair Solutions for the IRFP4227PBF
Now that we have explored the common problems associated with the IRFP4227PBF, let’s move on to more practical troubleshooting steps. Whether you’re diagnosing issues in a circuit, testing a new design, or replacing a failed MOSFET, these techniques will help you quickly identify and resolve the problems associated with this component.
4. Testing the IRFP4227PBF in-Circuit
Before jumping to conclusions about a faulty IRFP4227PBF, it’s essential to test the component in-circuit. This can save time and prevent unnecessary replacements. Use a multimeter or an oscilloscope for diagnostic purposes.
Steps for testing using a multimeter:
Check the MOSFET’s continuity: Use the multimeter to measure resistance between the drain and source terminals. In the “off” state, you should see a high resistance (indicating an open circuit). If there is low resistance, the MOSFET is likely damaged.
Gate-to-source resistance: Measure the resistance between the gate and source. A high resistance is normal; a low resistance might indicate a damaged gate oxide layer.
Gate-to-drain continuity: Ensure there is no unintended continuity between the gate and drain terminals.
Using an oscilloscope:
Gate waveform: Observe the gate waveform using an oscilloscope. A clean square wave signal should be present if the gate drive is functioning correctly.
Drain waveform: Check the drain signal for any irregularities that could indicate issues like voltage spikes or improper switching.
5. Replacing a Faulty IRFP4227PBF
If the IRFP4227PBF has indeed failed, replacing it might be the most straightforward solution. However, before replacing the MOSFET, it’s important to understand why it failed to avoid repeating the issue. Here’s a step-by-step guide for replacing a faulty MOSFET:
Power down the circuit: Always ensure the device is powered off and discharged before working on it to prevent accidental short circuits or shock hazards.
Remove the damaged MOSFET: If the MOSFET is through-hole, carefully desolder it from the board. For surface-mount devices, use a soldering iron and solder braid or a hot air rework station to remove the part.
Inspect the board: Check for any damage to the PCB around the MOSFET’s pads. Excessive heat or arcing can cause traces to burn or pads to lift.
Install the replacement MOSFET: Place the new IRFP4227PBF onto the board and solder it securely. Make sure the orientation matches the previous MOSFET.
Test the new component: Power up the circuit and test the functionality of the device again to confirm that the replacement is working as expected.
6. Preventing Future Failures
To minimize the risk of future failures with the IRFP4227PBF or other power MOSFETs, it’s crucial to incorporate preventive measures into your circuit design and testing routine.
Preventive strategies:
Proper heat management: Always use adequate cooling methods, such as heat sinks and fans, to dissipate heat efficiently. Consider using a thermal simulation tool during the design phase.
Current and voltage protection: Implement overcurrent protection circuits and ensure the operating voltage does not exceed the MOSFET’s ratings.
Gate drive control: Use high-quality gate drivers with proper noise suppression. Also, ensure that the gate voltage is within the recommended range for reliable operation.
Surge protection: Use transient voltage suppression ( TVS ) diodes or other surge protection techniques to guard against voltage spikes caused by inductive loads.
Conclusion
The IRFP4227PBF is a reliable power MOSFET that can serve a wide range of applications when used properly. By understanding the common issues that can arise, such as overheating, gate-source leakage, and overvoltage failures, and employing the troubleshooting methods discussed here, you can extend the lifespan of this component and ensure your circuits continue to operate smoothly. Regular testing, appropriate cooling, and careful component selection are the keys to avoiding common pitfalls and ensuring the long-term reliability of your designs.
