Understanding the DSP IC30F2010-30I/SP and Its Common Challenges

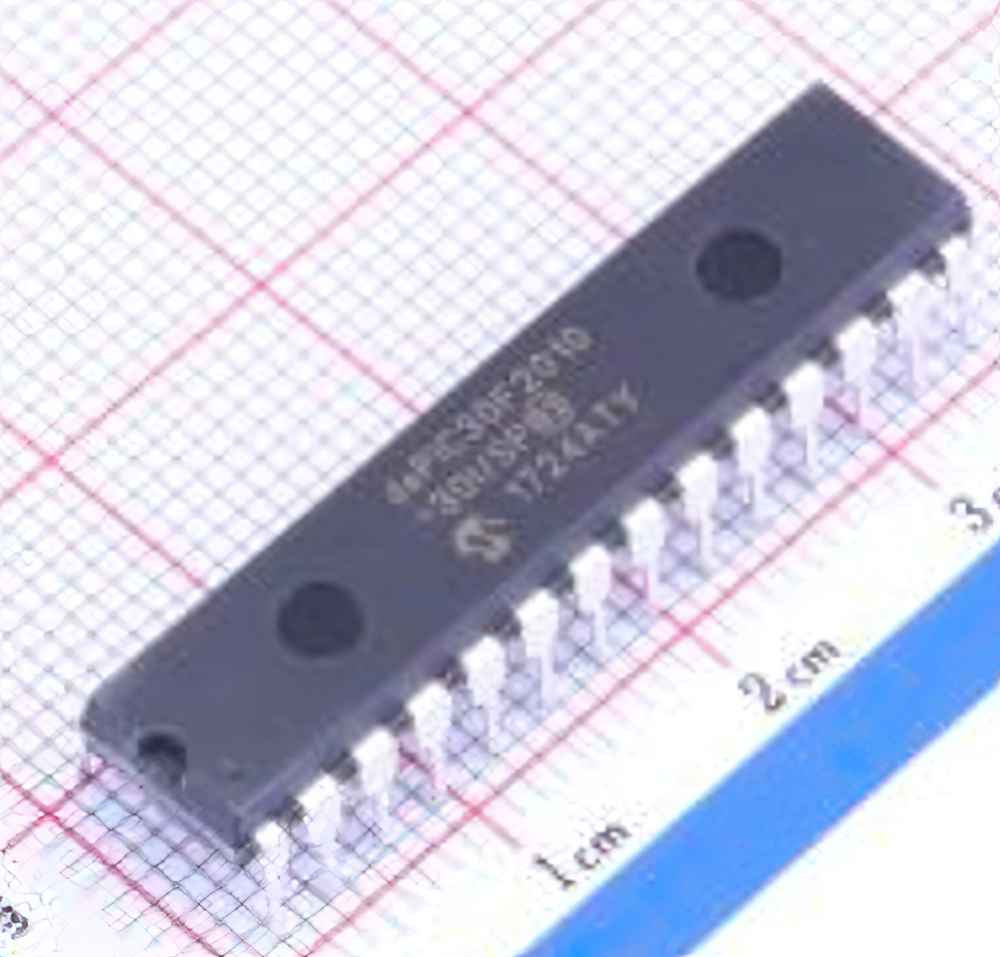

The DSPIC30F2010-30I/SP microcontroller, part of the dsPIC30 series by Microchip Technology, is widely used for its ability to perform complex digital signal processing and control operations in Embedded systems. This 16-bit microcontroller, with its robust set of features, provides a combination of high performance and ease of use. However, like any embedded system component, users can encounter various challenges when integrating the DSPIC30F2010-30I/SP into their projects. This article aims to outline the common troubleshooting areas and expert solutions that can help you maintain seamless operation.
1. Power Supply Issues and Their Impact
One of the most common problems encountered when working with the DSPIC30F2010-30I/SP is power supply instability. A fluctuating or insufficient supply can lead to erratic behavior, unexpected resets, or complete failure to operate. It is essential to ensure that the microcontroller receives a consistent voltage within its operating range (2.5V to 3.6V). Here are a few tips to troubleshoot power-related issues:
Verify Power Supply Stability: Use an oscilloscope to monitor the voltage supply at different points of the circuit. This helps identify if there are any sudden drops or noise disturbances in the power line.
Decoupling Capacitors : Implement decoupling capacitor s close to the power pins of the DSPIC30F2010-30I/SP to filter high-frequency noise and stabilize the supply voltage.
PCB Layout Optimization: Ensure that the power traces on the PCB are wide enough to reduce voltage drops and that capacitors are placed as close as possible to the microcontroller to reduce inductance.
2. Programming and Debugging Difficulties
Programming and debugging can be tricky, especially for beginners. The DSPIC30F2010-30I/SP is compatible with Microchip’s MPLAB X IDE and other third-party development tools, but issues can still arise:
Bootloader Issues: Sometimes, programming issues can be traced back to bootloader problems. If the microcontroller is not being programmed, check the boot configuration settings in the MPLAB X IDE. Ensure that the bootloader is enabled and configured correctly.
Debugger Connectivity: Debugging can be disrupted if there is a problem with the debugging interface . Verify that the programming/debugging tool is securely connected and that the correct Communication interface (e.g., JTAG or ICSP) is selected.
Check Clock Settings: Inadequate clock configuration can impact programming and debugging operations. Confirm that the internal or external oscillator is correctly configured and stable.
3. Clock and Timing Configuration
The DSPIC30F2010-30I/SP features a flexible clock system that allows for precision control of timing operations, which is vital for real-time embedded applications. Incorrect clock settings can result in timing errors, making the system unreliable. Here’s how to troubleshoot clock-related issues:
Verify Oscillator Configuration: Ensure the oscillator is set up according to the project requirements and matches the physical oscillator being used.
Use an External Crystal: If the internal oscillator is unstable, consider switching to an external crystal for greater accuracy.
Review PLL Settings: The Phase-Locked Loop (PLL) can help achieve higher operational speeds. Make sure that the PLL is configured properly to avoid synchronization problems.
4. Peripheral and Communication Troubles
Many embedded applications rely on various peripherals and communication interfaces, such as UART, I2C, and SPI. Communication failures can lead to data loss or corrupted signals, causing system malfunction. Here are some common troubleshooting steps:
Check Pin Configurations: Incorrect pin assignments can disrupt communication. Verify the configuration of the I/O pins used for communication and ensure they are correctly set up as inputs or outputs as needed.
Signal Integrity: When transmitting data over long distances or high-speed interfaces, signal degradation can occur. Using termination resistors and proper PCB trace routing can help maintain signal integrity.
Error Detection: Utilize error-checking mechanisms like checksums or CRC to identify and resolve data transmission issues.
5. Temperature and Environmental Considerations
Temperature fluctuations and environmental factors can impact the DSPIC30F2010-30I/SP’s performance. Operating outside the recommended temperature range can cause the device to behave unpredictably. Here’s what you should consider:
Monitor Temperature: Use temperature sensors to monitor the operating environment of your device. If you notice a temperature outside the safe range, consider using a heat sink or fan for active cooling.
Protect Against EMI : Ensure the design includes measures to shield against electromagnetic interference (EMI), which can disrupt both the operation of the microcontroller and peripheral devices.
Expert Solutions for Enhanced Performance and Stability
Now that we have covered common challenges, let’s explore expert solutions to optimize the performance and ensure the long-term stability of the DSPIC30F2010-30I/SP in your embedded applications.
6. Firmware Development Best Practices
The firmware plays a crucial role in the operation of any microcontroller-based system. Poorly written code can lead to inefficiencies, bugs, and poor system performance. Follow these best practices for writing firmware:
Modular Code Structure: Design your code in a modular fashion. This helps isolate and identify specific issues more efficiently.
Use Interrupts Wisely: Interrupts are powerful but can become a source of complexity if not managed correctly. Ensure that interrupt routines are kept as short and efficient as possible to avoid timing conflicts.
Memory Management : Monitor the usage of the program and data memory carefully to avoid overflow. Utilize available tools in MPLAB X IDE to analyze memory usage and optimize code accordingly.
7. Using Development Tools Effectively
The right development tools can simplify the debugging and optimization process. The MPLAB X IDE offers a range of features designed to help developers troubleshoot and debug effectively:
Simulator Mode: Use the MPLAB X Simulator to test code without the physical hardware. This can be helpful for detecting logical errors before deployment.
Watch Variables: Utilize the watch window to keep an eye on the variables’ values in real-time during the debugging process.
Breakpoints: Place breakpoints at key parts of the code to monitor the execution flow and catch unexpected behavior.
8. Leveraging Peripheral Libraries and Code Examples
Microchip’s website and user community offer a wealth of libraries and code examples that can save time and effort:
Peripheral Libraries: Make use of built-in libraries for configuring and controlling peripherals, which can simplify coding and reduce the risk of manual configuration errors.
Code Examples and Application Notes: Refer to the extensive collection of code examples and application notes available on the Microchip website. These resources often contain helpful insights and optimized code snippets for common tasks.
9. Implementing Robust Error Handling
Error handling is essential for creating a reliable embedded system. Implement comprehensive error handling in your firmware to detect and respond to anomalies gracefully:
Watchdog Timer: Enable the watchdog timer to reset the system in case of an unexpected event that causes the microcontroller to freeze.
Error Flags: Implement error flags that signal specific issues, enabling the system to recover from minor faults without a full reset.
10. Maintaining and Updating Your Embedded System
Once your system is up and running, regular maintenance and updates are key to long-term performance:
Regular Firmware Updates: Implement a simple mechanism for updating firmware over-the-air (OTA) or via a bootloader to ensure your embedded system benefits from bug fixes and new features.
Diagnostics and Logging: Create diagnostic routines that log data or events, making it easier to pinpoint the source of problems when they arise.
By following these guidelines and solutions, you can mitigate the most common problems associated with the DSPIC30F2010-30I/SP and ensure your embedded system operates with maximum reliability and efficiency. Troubleshooting may be challenging, but with these expert tips in hand, you’ll be well-equipped to handle any obstacles that come your way.
