Troubleshooting Common Issues with the DRV8876PWPR Motor Driver

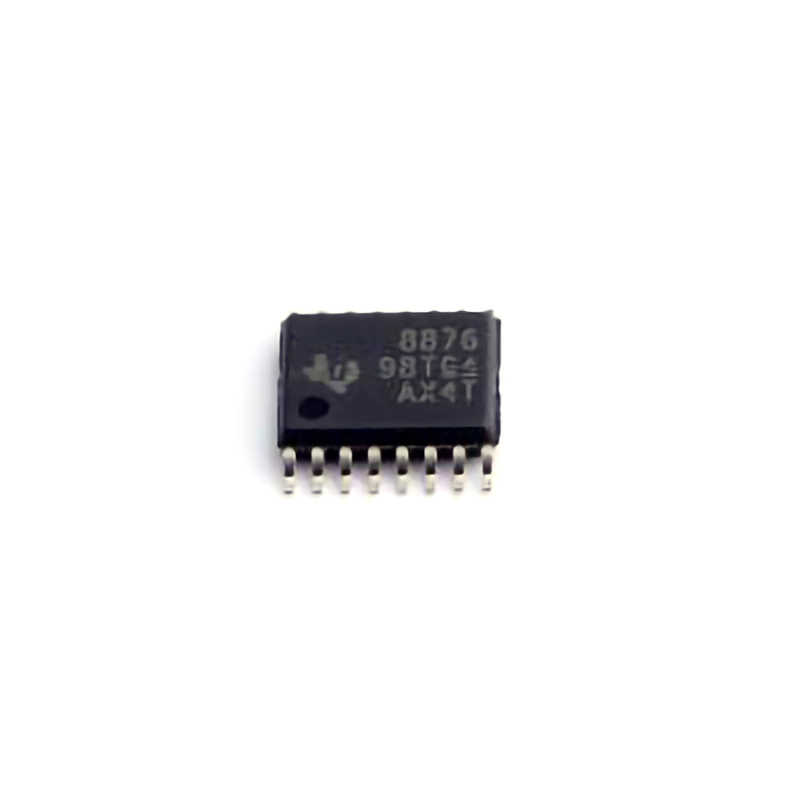

The DRV8876PWPR motor driver from Texas Instruments is an excellent choice for driving DC motors, stepper motors, and more. This device is known for its high efficiency, integrated protection features, and ease of use. However, like any sophisticated piece of hardware, issues may arise during operation. Understanding how to troubleshoot these issues effectively is essential for ensuring your motor driver works at peak performance. Here, we will cover common problems users may encounter with the DRV8876PWPR motor driver and their solutions.
1. Power Supply Issues
A power supply issue is often one of the first things to check when troubleshooting motor drivers. The DRV8876PWPR requires a stable power source to drive motors effectively. Common symptoms of power supply issues include erratic motor behavior, overheating, or even failure to start the motor.
Possible Causes:
Inadequate voltage or current supply
Power supply noise or instability
Incorrect power supply wiring
Solutions:
Ensure that the voltage input to the DRV8876PWPR matches the specifications outlined in the datasheet. The motor driver requires a supply voltage of 4.5V to 40V, depending on the motor specifications.
Double-check the current capacity of your power supply. It must be sufficient to drive the motor under load conditions. A supply that can’t provide enough current will lead to voltage drops and motor performance issues.
Inspect the power connections for loose or incorrect wiring, and ensure that all connections are solid. Poor connections can cause intermittent issues or complete failure of the motor.
2. Overheating of the Motor Driver
Overheating is a common issue with motor drivers, particularly in high-power applications. The DRV8876PWPR is equipped with built-in thermal shutdown protection, but continuous overheating can still cause damage to the device if not addressed.
Possible Causes:
High motor load causing excessive current draw
Inadequate cooling or heat dissipation
Excessive PWM frequency or improper duty cycle
Solutions:
Reduce the motor load to ensure that the current draw does not exceed the safe operating limits. For example, if the motor is stalled, it will draw much more current and generate heat.
Use proper heat sinking for the DRV8876PWPR to dissipate heat effectively. This could involve adding a heatsink to the package or improving airflow around the driver.
Adjust the PWM frequency and duty cycle. A higher frequency PWM with a high duty cycle can cause the motor driver to overheat. Try lowering the PWM frequency or adjusting the duty cycle to optimize performance and reduce thermal load.
3. Erratic Motor Behavior
If the motor is not running smoothly, exhibiting jerky movements, or behaving erratically, this could be related to a variety of issues ranging from incorrect input signals to insufficient power delivery.
Possible Causes:
Incorrect PWM signal input
Power supply voltage fluctuations
Motor wiring issues
Solutions:
Verify that the PWM signal being sent to the DRV8876PWPR is correct. Check for signal integrity and ensure that the duty cycle matches the desired motor speed.
Inspect the power supply for stability. If there are significant fluctuations in the supply voltage, it may cause the motor to run erratically. Using capacitor s near the power supply can help stabilize the voltage.
Examine the motor wiring to ensure there are no loose connections, shorts, or broken wires. Even a small wiring issue can cause erratic behavior.
4. Motor Not Running (No Output)
One of the most common issues is when the motor does not run at all despite being powered on. This can be frustrating, but several factors could be contributing to the problem.
Possible Causes:
Faulty or unconnected control inputs
Internal motor driver failure
Motor or wiring malfunction
Solutions:
Check the control inputs to the DRV8876PWPR. If the motor is not receiving the necessary input signals (such as PWM or direction control), it will not operate. Ensure that all the control lines are correctly configured and that the input signals are present.
Test the motor driver by using a multimeter to check the output pins. If there is no voltage on the output pins, the motor driver may have failed. In this case, replacing the driver is the best solution.
Verify that the motor is functioning correctly by testing it directly with a power supply or another driver. If the motor works fine with a different driver or power source, then the issue lies with the DRV8876PWPR or its connections.
5. Under-Voltage or Over-Voltage Lockout
The DRV8876PWPR has built-in protection features, including under-voltage and over-voltage lockout to prevent damage to the device. These features are essential for safeguarding the motor driver, but they may trigger even under normal operating conditions if the voltage is not stable.
Possible Causes:
Power supply voltage is too low or too high
Transient voltage spikes
Voltage sag due to motor startup
Solutions:
Ensure that the input voltage remains within the acceptable range of 4.5V to 40V. Voltage outside this range can trigger lockout protection. If necessary, use a regulated power supply to maintain stable voltage.
Add decoupling capacitors to smooth voltage transients. Large voltage spikes during motor startup or shutdown can trigger protection features. A capacitor can absorb these spikes and maintain a stable voltage level.
If your application involves large motor currents or frequent startup events, consider adding a soft-start circuit to limit current spikes and avoid triggering the under-voltage or over-voltage lockout.
Advanced Solutions and Best Practices for DRV8876PWPR Motor Driver Performance
While part one covered the basics of troubleshooting the DRV8876PWPR motor driver, part two will focus on advanced solutions and best practices to enhance the motor driver’s performance. These tips will help you optimize the operation of the motor driver for more complex applications.
1. Optimizing PWM Control for Smooth Operation
PWM control plays a crucial role in regulating the speed and torque of motors connected to the DRV8876PWPR. Improper PWM control can result in uneven motor behavior, excessive heat generation, or reduced efficiency.
Best Practices:
Use a PWM frequency that matches the specifications of the motor and motor driver. In most cases, a frequency between 10 kHz and 20 kHz is ideal for smooth operation, but check your motor’s datasheet for specific recommendations.
Adjust the PWM duty cycle to control the motor’s speed. A lower duty cycle will reduce the motor speed, while a higher duty cycle will increase the speed. Ensure the duty cycle is proportional to the desired output and that it does not exceed the safe operating limits.
Use a low-pass filter to smooth out the PWM signal if necessary. This can reduce high-frequency noise and make the motor operation smoother.
2. Proper Grounding and Layout for Signal Integrity
Signal integrity is essential for proper communication between the DRV8876PWPR and the microcontroller or other control devices. Poor grounding and layout design can lead to noise interference and signal degradation.
Best Practices:
Keep power and signal grounds separate and connect them at a single point to avoid ground loops.
Use short and thick traces for high-current paths and long, thin traces for low-current paths like the control signals.
Place decoupling capacitors as close to the DRV8876PWPR as possible to filter out noise and improve voltage stability.
Consider using a ground plane in your PCB design to improve signal integrity and reduce noise.
3. Utilizing the Protection Features
The DRV8876PWPR comes with several built-in protection features, including overcurrent protection, thermal shutdown, under-voltage lockout, and over-voltage protection. To maximize the lifespan and reliability of the motor driver, it’s essential to understand and take advantage of these features.
Best Practices:
Regularly monitor the motor current and temperature to avoid triggering the protection features. If the motor is drawing excessive current or the driver is overheating, it may lead to failure or reduced performance.
Implement additional external protections like fuses or circuit breakers to further safeguard the motor driver from damage due to short circuits, overloads, or other electrical faults.
Make use of the DRV8876PWPR’s diagnostic outputs to monitor the status of the driver. These outputs can alert you to fault conditions, allowing you to take corrective action before damage occurs.
4. Implementing Motor Control Algorithms for Precision
For more advanced applications, implementing motor control algorithms can significantly improve the performance of the DRV8876PWPR motor driver. These algorithms can help with precise control of speed, position, and torque, especially in systems requiring high accuracy.
Best Practices:
Use PID (Proportional-Integral-Derivative) controllers for speed and position control. These controllers help maintain the motor’s performance by adjusting the PWM duty cycle based on feedback from the motor.
Implement current sensing to monitor the motor’s load and adjust the control signals accordingly. This helps maintain efficient operation and prevents the motor driver from triggering overcurrent protection.
If using stepper motors, implement microstepping control for smoother and quieter motor operation. This can significantly improve the performance of the DRV8876PWPR when driving stepper motors.
5. Regular Maintenance and Monitoring
Lastly, regular maintenance and monitoring are essential to ensure that the DRV8876PWPR motor driver continues to operate reliably over time. Routine checks can help identify issues early and prevent long-term damage.
Best Practices:
Periodically inspect the power supply and motor wiring to ensure that all connections are secure and free from wear or corrosion.
Use temperature sensors to monitor the motor driver’s temperature. If the temperature exceeds safe limits, take action to reduce load or improve cooling.
Keep software and firmware updated to take advantage of new features or bug fixes that may improve motor driver performance.
By following these troubleshooting steps, best practices, and advanced solutions, you can ensure that the DRV8876PWPR motor driver functions optimally, whether in a simple DIY project or a more complex industrial application.
