The BQ24780SRUYR is a highly efficient and versatile battery charger and Management IC designed for portable devices. This article explores common troubleshooting scenarios and provides practical solutions to help users optimize the performance of their BQ24780SRUYR. Whether you are an engineer, technician, or DIY enthusiast, understanding these solutions will ensure your device functions at its best.
BQ24780SRUYR, troubleshooting, battery charger IC, charging issues, solutions, battery management, charging performance, technical support, portable device, electronics repair
Understanding the BQ24780SRUYR and Common Issues

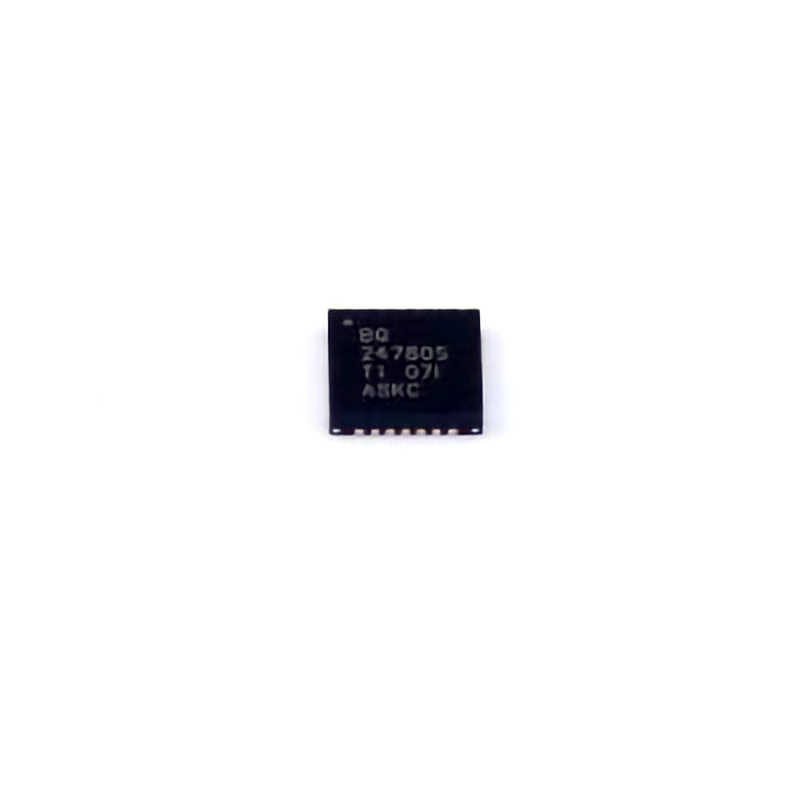

The BQ24780SRUYR is a sophisticated, highly efficient battery charging and management IC made by Texas Instruments. It is widely used in a range of devices, including laptops, tablets, and other portable electronics, to manage battery charging, maintain health, and improve battery life. While the BQ24780SRUYR is known for its reliability, like any complex electronic component, users may encounter occasional issues. This section will focus on understanding the key features of the BQ24780SRUYR, and the most common problems users may face during operation.
What is the BQ24780SRUYR?
The BQ24780SRUYR is a highly integrated battery charging IC that provides a comprehensive set of features for managing lithium-ion or lithium-polymer (Li-ion/Li-poly) batteries. Some of its primary functions include:
Battery Charging: Supports efficient charging with multiple charging profiles, such as Constant Current (CC), Constant Voltage (CV), and termination modes.
Power Path Management: It ensures seamless power switching between the adapter input and battery, providing uninterrupted device operation.
System Monitoring: The IC integrates voltage, current, and temperature Sensor s to monitor battery health and performance.
Thermal Regulation: Ensures that the battery and device remain at optimal temperatures during charging, preventing overheating.
Protection Features: Includes built-in protections like over-voltage, over-current, and thermal protection to safeguard the battery and the device.
Common Problems with BQ24780SRUYR
While the BQ24780SRUYR is designed to be reliable, several common issues may arise, particularly during the initial setup or after extensive use. These include:
Charging Not Initiating or Stopping Suddenly
Inconsistent Battery Charging
Battery Not Recognized
Device Not Powering On
Thermal Shutdown
Error Indicators or Faulty Status Signals
In this part of the article, we’ll break down the most frequently encountered issues and offer practical troubleshooting steps for each scenario.
1. Charging Not Initiating or Stopping Suddenly
One of the most common issues with the BQ24780SRUYR is when the charging process does not start or stops abruptly. This issue can be traced to several possible causes:
Possible Causes:
Incorrect Battery Connection: If the battery is not properly connected to the charging IC, the charging process may not initiate. Check the physical connection to ensure no loose or broken connections.
Power Supply Issues: If the adapter is not supplying the correct voltage or is unstable, the charging process may fail to start. Verify that the input voltage is within the specified range (typically 5V to 20V for most systems using this IC).
Faulty Charging Circuit: Sometimes, the PCB traces or solder joints can be defective, leading to incomplete or inconsistent power flow to the IC. Inspect the board for any visible signs of damage.
Solutions:
Check Battery Voltage: Use a multimeter to check the battery’s voltage. If the battery voltage is below the threshold, the IC may not initiate charging. If the voltage is too low, it may need to be charged manually with an external charger.
Verify Input Voltage: Confirm that the input voltage from the adapter is stable and within the recommended operating range (e.g., 12V for a 3-cell system). If the voltage is unstable, replace the adapter.
Inspect for Faulty Connections: Carefully inspect the battery and charging IC connections. Reflow any suspicious solder joints, and replace any damaged components or connectors.
2. Inconsistent Battery Charging
Some users report that their device begins charging but does so inconsistently, often fluctuating between charging and not charging.
Possible Causes:
Faulty Battery or Battery Protection Circuit: If the battery’s internal protection circuit has tripped due to over-discharge or other issues, it may not allow charging properly.
Temperature Extremes: The BQ24780SRUYR includes thermal protection to prevent overheating. If the device is too hot or too cold, the charging process may be disrupted.
Incorrect Charging Settings: Incorrect software configuration or firmware settings can cause the IC to behave unexpectedly, especially in terms of charging thresholds.
Solutions:
Check the Battery’s Health: Use a battery management tool to verify the health and status of the battery. If the battery’s internal resistance has increased or it’s no longer holding a charge, it may need to be replaced.
Ensure Adequate Cooling: Ensure that the device is being operated within the recommended temperature range (usually between 0°C to 45°C). Check for thermal issues such as clogged vents or a malfunctioning cooling system.
Check Charging Settings: If you’re using custom firmware or software to configure the charging parameters, ensure that the settings are correct, particularly for charge termination voltage, charging current limits, and temperature thresholds.
3. Battery Not Recognized
In some cases, the BQ24780SRUYR fails to recognize the battery, and no charging or battery status information is displayed.
Possible Causes:
Communication Failure: The IC communicates with the battery via a dedicated SMBus or I2C interface . If there is an issue with this communication, the IC might not detect the battery correctly.
Disconnected or Faulty Battery: If the battery is not connected properly or has developed a fault, it will not be recognized by the IC.
Software or Firmware Error: In some cases, incorrect software settings or firmware corruption can prevent the IC from identifying the battery properly.
Solutions:
Check Communication Lines: Inspect the SMBus/I2C communication lines between the BQ24780SRUYR and the battery. Use an oscilloscope to check for proper data transmission.
Reconnect the Battery: Ensure that the battery is properly connected to the system and that there are no physical or electrical faults. If necessary, replace the battery to rule out a faulty cell.
Re-flash Firmware: If a software or firmware error is suspected, try re-flashing the firmware to ensure proper configuration and detection of the battery.
Advanced Troubleshooting and Solutions
While basic troubleshooting steps can resolve many common issues, more complex situations may require a deeper dive into the BQ24780SRUYR’s functionality. In this section, we will explore advanced troubleshooting steps for more challenging problems and provide solutions to ensure long-term stability and performance.
4. Device Not Powering On
If the device is not powering on, even with a functioning battery and adapter, the problem could be due to a fault in the power management or power path.
Possible Causes:
Faulty Power Path Switching: The BQ24780SRUYR integrates a power path switch that alternates between battery and adapter power. If this circuit malfunctions, the device may fail to power on.
Low or Dead Battery: If the battery voltage is too low, the IC might prevent the device from powering on to protect the battery.
Faulty Adapter: If the adapter is malfunctioning or supplying inadequate power, the device will not receive the required power to boot.
Solutions:
Check Power Path Components: Use an oscilloscope to verify that the power path switching is functioning correctly. Inspect components such as MOSFETs , diodes, and resistors related to power management.
Measure Battery Voltage: Ensure that the battery voltage is above the minimum operating voltage for the device. If it’s below the threshold, the device may not power on.
Replace or Test Adapter: Confirm that the power adapter is providing the correct output voltage and current. Test with a different adapter if necessary.
5. Thermal Shutdown
Thermal shutdown is a safety feature that prevents the IC from charging the battery when the temperature exceeds a certain threshold. If the device is getting too hot during charging, it may trigger this feature.
Possible Causes:
Overheating Due to High Current: Charging at too high of a current or charging in an environment with inadequate ventilation can cause excessive heat buildup.
Faulty Thermal Sensors : If the temperature sensor is malfunctioning, it may trigger thermal shutdown even when the temperature is normal.
Solutions:
Reduce Charging Current: If your device allows, reduce the charging current to a lower setting to decrease the amount of heat generated during charging.
Improve Cooling: Ensure that the device has proper ventilation or active cooling to keep temperatures within a safe range.
Check Thermal Sensors: Use a multimeter or thermal camera to check for correct operation of the thermal sensors. If needed, replace the temperature sensor or check the connections.
6. Error Indicators or Faulty Status Signals
Sometimes, the BQ24780SRUYR may output error indicators or faulty status signals, causing confusion during operation.
Possible Causes:
Faulty Status Pin Connections: If the status pins are incorrectly connected or if there is an issue with the pull-up resistors, error codes may not be displayed correctly.
Overcurrent or Short Circuit: If there is an overcurrent condition or a short circuit in the power path, the IC may output an error signal to indicate a fault.
Solutions:
Verify Status Pin Connections: Double-check the connections of the status pins (e.g., STAT1 and STAT2) and ensure they are connected as per the datasheet recommendations.
Inspect for Short Circuits: Use a multimeter to check for short circuits or overcurrent conditions in the power path. If a fault is detected, isolate the affected circuit and resolve the issue.
Conclusion
The BQ24780SRUYR is an excellent choice for managing charging and power distribution in portable devices, offering a broad range of features and protections. However, like all complex electronics, it can occasionally encounter issues. By following the troubleshooting steps outlined in this guide, users can identify and resolve most common problems with the BQ24780SRUYR and keep their devices running smoothly. With the right knowledge and diagnostic tools, even advanced issues can be addressed, ensuring the long-term reliability of your device.
