Common Troubleshooting for ATMEGA64A-AU Microcontroller

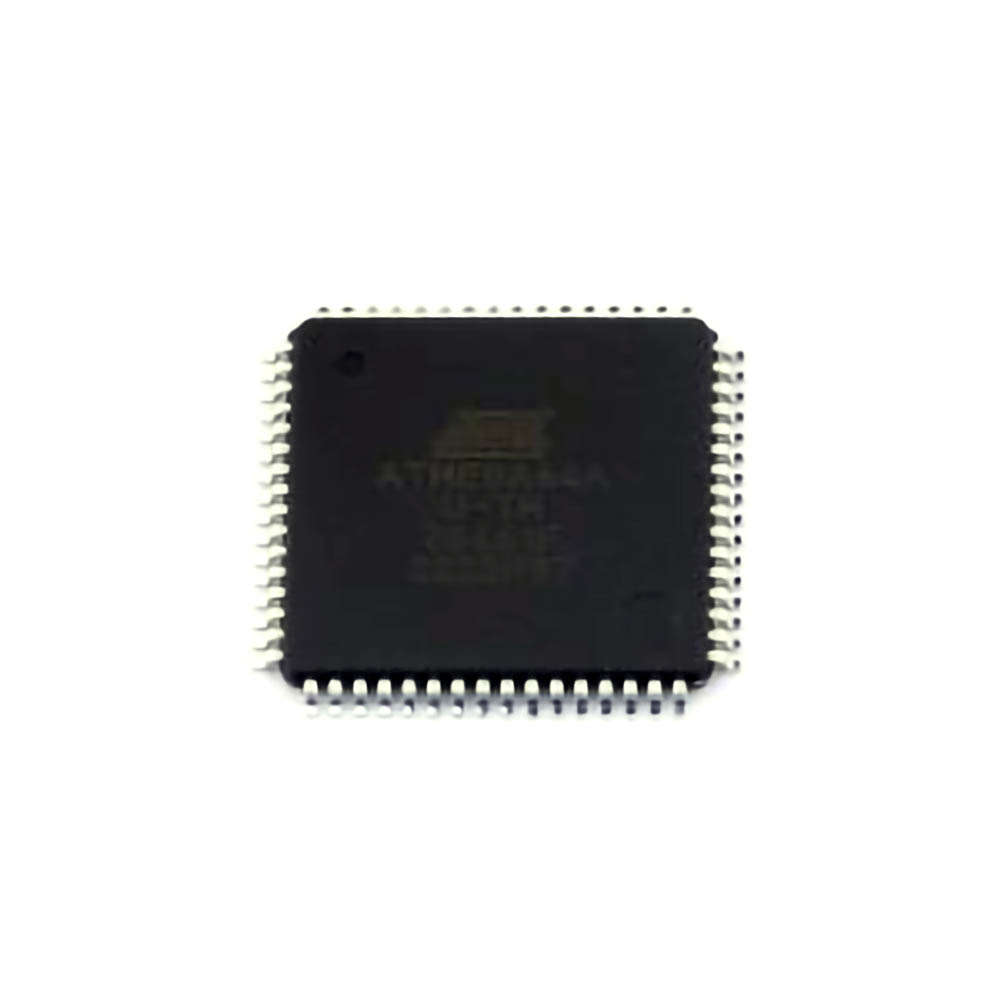

The MICROCHIP ATMEGA64A-AU is a widely used microcontroller known for its versatility and robustness, typically employed in embedded systems and digital electronics. However, despite its popularity, users may encounter various problems during development, ranging from communication failures to hardware malfunctions. Understanding how to troubleshoot these issues efficiently can significantly improve your development cycle. This article delves into common problems associated with the ATMEGA64A-AU and provides practical solutions to address these issues.
1. Power Issues: A Frequent Culprit
One of the most common problems with any microcontroller, including the ATMEGA64A-AU, is power-related issues. If the microcontroller does not power up correctly or behaves erratically, the cause often lies in the power supply or the voltage regulator.
Problem: Microcontroller not powering on.
Possible Causes:
Incorrect power supply voltage.
Faulty or improperly connected power pins.
Power consumption exceeding the capacity of the power supply.
Solution:
Ensure that the ATMEGA64A-AU is receiving the correct voltage, typically 2.7V to 5.5V.
Double-check the VCC and GND connections. A poor connection could prevent the microcontroller from receiving power.
If you are using a voltage regulator, ensure that it is functioning properly and providing a stable output voltage.
Verify that the power source can supply the required current. The ATMEGA64A-AU can consume significant current under certain operating conditions, such as when using peripherals like LED s or sensors.
Preventive Measures:
Always use a well-regulated power supply with adequate current capacity for your system.
Consider using decoupling capacitor s near the power pins to reduce voltage fluctuations.
2. Programming and Bootloading Failures
Another area where users frequently encounter issues is during programming or bootloading the ATMEGA64A-AU. The failure to load or run the firmware correctly can be frustrating, especially if no obvious error is displayed.
Problem: The microcontroller is not responding to programming attempts.
Possible Causes:
Incorrect fuse settings.
Faulty connections to the ISP (In-System Programming) pins.
Bootloader failure or incorrect configuration.
Solution:
Verify that the correct fuse settings are configured. For example, ensure that the microcontroller is set to use the external Clock source if that’s what you intend.
Check the ISP connections. Ensure that the SPI lines (MOSI, MISO, SCK, and RESET) are properly connected to the programming device.
If using a bootloader, verify that the bootloader is correctly installed. You might need to reprogram the bootloader or reinitialize the fuse settings to correct any issues.
Preventive Measures:
Use a reliable programmer (e.g., USBasp, AVRISP, or JTAG) and confirm that your programming tool is compatible with the ATMEGA64A-AU.
Regularly check fuse settings when you make significant changes to your firmware or hardware setup.
3. Communication Errors
Communication issues are prevalent when the ATMEGA64A-AU interacts with other devices or external peripherals. These issues can manifest as garbled data or complete failure to communicate over serial, I2C, or SPI interface s.
Problem: Serial communication failure (UART not working).
Possible Causes:
Mismatch in baud rates or incorrect communication parameters.
Hardware issues with UART lines (TX/RX).
Incorrect or missing pull-up resistors for I2C or SPI communication.
Solution:
Ensure that both devices communicating via UART are using the same baud rate, parity settings, stop bits, and data bits.
Verify that the TX and RX lines are correctly connected, and the microcontroller is configured to use the correct communication port.
For I2C or SPI communication, check that the correct clock speeds and data format are set. Additionally, ensure that the necessary pull-up resistors are connected to the SDA and SCL lines for I2C or to the MISO/MOSI lines for SPI.
Preventive Measures:
Double-check the connections of UART, I2C, or SPI lines during setup.
Always ensure that the software initialization of communication peripherals matches the hardware configuration.
4. Clock Configuration Problems
Incorrect clock configuration is another common problem that can prevent the ATMEGA64A-AU from working as expected, particularly when switching between internal and external clock sources or when configuring clock dividers.
Problem: System clock not configured correctly.
Possible Causes:
Incorrect fuse settings for clock source selection.
Incorrect clock divider settings.
Problems with external crystals or oscillators.
Solution:
Verify that the fuses are set correctly for the desired clock source. If you are using an external crystal, ensure that the correct fuse is set to use an external oscillator.
If the clock is too fast or too slow, check the clock prescaler or divider settings in the firmware to ensure they match the required system speed.
If using an external crystal, verify that it is properly connected and functioning, and ensure it meets the specifications required for the ATMEGA64A-AU.
Preventive Measures:
When switching clock sources, always double-check the fuse settings and clock parameters.
Use a known, stable crystal or oscillator for your system’s timing needs.
Advanced Troubleshooting and Solutions for ATMEGA64A-AU
Now that we’ve covered the basics of power, programming, and communication troubleshooting for the ATMEGA64A-AU, let’s delve deeper into more advanced issues that developers may face. This part of the guide will focus on peripherals, external devices, and software debugging, providing a comprehensive approach to solving more complex problems.
5. Peripheral Malfunctions
The ATMEGA64A-AU is equipped with a range of on-chip peripherals like ADC, PWM, timers, and analog comparator s. Problems with these peripherals are common, especially when configuring them for specific tasks such as sensor readings or controlling motors.
Problem: ADC not providing accurate readings.
Possible Causes:
Incorrect ADC reference voltage settings.
Noise or interference in the analog signal.
Incorrect sampling time or clock settings.
Solution:
Ensure that the reference voltage for the ADC is correctly set, either using VCC or an external reference. An improper reference voltage can skew the readings.
Minimize noise on the analog input by using proper shielding and keeping analog and digital grounds separate.
Adjust the ADC clock to ensure optimal sampling time for accurate readings. If necessary, use the ADC prescaler to slow down the ADC clock for more stable results.
Preventive Measures:
Use low-pass filters on the analog inputs to reduce noise and ensure stable ADC readings.
Regularly calibrate the ADC if precise measurements are required in your application.
6. Memory Issues: Corruption or Overflow
Memory-related issues, such as data corruption or stack overflow, can cause the ATMEGA64A-AU to behave unexpectedly or even crash during runtime. These issues often stem from improper memory management or buffer overflows.
Problem: Data corruption or application crashes.
Possible Causes:
Buffer overflows or improper array handling.
Stack overflow due to excessive function calls or local variable usage.
Incorrect initialization of memory regions.
Solution:
Review your code for potential buffer overflows, especially when handling strings or large data arrays. Ensure that you do not exceed the allocated memory space.
Ensure proper stack size allocation if using deep recursion or multiple nested function calls.
Use memory allocation functions (like malloc) carefully and ensure that all allocated memory is initialized before use.
Preventive Measures:
Regularly test your software with boundary conditions to catch memory overflow issues early in development.
Use watchdog timers and regular software resets to recover from unexpected crashes.
7. Temperature and Environmental Factors
External environmental conditions, such as temperature or humidity, can have an impact on the performance of the ATMEGA64A-AU, especially when operating in extreme conditions.
Problem: Microcontroller behavior changes with temperature variations.
Possible Causes:
The microcontroller’s operating conditions exceed its rated temperature range.
Voltage regulators or external components malfunction due to temperature fluctuations.
Solution:
Check the datasheet for the temperature range of the ATMEGA64A-AU and ensure that the microcontroller operates within the recommended limits.
Use external components rated for your operating environment, such as temperature-compensated voltage regulators or sensors.
Consider adding heat sinks or using active cooling if your system operates in a high-temperature environment.
Preventive Measures:
Monitor temperature during development, especially if your application will be used in harsh environments.
Choose components with a wide operating temperature range when designing the system.
By following these troubleshooting techniques and preventative measures, you can ensure smoother development and operation of your ATMEGA64A-AU-based projects. Whether you are tackling power issues, programming failures, or peripheral malfunctions, addressing these challenges early can save you valuable time and effort in your embedded systems development.
