Introduction to ATMEGA32A-AU Troubleshooting

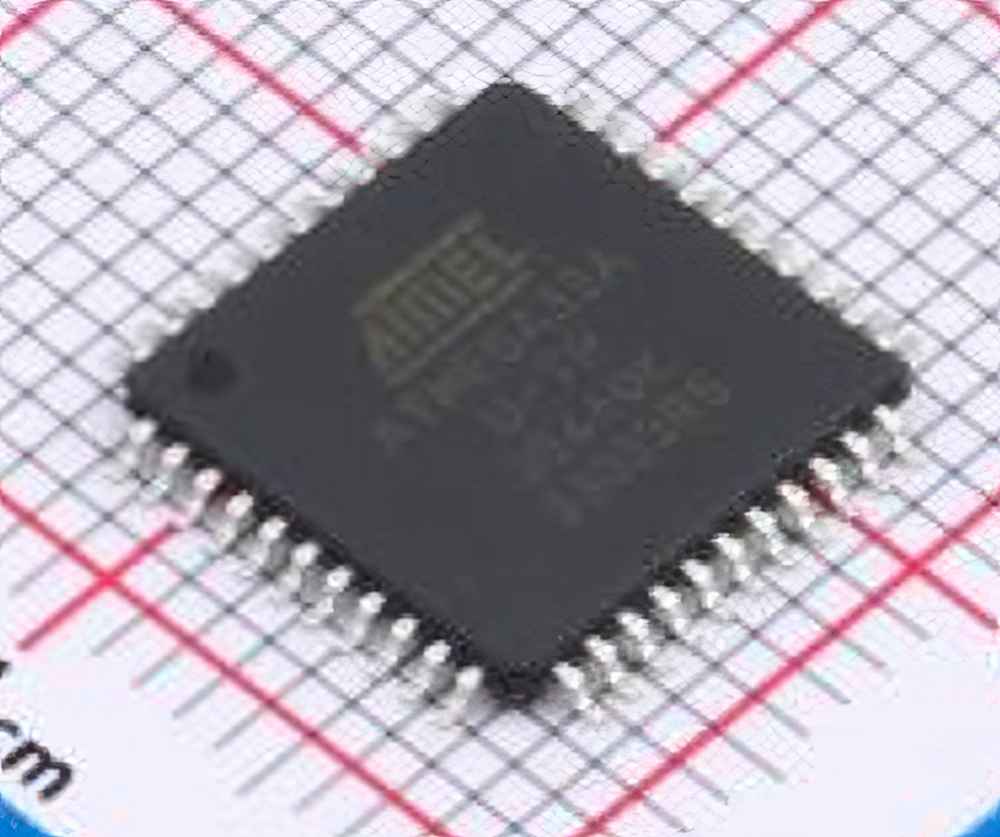

The MICROCHIP ATMEGA32A-AU microcontroller is a versatile and widely used chip in embedded system projects. Whether you’re a hobbyist, student, or professional engineer, working with the ATMEGA32A-AU comes with its own set of challenges. While the chip offers exceptional performance with its 32KB flash Memory , 2KB SRAM, and 1KB EEPROM, it’s not immune to occasional issues. These problems can range from simple misconfigurations to hardware malfunctions. In this guide, we’ll walk through common troubleshooting scenarios and provide solutions to get your project back on track quickly and effectively.
1. Power Supply Issues
One of the most common problems with the ATMEGA32A-AU is insufficient or unstable power supply. Microcontrollers like the ATMEGA32A-AU are highly sensitive to voltage fluctuations, which can lead to unexpected resets or failure to start. The chip operates between 2.7V and 5.5V, and any deviation beyond this range can result in malfunctioning.
Solution:
Ensure the power supply is stable and within the specified voltage range.
Use capacitor s (100nF or 10µF) near the power supply pins to smooth out any fluctuations and provide additional stability.
Check the voltage regulator for any faults or incorrect connections.
2. Incorrect Clock Source Configuration
The ATMEGA32A-AU comes with several clock options, such as an internal RC oscillator, an external crystal, or an external clock source. If the clock source is misconfigured, the microcontroller may fail to execute the program correctly, or it may run at an incorrect speed.
Solution:
Verify the clock source selection in the fuse settings.
If using an external crystal, ensure that the crystal is properly connected and that capacitors are correctly placed (usually 22pF).
If the internal oscillator is used, consider calibrating it to ensure accurate operation.
3. Inconsistent or Missing Input/Output Functionality
Another common issue occurs when the I/O pins of the ATMEGA32A-AU don’t behave as expected. This could be due to improper pin configuration or conflicts in the software.
Solution:
Double-check the configuration of each pin (input, output, or alternative functions) in your code.
Ensure that the relevant registers, like DDRx (Data Direction Register) and PORTx (Data Register), are set correctly.
If using peripherals (e.g., UART, SPI, ADC), make sure that the correct pins are mapped to the respective functions in your software.
4. Communication Problems
Serial communication (USART), I2C, and SPI are often used to interface with other devices. If there are issues with communication, such as garbled data or no data transmission, it could be due to incorrect baud rates, mismatched clock speeds, or improper wiring.
Solution:
Verify that the baud rate and clock settings match between the ATMEGA32A-AU and the other communicating devices.
Check the wiring for any loose connections or shorts, especially for I2C and SPI, which require precise wiring.
Review the software configuration to ensure the right mode (master/slave) is selected.
5. Brown-Out Reset (BOR) and Reset Pin Issues
The ATMEGA32A-AU has built-in brown-out detection, which resets the chip if the supply voltage falls below a certain threshold. While this feature is useful, it can cause unwanted resets if the voltage dips near the threshold.
Solution:
Set the brown-out voltage threshold correctly in the fuse settings.
Consider disabling the brown-out detection if it is causing false resets (though this is not recommended for all applications).
Check the reset pin to ensure it is not inadvertently being triggered by noise or a faulty connection.
6. Memory Overflows and Stack Corruption
If your program encounters memory overflows or stack corruption, it may crash or exhibit unpredictable behavior. This often happens when the microcontroller’s memory limits are exceeded, or improper memory access is attempted.
Solution:
Monitor the stack usage in your program, particularly if recursive functions or large local variables are used.
Use techniques such as dynamic memory management or memory protection to avoid overflows.
Optimize your code to minimize memory consumption by using smaller data types and efficient algorithms.
Advanced Troubleshooting and Solutions
While the issues discussed in Part 1 are the most common, there are more advanced scenarios that can arise when working with the ATMEGA32A-AU. These problems often require a deeper understanding of the hardware and software and can sometimes be tricky to identify. In this section, we’ll cover advanced troubleshooting tips for more complex issues.
7. ADC Conversion Errors
The ATMEGA32A-AU includes an integrated analog-to-digital converter (ADC) that allows you to measure analog signals. However, if the ADC readings are inaccurate or unstable, it could be due to several factors, such as poor grounding, reference voltage instability, or incorrect clock settings.
Solution:
Ensure the ADC reference voltage (AREF) is stable and within the recommended range (usually VCC or an external voltage reference).
Use a decoupling capacitor (typically 100nF) near the AREF pin to reduce noise.
Check the ADC prescaler to ensure that the ADC clock is within the recommended range for accurate conversion.
8. Floating Pins and Input Interference
Floating input pins are a frequent cause of erratic behavior in embedded systems. If the I/O pins are left unconnected or improperly initialized, they may pick up noise or cause unpredictable behavior.
Solution:
Always initialize pins as either inputs or outputs in your program.
Use pull-up or pull-down resistors on input pins that are not connected to an external signal. This will ensure that the pins are not left floating.
For analog input pins, use external components like voltage dividers to prevent them from floating.
9. Firmware Issues and Bootloader Problems
In certain cases, firmware corruption or a malfunctioning bootloader can prevent the ATMEGA32A-AU from starting up or executing the program properly. This can happen if the firmware is improperly loaded, or the bootloader is disabled.
Solution:
Try reprogramming the ATMEGA32A-AU using an external programmer, such as a USBasp or USBtinyISP, to load the firmware again.
If the bootloader is malfunctioning, consider disabling it and directly programming the chip using a programmer.
Verify that the bootloader settings in the fuse registers are correct for your application.
10. Hardware Damage and Overheating
Although not common, it’s possible for the ATMEGA32A-AU to suffer physical damage, such as pin damage or internal circuitry failure, especially if exposed to excessive heat or voltage spikes. This can result in inconsistent behavior or complete failure to operate.
Solution:
Inspect the microcontroller for any visible signs of damage, such as burnt components or cracked pins.
Ensure that the microcontroller is operating within the thermal limits by providing proper heat dissipation (especially in high-power applications).
If you suspect hardware damage, replace the microcontroller and carefully test the new one before use.
11. Debugging Tools and Techniques
When all else fails, utilizing proper debugging tools can be the key to identifying the issue with your ATMEGA32A-AU. Debuggers, oscilloscopes, and logic analyzers can provide a detailed view of your system’s behavior and help you pinpoint the root cause of the problem.
Solution:
Use a JTAG or ISP programmer with debugging support to step through your code and inspect variable values.
Use an oscilloscope or logic analyzer to check the signal integrity of critical I/O pins and communication lines.
Implement serial debugging by sending status messages to a terminal, helping you trace the execution flow and identify any anomalies.
Conclusion
Troubleshooting the ATMEGA32A-AU microcontroller can be challenging, but with the right approach and understanding, most issues can be resolved quickly. By following the common troubleshooting steps outlined above, you can ensure that your embedded projects run smoothly and efficiently. Whether it’s a simple power issue or a more complex software bug, this guide provides the solutions you need to get your microcontroller working optimally. Happy debugging!
