Understanding the AT24C512C-SSHD-T EEPROM and Common Issues

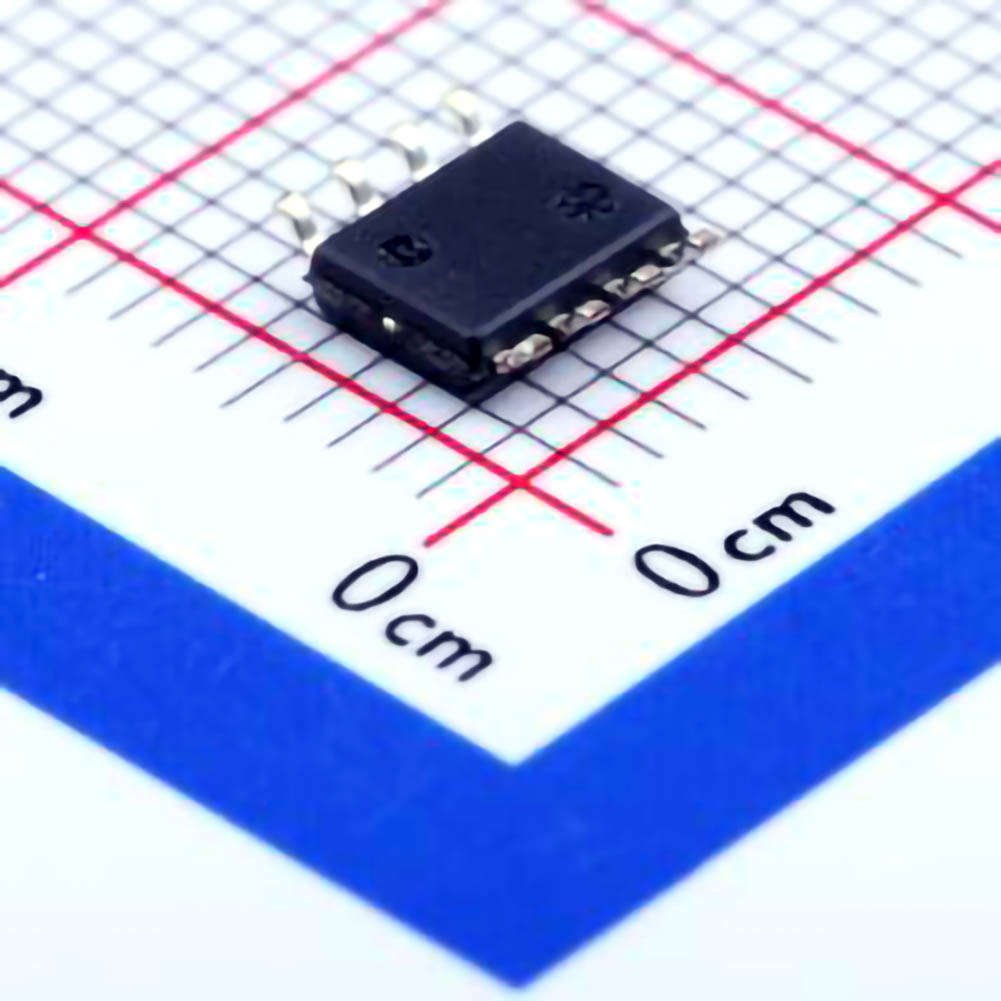

The AT24C512C-SSHD-T is a 512K-bit EEPROM ( Electrical ly Erasable Programmable Read-Only Memory ) with I2C interface designed for use in various embedded applications. Its small form factor and low Power consumption make it a popular choice in fields ranging from consumer electronics to industrial control systems. However, like any electronic component, the AT24C512C-SSHD-T is not immune to problems. Understanding common troubleshooting steps and preventive measures can help maintain its longevity and reliability.
1. I2C Communication Failures
The AT24C512C-SSHD-T operates using the I2C protocol, which involves two main lines: SCL (clock) and SDA (data). Communication errors between the EEPROM and the microcontroller are one of the most frequent issues users face. There are several reasons why I2C communication may fail, including:
Incorrect Pull-up Resistors : The I2C lines require pull-up resistors to function correctly. If these resistors are either missing or have incorrect values, data transfer can be corrupted or entirely blocked. For the AT24C512C-SSHD-T, a typical pull-up resistor value is between 4.7kΩ and 10kΩ.
Bus Contention: If multiple devices on the I2C bus are trying to communicate simultaneously, bus contention can occur, resulting in communication failures. This issue is more common in systems with several I2C peripherals. Ensuring that each device has a unique address and properly handling bus arbitration can solve this problem.
Signal Integrity Issues: Long cables or traces can introduce noise and signal degradation, leading to corrupted data. Using shorter and well-shielded cables or ensuring that PCB traces are properly routed and minimized can mitigate this issue.
Solution: To resolve I2C communication issues, verify the pull-up resistor values, check for bus contention, and improve signal integrity. Using an oscilloscope to monitor the signal waveform can help pinpoint communication problems.
2. Data Corruption
One of the primary functions of the AT24C512C-SSHD-T is storing critical data. However, data corruption may occur due to a variety of factors, including:
Power Failures: Sudden power loss during a write operation can cause incomplete or corrupted data to be stored
