This article explores the applications and optimization techniques of the BQ7694003DBTR , a highly integrated Battery Management System (BMS) IC designed for multi-cell lithium-ion and lithium-polymer Batteries . It highlights its role in enhancing the performance, safety, and longevity of battery systems used in electric vehicles (EVs), energy storage systems (ESS), and other advanced battery applications. By delving into its features and optimization strategies, this article provides insights into maximizing the efficiency and reliability of multi-cell battery systems.
BQ7694003DBTR, Battery Management System (BMS), Multi-Cell Battery, Lithium-Ion Batteries, Battery Performance, Battery Optimization, Electric Vehicles (EV), Energy Storage Systems (ESS), Battery Safety, Battery Life, Voltage Balancing, Battery Monitoring.
The Role of BQ7694003DBTR in Multi-Cell Battery Management Systems
In today’s world, where the demand for energy storage is rapidly growing, especially for electric vehicles (EVs) and renewable energy storage systems, efficient and reliable Battery Management Systems (BMS) are at the heart of these applications. Among the many solutions available, the BQ7694003DBTR from Texas Instruments (TI) stands out as a versatile and Power ful BMS integrated circuit (IC) for multi-cell lithium-ion (Li-ion) and lithium-polymer (LiPo) battery systems. This device plays a crucial role in monitoring, protecting, and managing the performance of battery packs, ensuring their safe operation and maximizing their lifespan.
What is the BQ7694003DBTR?

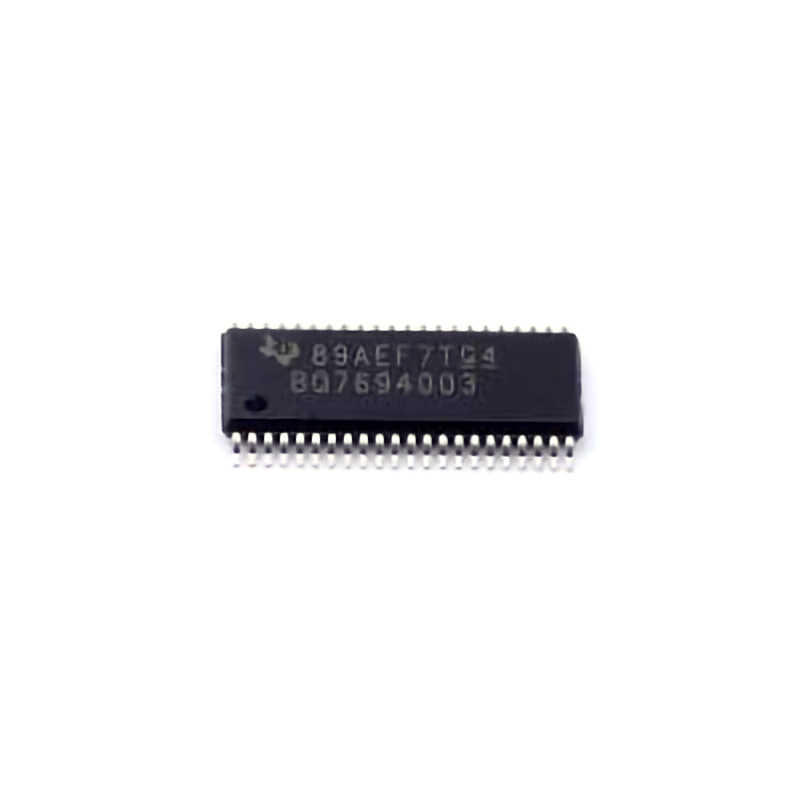

The BQ7694003DBTR is a highly integrated BMS IC that supports up to 15 series-connected cells in a Li-ion or LiPo battery pack. It’s designed to manage the voltage, temperature, and current levels of the battery cells to optimize performance while preventing potential hazards, such as overvoltage, undervoltage, overcurrent, and overheating. This IC is commonly used in a range of applications from EVs and energy storage systems to drones, power tools, and portable devices.
Key Features and Benefits
Multi-Cell Monitoring:
The BQ7694003DBTR can monitor up to 15 cells in series, making it ideal for large battery packs used in electric vehicles or energy storage systems. It provides individual cell voltage monitoring, which is crucial for detecting any discrepancies in the voltage levels between cells.
Integrated Protection:
One of the most important features of any BMS is the safety mechanism it provides. The BQ7694003DBTR has built-in protection against overcharge, overdischarge, overcurrent, and thermal events. This feature ensures that the battery operates within safe parameters, reducing the risk of thermal runaway, fire, or system failure.
Cell Balancing:
Cell balancing is critical for maintaining the longevity and performance of the battery pack. The BQ7694003DBTR supports both passive and active cell balancing techniques, ensuring that all cells in the pack remain at an equal voltage level. This reduces the likelihood of individual cells becoming overcharged or overdischarged, thus improving overall battery life and efficiency.
High Precision Analog Front End:
The IC incorporates a high-precision analog-to-digital converter (ADC) that can measure voltage and temperature with high accuracy. This precision is vital for ensuring optimal battery performance and preventing underperformance due to inaccurate monitoring.
Integrated FET Drivers :
It includes integrated field-effect transistor (FET) drivers, reducing the need for external components. This integration helps simplify the system design and saves board space, making it ideal for compact applications.
Flexible Communication :
The BQ7694003DBTR supports communication protocols like I2C and SMBus, making it easy to interface with a microcontroller or host processor. This flexibility ensures that the system can be adapted to various applications, whether for consumer electronics or industrial energy storage.
Applications of the BQ7694003DBTR
The BQ7694003DBTR is widely used in multiple industries, particularly where large-scale battery systems are involved. Some key applications include:
Electric Vehicles (EVs):
In EVs, battery packs are often composed of many cells connected in series to achieve the desired voltage. The BQ7694003DBTR plays a central role in monitoring and protecting the battery pack. It helps to ensure that each cell operates within safe voltage and temperature ranges, improving the overall vehicle efficiency and safety. Moreover, by preventing battery degradation and overcharging, the BMS helps extend the vehicle’s driving range.
Energy Storage Systems (ESS):
As the world shifts toward renewable energy sources like solar and wind, energy storage systems are becoming increasingly essential. The BQ7694003DBTR is ideal for ESS applications where large battery packs store energy from solar panels or wind turbines. It ensures the stored energy is safely distributed and that the battery operates efficiently throughout its lifespan.
Drones and Robotics:
Battery systems used in drones and robotics require constant monitoring to ensure long operational lifespans and efficient power usage. The BQ7694003DBTR is capable of managing small, high-density battery packs for these applications, providing necessary protection features and ensuring high system reliability.
Portable Power Tools and Electronics:
For battery-operated power tools and consumer electronics, the BQ7694003DBTR provides an essential safeguard against power-related issues. By optimizing battery usage and providing real-time status updates, it ensures that the device operates smoothly without unexpected shutdowns due to battery issues.
Optimizing the Performance of the BQ7694003DBTR in Multi-Cell Systems
While the BQ7694003DBTR provides essential features out of the box, the performance of the BMS can be further optimized for specific use cases by employing various strategies. Here are some common optimization techniques:
Fine-Tuning Voltage and Temperature Thresholds:
The BQ7694003DBTR allows users to configure custom voltage and temperature thresholds. By fine-tuning these parameters according to the specific battery chemistry and application, the system can achieve a more precise balance between safety and performance. For instance, the threshold for overvoltage protection may be set lower for a more sensitive battery chemistry or adjusted higher for increased energy capacity.
Optimizing Cell Balancing:
The balancing technique, whether passive or active, plays a crucial role in enhancing battery lifespan. By selecting the appropriate balancing strategy based on the battery pack’s characteristics and the application requirements, users can maximize performance. Active balancing, for example, is ideal for larger systems where efficiency is paramount, while passive balancing might be sufficient for smaller applications.
Enhanced State-of-Charge (SOC) and State-of-Health (SOH) Estimation:
Accurate SOC and SOH estimation is essential for maximizing the battery’s longevity and performance. With the use of advanced algorithms and calibration techniques, the BQ7694003DBTR can offer highly accurate estimations, providing real-time data to users for improved decision-making and power management.
Utilizing Low Power Modes:
For applications that require battery packs to be in standby or low-power modes, optimizing the power consumption of the BMS itself is critical. The BQ7694003DBTR offers low-power modes, allowing the system to monitor the battery with minimal energy draw, which is especially important in portable and remote applications.
Advanced Optimization and Future Prospects of BQ7694003DBTR in Battery Management Systems
As battery technologies evolve and applications demand more sophisticated energy solutions, the role of the BQ7694003DBTR in multi-cell battery management continues to expand. The optimization of its features, alongside advances in battery management technology, opens the door for even more innovative uses and improved performance. In this section, we will explore some advanced optimization strategies, emerging trends in battery management, and future prospects for the BQ7694003DBTR.
Advanced Optimization Strategies
To fully unlock the potential of the BQ7694003DBTR, several advanced optimization strategies can be employed to enhance battery performance, reliability, and lifespan.
Dynamic Cell Balancing Algorithms:
Rather than using static balancing methods, dynamic algorithms can adjust the balancing operation in real-time based on changing conditions. For example, during fast charging or discharging, the algorithm could prioritize balancing cells that are more likely to fall out of sync, enhancing performance in demanding situations. Additionally, algorithms can monitor and compensate for individual cell degradation over time, helping to preserve the overall health of the battery pack.
Machine Learning for Predictive Battery Maintenance:
With the advent of machine learning (ML) and artificial intelligence (AI), predictive maintenance for battery systems is becoming a reality. By analyzing the data provided by the BQ7694003DBTR, machine learning algorithms can predict when a cell or the entire battery pack might fail or need maintenance. These predictive models can help users take preventive actions to mitigate issues before they affect performance, ultimately extending the life of the battery.
Advanced Thermal Management Integration:
The thermal performance of a battery is a crucial factor that affects both its safety and lifespan. By integrating advanced thermal management solutions with the BQ7694003DBTR, users can more efficiently regulate the temperature across the battery pack. This could involve the use of external cooling systems or phase-change materials that respond to the heat generated during charge/discharge cycles, further enhancing the safety and longevity of the battery system.
Enhanced Communication and Data Analytics:
By integrating advanced data analytics tools and cloud-based platforms, the data provided by the BQ7694003DBTR can be used to monitor battery health and performance remotely. Real-time data collection, predictive analytics, and remote diagnostics can be used for fleet management in electric vehicles or energy storage systems, ensuring that the system runs at peak efficiency and any potential issues are addressed before they cause significant downtime.
Emerging Trends in Battery Management
Wireless Battery Management:
One of the emerging trends is the development of wireless communication technologies for BMS. With the BQ7694003DBTR already supporting flexible communication protocols, integrating wireless solutions could allow for remote monitoring and control of the battery pack. This is particularly useful in large-scale applications such as energy storage systems or EV fleets, where managing multiple battery packs can be cumbersome.
Integration with Renewable Energy Systems:
As the global transition to renewable energy continues, integrating BMS ICs like the BQ7694003DBTR with smart grid systems is an exciting frontier. Batteries in energy storage systems can be optimized not only for performance but also for integration with solar panels, wind turbines, and energy grid management systems, further enhancing the flexibility and efficiency of power distribution networks.
Next-Generation Battery Chemistries:
With ongoing research into new battery chemistries, such as solid-state batteries and lithium-sulfur batteries, the role of the BQ7694003DBTR will need to adapt. These new chemistries promise higher energy densities and better safety characteristics, but they also introduce new challenges for battery management. TI’s BQ7694003DBTR will likely evolve to accommodate these innovations, ensuring that next-generation batteries can be efficiently and safely managed.
The Future of Multi-Cell Battery Management
As battery technology continues to advance and the demand for energy storage solutions grows, the importance of robust BMS solutions like the BQ7694003DBTR cannot be overstated. Future developments will likely focus on improving efficiency, reducing costs, and integrating with emerging technologies. Innovations in energy management, battery chemistries, and safety features will continue to push the boundaries of what is possible with multi-cell battery systems, and the BQ7694003DBTR will remain at the forefront of these developments, ensuring safe, reliable, and optimized battery management for years to come.
In conclusion, the BQ7694003DBTR offers a highly effective solution for managing multi-cell battery packs, with advanced features that ensure performance optimization, safety, and longevity. By employing advanced optimization strategies and staying abreast of emerging trends, engineers can maximize the potential of their battery systems, whether in electric vehicles, energy storage systems, or other innovative applications. The future of battery management holds immense promise, and the BQ7694003DBTR will undoubtedly play a significant role in shaping that future.
