This article explores the application of the TPS568215RNNR , a high-efficiency buck converter, in high Power density circuits. It emphasizes how this component, combined with effective Thermal Management strategies, can optimize performance and reliability in demanding applications.
TPS568215RNNR, high power density, buck converter, thermal optimization, efficiency, power electronics, thermal Management , power supply design, high-efficiency DC-DC conversion, circuit design.
Introduction to TPS568215RNNR and High Power Density Applications
In the rapidly evolving world of electronics, power efficiency and thermal management have become essential factors in circuit design, especially in applications requiring high power density. Whether in telecommunications, computing, industrial automation, or automotive systems, the demand for compact, high-performance power converters is growing. A prime example of cutting-edge technology in this area is the TPS568215RNNR — a high-efficiency, synchronous buck converter designed by Texas Instruments. This device has quickly become a top choice for engineers looking to create compact power supplies with excellent thermal management in high power density applications.

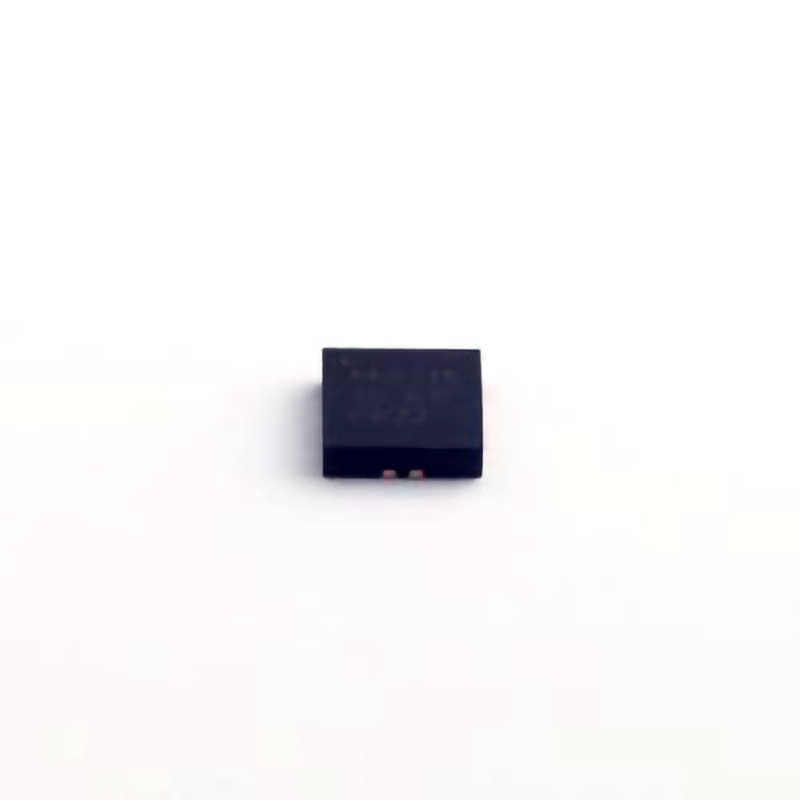

What is TPS568215RNNR?
The TPS568215RNNR is a sophisticated DC-DC buck converter designed to efficiently step down voltage from higher input levels to lower output levels with minimal power loss. With its integrated features, the TPS568215RNNR offers a peak efficiency of up to 96%, which is particularly advantageous in high power density systems where heat dissipation is critical. This device is rated for input voltages from 4.5V to 60V and provides a wide output voltage range, making it highly versatile across a variety of applications.
Key attributes of the TPS568215RNNR include:
Integrated Power MOSFETs : This helps reduce the component count and simplifies the design process.
Adaptive On-Time Control: This allows for greater efficiency across a wide range of input and output voltages.
Internal Compensation: Eliminates the need for external components, saving board space and reducing complexity.
Low Quiescent Current: Essential for low-power operation and maintaining system efficiency, even under light load conditions.
Importance of High Power Density
In high-performance electronics, power density is a crucial parameter. Power density refers to the amount of power delivered in a given volume or area. As electronic devices become smaller and more powerful, designers are pushed to pack more power into smaller spaces. High power density circuits are particularly important in applications where space is limited, such as in smartphones, drones, electric vehicles, and data centers.
However, achieving high power density often comes with significant challenges. One of the most pressing concerns is thermal management. High power density can lead to excessive heat generation, which, if not properly managed, can reduce the lifespan of components, degrade performance, and even cause failures. This is where the TPS568215RNNR stands out, offering high efficiency and effective thermal management features, making it a reliable choice for such demanding applications.
The Role of Thermal Optimization in High Power Density Circuits
When designing high power density circuits, engineers must balance performance, size, and heat dissipation. Power conversion efficiency is a key factor in managing this balance. Higher efficiency in a buck converter, such as the TPS568215RNNR, means less wasted energy is converted into heat. This results in reduced thermal stress on components, which is vital in high power density systems.
The TPS568215RNNR plays a significant role in thermal optimization by reducing the need for excessive cooling solutions, which can add cost, complexity, and size to the system. By integrating high-efficiency switching technology and effective power management, the device helps ensure that less energy is lost as heat, making it easier to maintain acceptable operating temperatures.
Moreover, with its compact form factor and high efficiency, the TPS568215RNNR is capable of supporting power delivery in systems that demand significant performance without compromising on thermal management. For designers, this means that using this component can help meet tight thermal design constraints while delivering robust power conversion.
Design Considerations for TPS568215RNNR in High Power Density Applications and Thermal Management Strategies
While the TPS568215RNNR offers significant benefits in terms of efficiency and power density, achieving optimal performance requires careful consideration of both the circuit design and thermal management strategies. In this section, we will explore how to leverage the features of the TPS568215RNNR for optimal performance in high power density applications, with a focus on effective thermal optimization.
Design Considerations for High Power Density Buck Circuits
When integrating the TPS568215RNNR into high power density circuits, several design considerations are important to maximize its potential:
PCB Layout and Component Placement: Proper layout design is crucial in ensuring the efficient operation of any buck converter. For the TPS568215RNNR, keeping the critical components such as input capacitor s, inductors, and output capacitors close to the device helps minimize power losses due to parasitic inductances and resistances. Proper routing of power and ground planes ensures that heat dissipation is maximized and thermal hot spots are avoided.
Inductor Selection: The choice of inductors is essential for optimizing efficiency and power density. A low-resistance, high-performance inductor will reduce losses and help improve the thermal behavior of the circuit. The TPS568215RNNR’s design works well with high-quality inductors that minimize core losses and allow the converter to operate with minimal thermal buildup.
Capacitor Selection: The input and output capacitors play a significant role in reducing voltage ripple, which can impact both the thermal performance and overall efficiency of the power converter. Ceramic capacitors with low ESR (equivalent series resistance) are generally preferred for high-efficiency buck converters like the TPS568215RNNR.
Feedback Compensation: The TPS568215RNNR features internal feedback compensation, which simplifies the design and improves the overall system stability. However, it's still essential to ensure the feedback loop is optimized for the specific load conditions of the application to prevent inefficiencies and excess heat generation.
Thermal Performance Monitoring: With the increasing demand for high power density, engineers need to monitor the thermal performance of the circuit closely. While the TPS568215RNNR offers excellent efficiency and internal thermal management features, external thermal sensors and monitoring circuits can provide real-time data to ensure that the system operates within safe temperature limits.
Thermal Optimization Strategies
Efficient thermal management is vital for maintaining the performance and reliability of high power density buck converters. Here are several strategies to improve thermal performance when using the TPS568215RNNR in demanding applications:
Optimizing Power Conversion Efficiency: As mentioned earlier, the efficiency of the TPS568215RNNR is key to reducing thermal output. By selecting the right components (capacitors, inductors, and MOSFETs) and optimizing the layout, designers can achieve higher efficiency, which reduces the amount of heat generated during power conversion.
Improved Heat Sink Design: While the TPS568215RNNR is designed to operate with minimal heat generation, external heat sinks or thermal pads can still help dissipate heat more effectively, especially when the converter is delivering higher output power. Proper heat sink selection and placement, as well as good thermal contact with the PCB, can significantly improve overall system thermal performance.
Use of Active Cooling: In some high-power applications, additional cooling methods, such as fans or Peltier coolers, might be necessary to maintain safe operating temperatures. This is particularly true in environments where ambient temperatures are high, or the power density is extreme. These cooling solutions can be integrated without compromising the compact size of the system.
Thermal Simulation: Before finalizing the design, thermal simulations can help predict how the system will behave under various load conditions. By using software tools to model heat distribution, designers can identify potential hot spots and take preemptive action to reduce thermal stress.
Ambient Temperature Management: Lastly, understanding the environment in which the power converter will operate is crucial. Designing for optimal airflow around the device and ensuring that ambient temperatures remain within the recommended limits for the TPS568215RNNR can prevent overheating and improve long-term reliability.
Conclusion
The TPS568215RNNR is an exceptional solution for high power density buck converter applications, offering high efficiency, compactness, and robust thermal management capabilities. By carefully considering PCB layout, component selection, and utilizing advanced thermal optimization techniques, engineers can design power supplies that meet the demanding requirements of modern high-performance electronics while maintaining system stability and longevity. As the trend toward miniaturization and increased power density continues, devices like the TPS568215RNNR will play a critical role in enabling innovative and efficient power conversion solutions for the future.
