Common Issues and Troubleshooting Solutions for ADXL343BCCZ

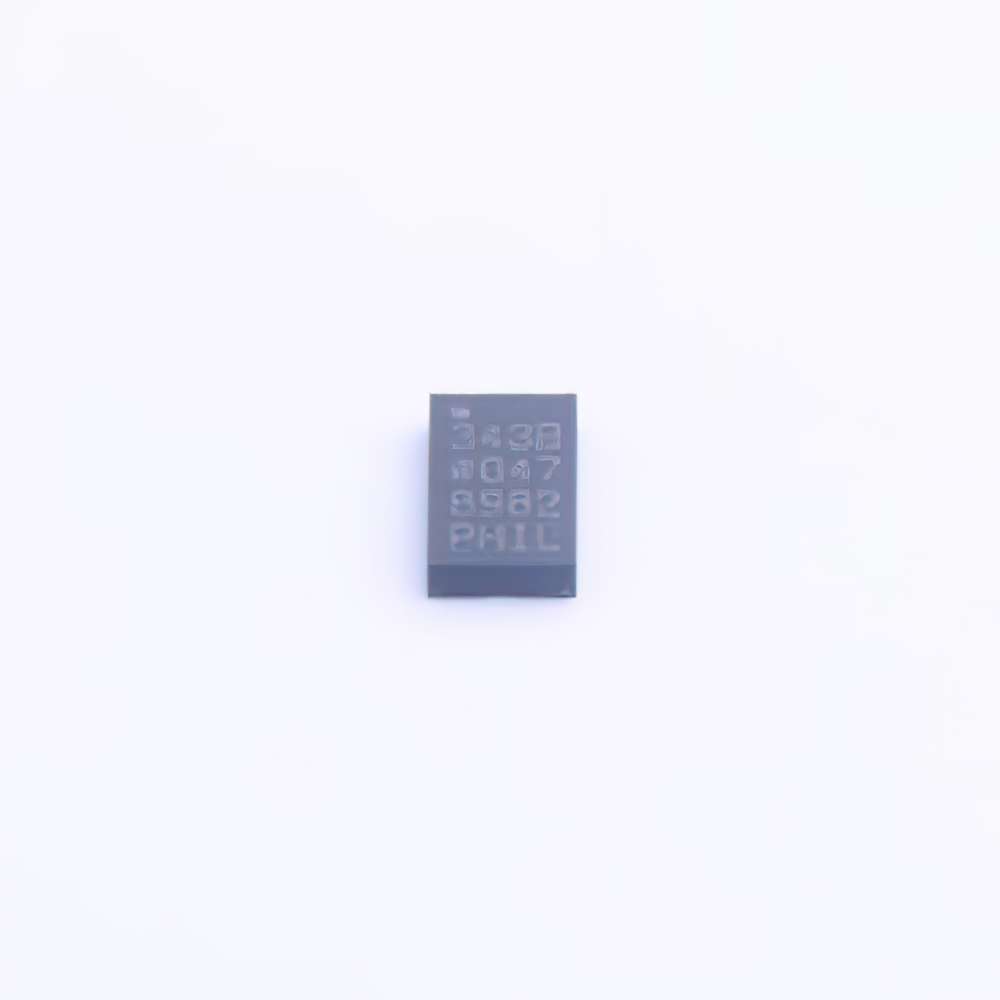

The ADXL343BCCZ is a low- Power 3-axis accelerometer from Analog Devices, used in a variety of applications such as motion sensing, vibration monitoring, and wearable devices. However, users often encounter issues related to the performance or behavior of the sensor, especially during integration with microcontrollers or embedded systems. In this section, we’ll discuss the most common problems and provide detailed troubleshooting steps to help you resolve them.
1.1 Issue: No Output Data or Inconsistent Readings
A common issue with the ADXL343BCCZ is receiving no output data or inconsistent readings from the accelerometer. This can be frustrating, especially if you’re trying to integrate it into a system that relies on precise measurements.
Possible Causes:
Incorrect Power Supply: If the sensor is not properly powered, it will not function correctly. Ensure that the voltage supply is within the recommended range of 2.0V to 3.6V.
Improper I2C/SPI Communication : The ADXL343BCCZ uses I2C or SPI protocols for communication. Issues with the wiring, pull-up resistors (for I2C), or incorrect clock settings could cause data transfer problems.
Uninitialized or Disabled Measurement Mode: The accelerometer must be configured correctly to start sampling data. If it’s not in the correct mode (e.g., measurement mode instead of standby mode), it won’t output any readings.
Troubleshooting Steps:
Check Power Supply: Use a multimeter to verify the voltage supplied to the ADXL343BCCZ. Ensure that the supply voltage is between 2.0V and 3.6V. If the supply voltage is too low or too high, the sensor may not function properly.
Inspect Communication Protocols: Double-check the wiring for I2C or SPI communication. If using I2C, ensure that the SDA and SCL lines are connected correctly, and check for the necessary pull-up resistors (typically 4.7kΩ) on both lines. For SPI, verify that the clock and chip select pins are correctly wired and that the SPI settings match the sensor’s requirements.
Initialize the Sensor: Ensure that you have initialized the ADXL343BCCZ properly. This involves configuring the measurement mode and setting the appropriate data rate. Use the ADXL343’s control registers to configure these settings via the communication protocol (I2C/SPI).
1.2 Issue: Accelerometer Data Not Matching Expectations (Calibration Errors)
The ADXL343BCCZ can sometimes produce data that doesn’t seem to match real-world expectations, such as constant offsets or incorrect ranges of acceleration. Calibration issues can arise from sensor misalignment, faulty wiring, or inadequate setup.
Possible Causes:
Lack of Calibration: The accelerometer might need to be calibrated to eliminate offsets and ensure accurate readings.
Incorrect Sensor Orientation: If the accelerometer is not oriented correctly within the system, the readings may appear skewed.
Improper Configuration: The sensor’s range and sensitivity might not be configured for the intended application, causing the output to fall outside the expected range.
Troubleshooting Steps:
Perform Calibration: The ADXL343BCCZ features a built-in offset register that you can use to calibrate the sensor. By reading the output when the sensor is in a known orientation (e.g., resting flat on a table), you can adjust the offset values in software. Alternatively, perform a manual calibration by applying known forces and recording the sensor’s output to compare against expected values.
Check Sensor Orientation: Make sure that the ADXL343BCCZ is aligned with the correct axes in your application. For example, if you’re measuring gravity, the X, Y, and Z axes should be aligned to measure the appropriate forces in your system.
Adjust Full-Scale Range: The ADXL343BCCZ allows you to adjust the full-scale range (±2g, ±4g, ±8g, ±16g) via the relevant control register. If your system requires high sensitivity or a larger dynamic range, adjust the settings to match your requirements.
1.3 Issue: Sensor Drift Over Time
Sensor drift is a phenomenon where the accelerometer’s output gradually shifts from its baseline, even when no external forces are acting on it. This can lead to inaccurate measurements over time, particularly in applications requiring precise long-term data.
Possible Causes:
Temperature Variations: The performance of accelerometers can degrade due to changes in ambient temperature.
Long-Term Offset Shifts: All Sensors experience some level of drift due to internal factors, such as aging of the sensor components.
Troubleshooting Steps:
Monitor Temperature Effects: If your application operates in varying temperatures, ensure that the ADXL343BCCZ’s temperature sensitivity is accounted for. The datasheet provides information on temperature coefficients, and you may need to apply software compensation based on temperature readings.
Implement Offset Correction: Periodically recalibrate the sensor to account for drift. Some systems use software-based methods, such as running a background calibration routine at regular intervals, to correct for small shifts in the baseline reading.
Use a Low-Noise Power Supply: Ensure that the sensor is powered by a stable and low-noise voltage regulator. Power supply noise can exacerbate drift issues.
1.4 Issue: Unresponsive or Frozen Sensor
Another problem users may encounter is a frozen or unresponsive ADXL343BCCZ. This typically occurs when the sensor fails to communicate with the host controller, making it appear as though it has stopped working entirely.
Possible Causes:
Reset or Communication Failure: The accelerometer may have experienced a communication breakdown with the microcontroller, often due to improper initialization or a failure in the I2C/SPI lines.
Incorrect Register Configuration: If the sensor’s registers are incorrectly configured, particularly the power control register, the device may be put into an unintended state (e.g., suspended mode), rendering it unresponsive.
Troubleshooting Steps:
Perform a Soft Reset: Most of the time, a soft reset can resolve communication issues. To reset the ADXL343BCCZ, write the appropriate reset bit in the power control register (0x2D). This will bring the sensor back to its default state.
Verify Communication Lines: Double-check the wiring and settings for the communication protocol. For I2C, ensure the master and slave addresses are correctly set, and for SPI, confirm that the clock polarity and phase settings match those expected by the ADXL343BCCZ.
Recheck Initialization Sequence: Review your initialization code to ensure the sensor is properly set up. Sometimes, a missed configuration step can result in a frozen state, so reinitialize the sensor step by step, ensuring all registers are properly configured.
Advanced Troubleshooting and Optimization for ADXL343BCCZ
While part one covered some of the most common issues you might encounter with the ADXL343BCCZ accelerometer, this section focuses on advanced troubleshooting and optimization techniques. Whether you’re aiming to maximize sensor performance, improve accuracy, or solve complex problems, these solutions will help you take your ADXL343BCCZ integration to the next level.
2.1 Issue: Inaccurate or Noisy Readings in High-Vibration Environments
The ADXL343BCCZ is designed to measure accelerations in various applications, including those subject to vibrations. However, in high-vibration environments, the sensor may produce noisy or inaccurate data due to external disturbances.
Possible Causes:
Environmental Noise: External vibrations or electromagnetic interference ( EMI ) may corrupt the sensor’s output, especially when dealing with high-frequency or high-amplitude signals.
Insufficient Filtering: The sensor might not be equipped with sufficient noise filtering to smooth out rapid, high-frequency variations.
Troubleshooting Steps:
Implement Low-Pass Filtering: One of the simplest ways to reduce noise in accelerometer readings is by using low-pass filters (either hardware or software) to smooth out high-frequency fluctuations. You can implement a digital filter in your microcontroller or use an analog low-pass filter (e.g., with a resistor and capacitor ) to reduce noise before it reaches the sensor.
Improve Sensor Mounting: The way the ADXL343BCCZ is mounted in your system can significantly affect its sensitivity to vibrations. Try to isolate the sensor from the main vibration sources by using damping materials or placing the sensor in an enclosure that reduces external noise.
Shield the Sensor: In environments with significant EMI, consider adding shielding (e.g., a conductive metal case or shield) around the sensor to prevent external electromagnetic fields from affecting the sensor’s performance.
2.2 Issue: Incorrect Data Alignment and Coordinate System Misinterpretation
The ADXL343BCCZ produces 3-axis acceleration data that corresponds to the X, Y, and Z axes of the sensor. However, in some cases, the data may appear misaligned or flipped, causing confusion when interpreting the results.
Possible Causes:
Coordinate System Misalignment: The sensor’s axes might not be aligned with the coordinate system used in your application.
Incorrect Register Settings: Some register settings (such as the data format or orientation) might cause unexpected behavior.
Troubleshooting Steps:
Verify Data Format: The ADXL343BCCZ supports different data formats. Verify that you are reading the data in the correct format, such as 10-bit or 13-bit data, and that you’re correctly interpreting the signed and unsigned values.
Correct the Orientation: If the sensor’s output is inverted or otherwise misaligned with your expected coordinate system, consider changing the sensor’s orientation or using software to perform a coordinate system transformation. This could involve flipping or rotating the X, Y, and Z outputs in your code to match the desired coordinate frame.
2.3 Issue: Power Consumption Optimization
While the ADXL343BCCZ is a low-power sensor, its power consumption can still be a concern in battery-powered or energy-sensitive applications.
Possible Causes:
Unnecessary Power States: The sensor may be consuming more power than necessary if it is constantly in measurement mode or has not been placed in an appropriate low-power state.
High Data Rate Settings: A high data rate can lead to higher power consumption.
Troubleshooting Steps:
Use Low-Power Modes: The ADXL343BCCZ features a number of low-power modes, including standby mode and sleep mode, which can significantly reduce power consumption. Ensure that the sensor is placed in the appropriate mode when not actively measuring acceleration.
Adjust Data Rate: Reducing the data rate to match your application’s requirements can help save power. The ADXL343BCCZ supports a range of data rates, from 0.1Hz to 3200Hz. Set the data rate to the lowest possible value that meets your needs to minimize power consumption.
2.4 Issue: Overcoming Interference from Other Sensors
In applications where multiple sensors are used (e.g., in a wearable or industrial setup), interference from other sensors or electronic devices can affect the accuracy of the ADXL343BCCZ.
Possible Causes:
Electromagnetic Interference (EMI): Nearby sensors or power circuits can emit electromagnetic waves that interfere with the accelerometer.
Signal Crosstalk: When using multiple I2C or SPI devices, signal crosstalk can corrupt data communication.
Troubleshooting Steps:
Use Shielding and Grounding: Proper grounding and shielding of both the ADXL343BCCZ and surrounding electronics will help prevent EMI. Ensure that all sensitive signal lines are shielded, and keep the sensor wires short and away from noisy components.
Use Separate Communication Buses: If using I2C or SPI, minimize interference by connecting each sensor to a separate communication bus or using devices with unique addresses to avoid crosstalk.
By following the troubleshooting steps outlined in this guide, you can address a wide range of issues with the ADXL343BCCZ accelerometer. Whether you’re facing problems with data accuracy, sensor calibration, communication issues, or power consumption, these solutions will help you resolve them effectively. Understanding the root causes of these issues and applying the appropriate fixes will ensure that your ADXL343BCCZ accelerometer performs optimally, making your application more reliable and accurate.
