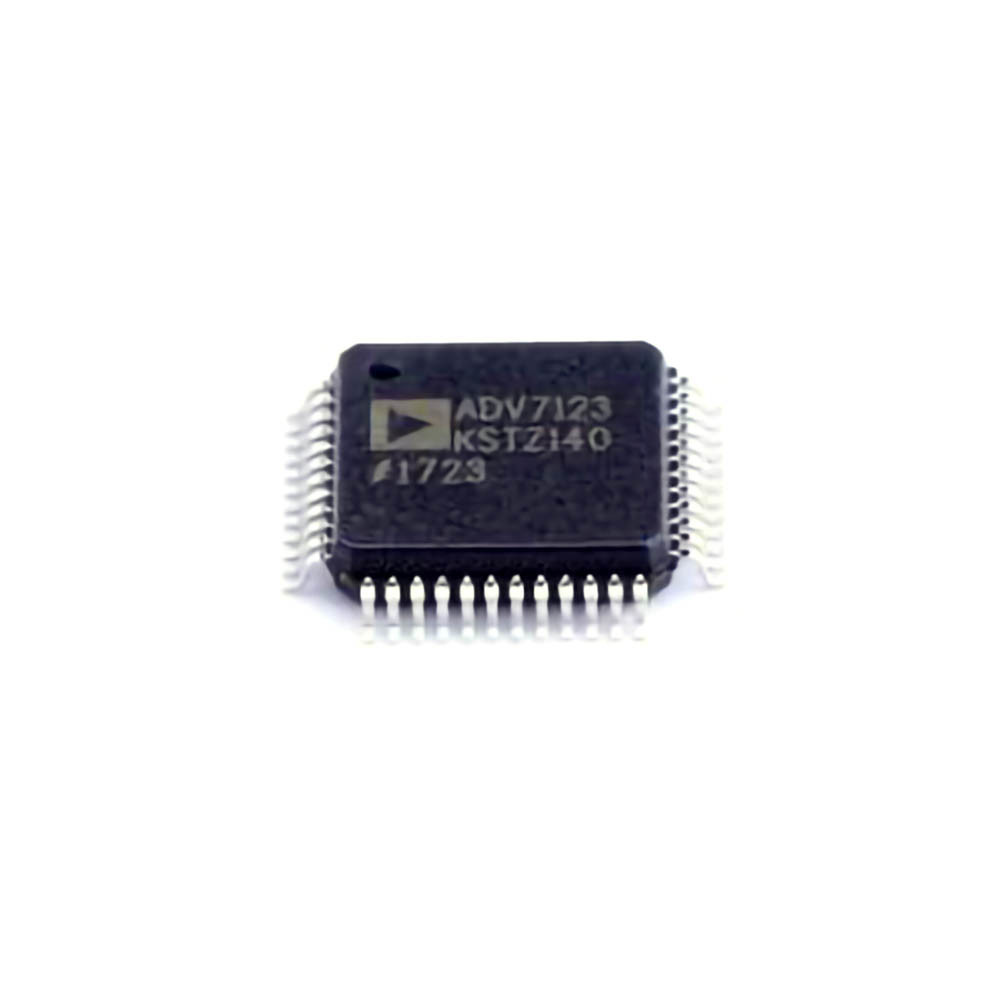

The ADI ADV7123KSTZ140 is a high-performance, triple 10-bit digital-to-analog converter (DAC) often used in a variety of video applications. However, like any complex piece of hardware, users may encounter issues with performance, stability, or compatibility. This article delves into common troubleshooting steps and offers practical solutions for resolving these issues effectively, ensuring that your ADV7123KSTZ140 delivers optimal performance.
ADV7123KSTZ140, troubleshooting, digital-to-analog converter, DAC, video applications, common issues, solutions, performance, stability
Understanding the ADV7123KSTZ140 and Common Troubleshooting Issues
The ADV7123KSTZ140 is a high-performance DAC designed primarily for video applications, such as graphics cards, displays, and video processing units. Its high-resolution output allows for precise color reproduction and high-quality image rendering, making it a popular choice for applications that demand high levels of visual fidelity.
However, like any piece of sophisticated electronic equipment, the ADV7123KSTZ140 can encounter issues that affect its performance. Troubleshooting these issues effectively requires a solid understanding of both the chip’s capabilities and the common causes of failure or malfunction.
1. Power Supply Issues
The first area to check when troubleshooting the ADV7123KSTZ140 is the power supply. The DAC requires a stable and noise-free power supply to function correctly. A fluctuating or insufficient supply voltage can cause the chip to output distorted or no video signal.
Solution:
Check Voltage Levels: Ensure that the voltage levels on the VDD and VSS pins are within the specified ranges. The ADV7123KSTZ140 operates on a 5V supply, so verify that the input voltage is stable and regulated.
Power Supply Decoupling: Proper decoupling capacitor s are crucial to avoid noise and voltage dips that could impact the DAC’s performance. Ensure that the decoupling capacitors are of the correct value and placed as close to the power pins as possible.
Monitor Power Sequencing: If the DAC is part of a larger system, ensure that the power-up sequence is correct. Some chips may not function properly if power is applied to different pins in the wrong order.
2. Signal Integrity Issues
The ADV7123KSTZ140 outputs high-frequency signals, and poor signal integrity can cause pixel errors, screen flickering, or complete signal loss. Signal integrity problems can arise from a variety of factors, such as noisy environments, improper grounding, or poor PCB layout.
Solution:
Proper Grounding: Ensure that the ground plane on the PCB is continuous and solid. A poor ground connection can introduce noise and cause signal instability. Use multiple ground vias to connect the ground plane to the chip.
PCB Layout Optimization: Pay attention to the layout of the PCB to minimize signal traces, particularly for high-frequency outputs. Short and direct signal paths help maintain signal quality. Avoid sharp corners and use proper trace width to handle high-speed signals without distortion.
Impedance Matching: If the DAC is driving long signal cables or high-speed circuits, ensure impedance matching to prevent reflections that could degrade the signal.
3. Incorrect Input Data Format or Timing
The ADV7123KSTZ140 accepts digital input data in specific formats, and the timing must be correctly synchronized to ensure accurate data conversion. Incorrect data formatting or timing mismatches can result in poor video output, such as incorrect colors, horizontal/vertical artifacts, or completely garbled images.
Solution:
Verify Input Data Format: Check that the input data meets the requirements specified in the datasheet. The ADV7123KSTZ140 expects 10-bit RGB or YCbCr input, so ensure the data being fed into the DAC is in the correct format. Misalignment or incorrect bit-ordering can lead to improper color rendering.
Timing Signals: The timing signals such as HSYNC and VSYNC must be provided in sync with the video frame rate and pixel clock. Misaligned or improperly timed signals may cause visual artifacts or even prevent the DAC from functioning altogether. Verify that the pixel clock and sync signals are accurate and within the recommended operating conditions.
4. Overheating and Thermal Management
Like many high-performance chips, the ADV7123KSTZ140 generates heat during operation. If the chip’s temperature exceeds its rated limits, it may malfunction or even sustain permanent damage. Overheating can cause the chip to slow down or output erroneous video signals.
Solution:
Heat Sinking: Use appropriate heat sinks or thermal pads to dissipate heat. Depending on the power output and usage scenario, an active cooling solution such as a fan may also be necessary.
Thermal Monitoring: Install temperature sensors or use thermal cameras to monitor the chip’s temperature. If the chip is operating at high temperatures, consider improving airflow around the chip or reducing power consumption through clock gating or other power management techniques.
Advanced Troubleshooting and Long-Term Solutions for the ADV7123KSTZ140
While the basic troubleshooting steps outlined above should resolve most common issues with the ADV7123KSTZ140, there are advanced techniques and long-term solutions that can help ensure the chip remains reliable and performs optimally throughout its lifespan.
5. Software Configuration and Control
The ADV7123KSTZ140 features a variety of control pins that allow users to configure its behavior, including reference voltage selection, output voltage range, and synchronization settings. Incorrect software configuration can lead to poor image quality or complete output failure.
Solution:
Check Control Registers: Verify that all control registers are configured correctly for the specific application. Pay particular attention to the reference voltage selection and output voltage range, as these settings can drastically impact image brightness and color fidelity.
Reset and Reconfigure: If strange behavior persists, try performing a full reset of the chip to restore it to its default state. After resetting, reconfigure the chip step-by-step while monitoring the output to ensure each setting is applied correctly.
6. Addressing Compatibility Issues
The ADV7123KSTZ140 is a versatile chip, but compatibility issues can arise when integrating it into a system with other components, especially if those components have conflicting signal requirements or timing constraints.
Solution:
Check Compatibility with Other Devices: Ensure that the ADV7123KSTZ140 is compatible with other components in your system, particularly the input signal source and output display. Some devices may require additional signal conditioning or level-shifting to match the ADV7123KSTZ140’s voltage levels or data format.
Use External Buffers or Drivers : If you are experiencing signal degradation, consider using external buffers or drivers to strengthen the signals before they reach the DAC. This is especially helpful when driving long cables or high-capacitance load devices.
7. Long-Term Maintenance and Reliability
Once the initial setup and troubleshooting have been completed, it’s essential to consider long-term maintenance to ensure that the ADV7123KSTZ140 continues to function properly throughout its lifespan.
Solution:
Routine Inspection: Periodically inspect the DAC for signs of wear or damage, especially if the device operates in harsh environments with temperature fluctuations or excessive humidity. Check for any physical signs of overheating or thermal stress, such as discoloration or deformation on the PCB or component.
Keep Firmware Updated: Ensure that the firmware controlling the ADV7123KSTZ140 is up to date. Manufacturers may release firmware updates that improve stability, add new features, or fix bugs that could be affecting the chip’s performance.
Preventative Maintenance: Implement preventative maintenance practices such as cleaning connectors, verifying the integrity of external signal sources, and checking that no components have come loose over time.
8. Contacting Technical Support
If you’ve exhausted all troubleshooting steps and the ADV7123KSTZ140 still isn’t functioning as expected, it may be time to contact the manufacturer’s technical support team. Provide them with as much information as possible about your setup, the issues you’re encountering, and the steps you’ve already taken to resolve the problem. Often, the manufacturer will be able to offer advanced diagnostic tools or replace faulty parts if necessary.
In conclusion, troubleshooting the ADV7123KSTZ140 requires a systematic approach, careful attention to detail, and an understanding of both the hardware and software aspects of the DAC. By following the troubleshooting steps outlined above, you can effectively resolve most issues and ensure the DAC’s long-term reliability. Whether you are dealing with power issues, signal integrity, or software configuration, each solution provides a clear path to restoring optimal performance.
