Understanding the ACS712ELCTR-05B-T Current Sensor and Common Issues

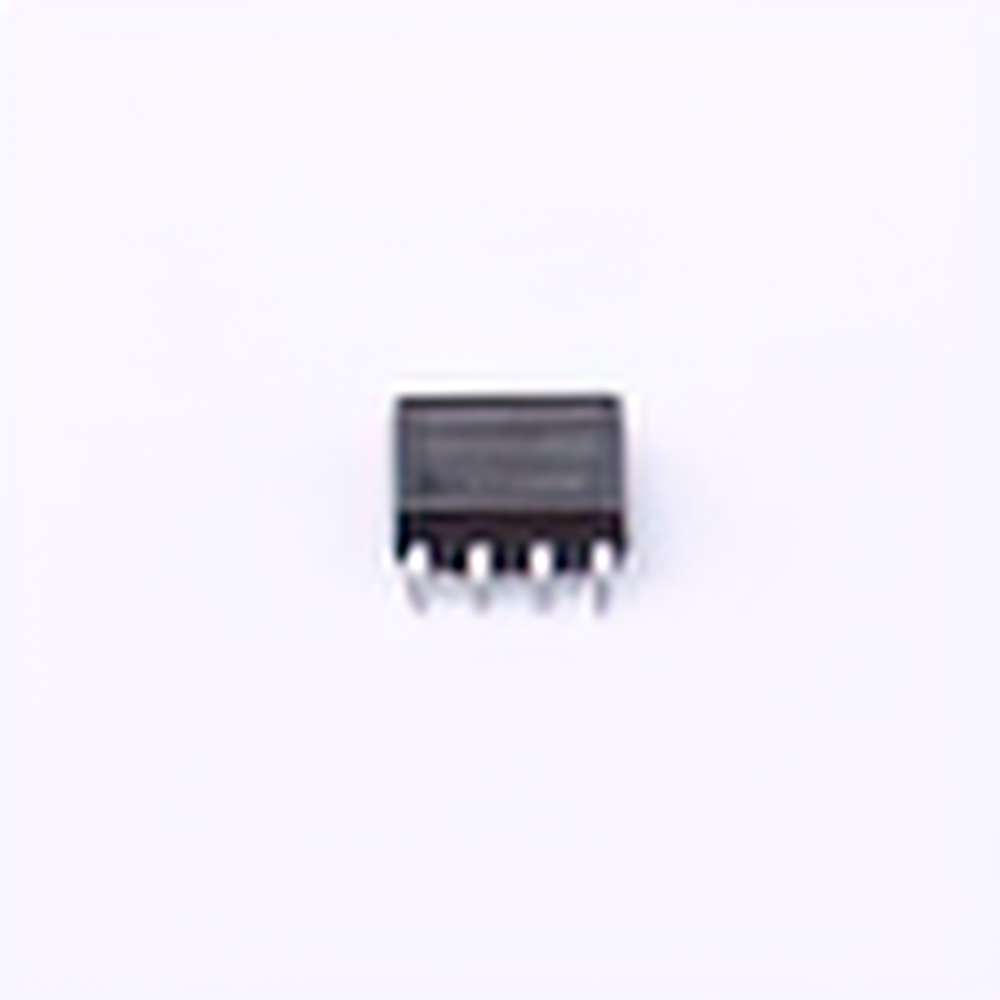

The ACS712ELCTR-05B-T is a current sensor designed to provide accurate, real-time current measurements for a wide range of applications. It is often used in Power monitoring systems, battery charging circuits, and other electronic devices requiring precise current measurement. This component works based on the Hall Effect, converting the current flowing through a conductor into a voltage that can be easily measured.
However, like any electronic component, the ACS712ELCTR-05B-T may experience issues that affect its performance. Understanding these issues and knowing how to troubleshoot them can save time, reduce frustration, and ensure that your sensor provides accurate readings. Below, we will explore the most common problems that users encounter with this current sensor and provide practical solutions.
1. Incorrect Output Voltage or Offset Drift
One of the most common issues with the ACS712ELCTR-05B-T is incorrect or unstable output voltage. The sensor provides a voltage output that corresponds to the current being measured. However, if the output voltage is not in the expected range or fluctuates unexpectedly, it can lead to inaccurate current measurements.
Possible Causes:
Power Supply Fluctuations: The ACS712 sensor operates from a 5V supply, and any fluctuations or noise in the power supply can affect the sensor's output. Ensure the power supply is stable and clean, preferably with low ripple.
Incorrect Reference Voltage: The sensor’s output is referenced to its supply voltage (Vcc). Any instability or incorrect voltage levels can lead to drift in the sensor’s output.
Grounding Issues: A poor ground connection can cause fluctuating output. Ensure all grounds in your system are properly connected.
Solution:
To resolve this issue, first check the power supply for stability and noise. Use a multimeter or oscilloscope to verify that the 5V supply is clean and free from fluctuations. If noise is present, consider adding decoupling capacitor s near the sensor to filter out high-frequency noise. Also, ensure that the sensor is correctly grounded, and double-check all wiring to avoid loose connections.
2. Wrong Current Direction or Polarity Reversal
Another common issue with the ACS712 sensor is measuring current in the wrong direction or experiencing reversed polarity in the current input. This may cause the sensor to report negative current when it should be positive, or vice versa.
Possible Causes:
Incorrect Wiring: If the current path is connected in reverse, the sensor may produce the wrong polarity output.
Orientation of the Sensor: The ACS712 is sensitive to the direction of current flow through the conductor. If the sensor is not oriented correctly with respect to the current direction, it can output reversed readings.
Solution:
Ensure the current flow direction is aligned with the sensor’s input specifications. The ACS712 has a specific orientation for the current to flow through the conductor, and incorrect orientation can result in reversed polarity readings. Review the datasheet and verify that the sensor is placed in the correct position in the circuit. If the current direction is reversed, simply reorient the sensor to match the flow of current.
3. Noise and Interference in Measurements
Since the ACS712 uses the Hall Effect for current sensing, it can be susceptible to electromagnetic interference ( EMI ) or noise from nearby components. This can result in fluctuating or inaccurate readings, which can significantly affect the reliability of the system.
Possible Causes:
Electromagnetic Interference (EMI): Motors, switching power supplies, or high-frequency components can generate EMI that affects the ACS712’s performance.
Long Wires or Poor Shielding: Long connection wires or unshielded cables can act as antenna s and pick up stray electromagnetic noise, which may affect the current sensing.
Solution:
To mitigate noise, try to minimize the length of the wires between the sensor and the microcontroller. Use twisted pair cables for connections to reduce EMI, and consider using shielded cables in noisy environments. If EMI is severe, you can use ferrite beads or inductive filters to suppress high-frequency noise. Additionally, place the ACS712 as far as possible from components known to generate noise, such as motors or high-power switching devices.
Advanced Troubleshooting Tips and Calibration
Once you’ve resolved the most common issues, it’s time to dive into more advanced troubleshooting and calibration techniques to ensure that your ACS712ELCTR-05B-T sensor provides highly accurate and reliable current measurements.
4. Zero Current Calibration (Offset Calibration)
One of the critical factors in achieving accurate readings with the ACS712 is ensuring that the sensor is properly calibrated when no current is flowing. This is known as zero-current calibration or offset calibration. If this calibration is off, you may notice incorrect readings even when no current is present.
Possible Causes:
Initial Offset Error: The ACS712 might have an inherent offset that could drift over time due to temperature or power supply fluctuations.
Measurement Conditions: If the sensor is not calibrated when no current is flowing, the output may not be centered at the expected zero point.
Solution:
To perform a zero-current calibration, start by ensuring that no current is flowing through the sensor (disconnect any loads). Measure the output voltage with a multimeter or oscilloscope. The ACS712 should ideally output 2.5V at zero current. If the output is significantly different, you may need to adjust the offset in your measurement code or add an offset correction circuit. In some cases, adding a small capacitor (e.g., 0.1 µF) between the sensor’s output and ground can help stabilize the output and reduce fluctuations.
5. Improper Range of Current Measurement
The ACS712ELCTR-05B-T has a specific current measurement range, typically ±5A, with a sensitivity of 185mV per amp. If the current exceeds the sensor's rated range, it can cause clipping of the output, leading to inaccurate or saturated readings.
Possible Causes:
Overcurrent Conditions: If the current exceeds the rated range, the sensor may no longer provide linear output, and the readings will become unreliable.
Incorrect Sensor Model: Ensure you are using the correct model for your application. The ACS712 comes in several versions with different current ranges, such as ±5A, ±20A, and ±30A.
Solution:
Make sure that the current you are measuring is within the sensor’s rated range. If your system handles higher currents, consider using a sensor with a higher current range (e.g., the ACS712ELCTR-20B or ACS712ELCTR-30B). If you need to measure high currents accurately, another alternative is to use an external current shunt resistor with a differential amplifier to increase measurement accuracy.
6. Temperature Effects and Compensation
The performance of the ACS712 sensor can be affected by temperature changes. Extreme heat or cold may influence the sensor’s output voltage, leading to inaccuracies in the current measurements.
Possible Causes:
Thermal Drift: The sensor's internal circuitry may be susceptible to changes in temperature, which can cause the output to shift slightly over time.
Environmental Conditions: If the sensor is placed in an environment with high temperature fluctuations, this could affect the accuracy of readings.
Solution:
To mitigate temperature effects, consider placing the sensor in a temperature-controlled environment or adding temperature compensation to your system. If necessary, calibrate the sensor at different temperatures to account for variations in the output voltage. Additionally, using an external temperature sensor and incorporating its readings into your measurements can help correct for thermal drift.
Conclusion
The ACS712ELCTR-05B-T is a powerful and reliable current sensor for various applications, but like all sensors, it can encounter issues that impact its performance. By following the troubleshooting tips and solutions outlined above, you can ensure that your sensor provides accurate and stable current measurements, helping you build more reliable and efficient electronic systems. Remember, proper calibration, stable power supplies, and careful attention to wiring and orientation are key to maximizing the accuracy and longevity of your ACS712 sensor.
